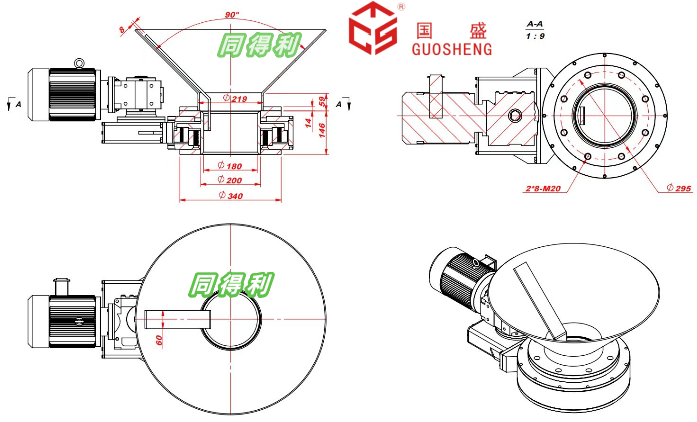

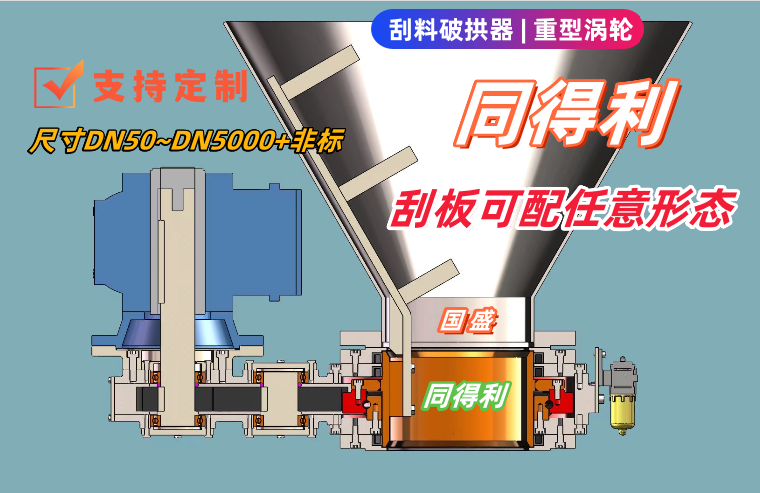

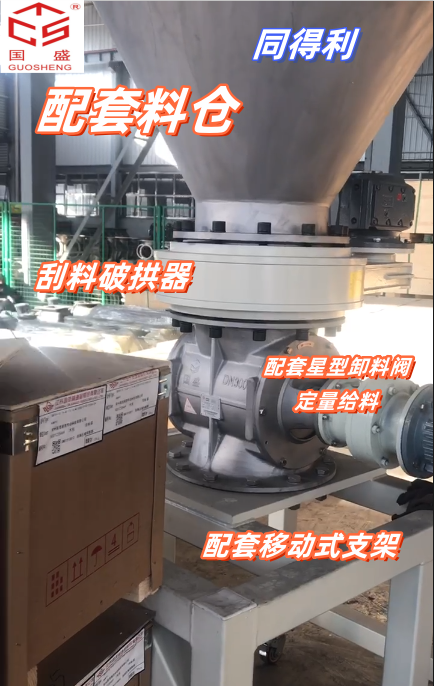

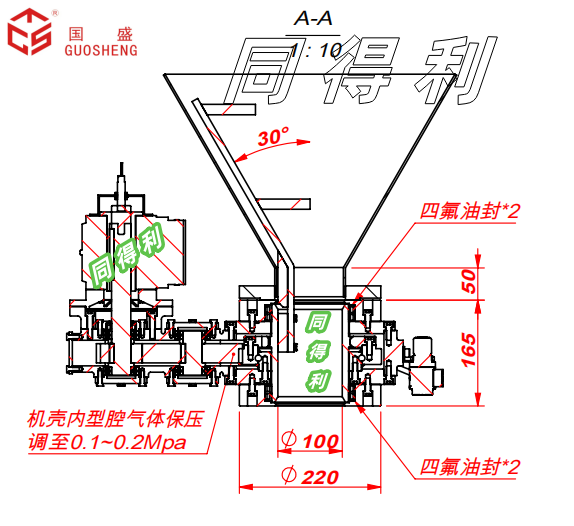

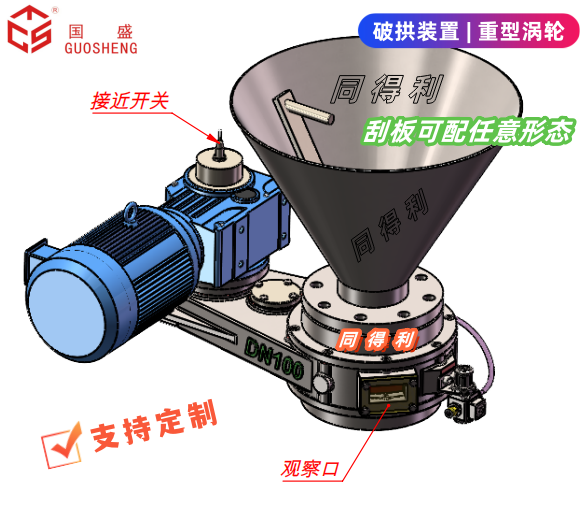

蜗杆重载破拱器(料仓刮料破拱器)常用于粉末、颗粒类物料的料仓，解决起拱、架桥、黏壁导致的堵塞和不下料问题。蜗杆重载破拱器由电机带动蜗杆旋转，蜗杆与蜗轮啮合，通过蜗轮蜗杆的传动放大扭矩，再由蜗轮带动内圈，内圈带动刮板在料仓内做圆周旋转运动，通过机械刮削和推力破坏物料结拱结构，让物料恢复流动‌，从而实现破拱。常见尺寸DN100~DN1000.其他尺寸均可定制生产，如小型的DN50.或大型DN1200.DN1300均可非标定制。常见材质钛材、304、310、316、碳钢、内衬陶瓷/聚氨酯、喷涂碳化钨、陶瓷等。       　　蜗杆重载破拱器结构组成：　　驱动电机‌：提供旋转动力。电机、减速机选择：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友，或客户指定品牌，防爆电机可选。　　‌传动机构‌：把电机动力传递给刮板，常见的是齿轮传动或涡杆传动。涡杆传动方式的扭矩更大、能耗相对更低。　　‌刮板‌：直接接触物料的核心部件，绕仓壁旋转完成破拱动作。‌‌F型刮板样式，一字型/直板型，双刮板样式以及上下刮板样式，可根据料仓样式定制角度，或客户指定样式。　　密封方式：采用机械密封和气密封多种密封方式，防止物料进入传动装置。　　料仓堵料架桥常见原因：　　1、粉体物料空隙率过高‌：粉体因空气滞留，经挤压后产生黏性结块，形成天然拱桥。　　2、颗粒形状不规则或粒径不均‌：大块物料与细粉混合时容易相互卡位搭桥;粉碎料大小不一、棱角尖锐，流动性远差于全新颗粒料。　　3、含水率高、易吸潮结块‌：水分超过5%时流动性明显下降，湿度每增加2%，下料效率可能下降30%。雨季或空气湿度大时尤其明显，物料表面发粘、抱团结块，在仓内形成拱桥。　　4、高黏附性物料‌：如黏土、湿煤等容易黏附仓壁形成结拱，长期堆积后越压越实。　　料仓刮料破拱器尺寸：DN50~DN1000或非标定制。　　刮料破拱器材质：钛材，整机不锈钢系列304.316L，2205.904.与物料接触部分衬陶瓷、四氟，喷涂陶瓷、喷涂特氟龙，喷涂碳化钨等，与物料接触部分不锈钢，碳钢等。　　部分客户需求：　　锂电负极材料用蜗杆破拱器，尺寸DN200.防止物料搭桥，工频电机防护等级IP55(1.1kW,2.3A，约10RPM)SUS304.内表面和搅拌桨叶镜面抛光至Ra≤0.3m，外表面亚光处理。电机防护等级IP55:安徽皖南品牌，新国标二级能效IE4.减速机:为国贸品牌。　　物料：化工行业催化剂。DN350  转速5.1r/min，绝缘等级F，B级温升，防护等级IP65.防爆：隔爆 EXdⅡCT4.电机采用南阳防爆、ABB或佳木斯。　　物料：重质碳酸钙粉体，会出现架桥现象，需求破拱，连接法兰式DN300.物料接触部分不锈钢304.西门子变频电机，国茂减速机。　　物料：磷酸一铵，刮料破拱器规格型号： DN350 PN10;传动方式：直连式，整阀采用二代全齿轮传动结构，材质要求：304不锈钢 + 接触面4K镜面处理;物料接触部位精抛光;刮板F型;密封形式： 气密封;电机3kw SEW;减速机国茂。　　破拱器+星型卸料阀，化工粉料仓用，蜗杆重型刮料破拱器，DN500. PN10.材质:316L不锈钢，配电机、减速机及配套法兰，电机为ABB，减速机为国茂。破拱器下方配套星型卸料阀，密封锁气和定量卸料，转速:42r/min，材质316L，电机一级能效。　　物料：矿粉类，出现架桥现象，需要破拱，破拱器尺寸DN400.整体不锈钢材质。二硫化钼，硫化铋，硫化亚锡，硫化铜，硫化亚铁，硫化锑，玄武岩纤维，萤石，重质氧化镁，硫酸钡，锆英石。　　物料：农药，草甘膦为主，材质不锈钢304.DN250.刮板破拱器密封性能良好，气密封，国茂减速机，皖南电机。　　物料：橡胶型粉体颗粒，刮料器尺寸DN250 PN10 材质304.要求密封良好，防止物料细颗粒进入。2.2KW防爆电机，品牌皖南/南阳/江苏大中等。减速机为一线品牌，输出转速为3-5r/min，输出扭矩不小于2390Nm。　　旋转破拱器  刮壁式破拱装置  破拱机 旋转破拱器 破拱阀 机械式破拱装置  料仓破拱器 料仓破拱装置 旋转式料仓破拱器  不锈钢破拱器 304破拱装置 304破拱器  破拱机总装模块(齿轮型)  旋转防爆刮料破拱器  粉尘防爆破拱器  精抛光破拱器  料仓破拱  机械旋转破拱阀  卸料破拱阀　　我公司常州同得利专业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、YJD型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。         《扫二维码-添加 陈经理 微信-咨询刮料破拱器》　　Worm heavy-duty arch breaker (silo scraper arch breaker) is commonly used in powder and granular material silos to solve the problems of blockage and non discharge caused by arching, bridging, and wall sticking. The worm heavy-duty arch breaker is driven by a motor to rotate the worm, which meshes with the worm gear. The torque is amplified through the transmission of the worm gear, and then the inner ring is driven by the worm gear. The inner ring drives the scraper to rotate in a circular motion inside the silo. Through mechanical scraping and thrust, the arch structure of the material is destroyed, allowing the material to resume flow and achieve arch breaking. Common sizes range from DN100 to DN1000. and other sizes can be customized for production, such as small sizes like DN50. or large sizes like DN1200 and DN1300. which can be customized non-standard. Common materials include titanium, 304. 310. 316. carbon steel, ceramic/polyurethane lining, sprayed tungsten carbide, ceramics, etc.　　Structure composition of worm heavy-duty arch breaker:　　Drive motor: Provides rotational power. Motor and reducer selection: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, or customer specified brand, explosion-proof motor is optional.　　Transmission mechanism: It transmits the power of the motor to the scraper, commonly through gear transmission or vortex rod transmission. The vortex rod transmission method has greater torque and relatively lower energy consumption.　　Scraper: The core component that directly contacts the material and rotates around the warehouse wall to complete the arch breaking action. F-shaped scraper styles, including straight/straight plate, double scraper styles, and upper and lower scraper styles, can be customized according to the silo style or customer specified styles.　　Sealing method: Multiple sealing methods, including mechanical sealing and gas sealing, are used to prevent materials from entering the transmission device.　　Common reasons for material blockage and bridging in silos:　　1. High porosity of powder materials: Due to air retention, the powder forms sticky lumps after compression, forming a natural arch bridge.　　2. Irregular particle shape or uneven particle size: When large pieces of material are mixed with fine powder, they are prone to jamming and bridging each other; The crushed materials vary in size, have sharp edges, and have much poorer flowability than brand new granular materials.　　3. High moisture content, prone to moisture absorption and agglomeration: When the moisture content exceeds 5%, the flowability significantly decreases, and for every 2% increase in humidity, the cutting efficiency may decrease by 30%. Especially during the rainy season or when the air humidity is high, the material surface becomes sticky, clumped, and forms an arch bridge inside the warehouse.　　4. Highly adhesive materials, such as clay and wet coal, are prone to sticking to the warehouse walls and forming arches. After long-term accumulation, they become denser and more compacted.　　Size of silo scraper arch breaker: DN50~DN1000 or customized non-standard.　　Scraper and arch breaker material: titanium material, stainless steel series 304.316L, 2205904 for the whole machine. The parts in contact with the material are lined with ceramics, PTFE, sprayed with ceramics, sprayed with PTFE, sprayed with tungsten carbide, etc. The parts in contact with the material are made of stainless steel, carbon steel, etc.　　Partial customer requirements:　　The lithium battery negative electrode material uses a worm arch breaker with a size of DN200 to prevent material bridging. The protection level of the power frequency motor is IP55 (1.1kW, 2.3A, about 10RPM) SUS304. The inner surface and stirring blade are mirror polished to Ra ≤ 0.3m, and the outer surface is matte treated. Motor protection level IP55: Anhui Wannan brand, new national standard second level energy efficiency IE4. reducer: for Guomao brand.　　Material: Catalyst for the chemical industry. DN350 speed 5.1r/min, insulation level F, B-level temperature rise, protection level IP65. explosion-proof: EXd Ⅱ CT4. motor adopts Nanyang explosion-proof, ABB or Jiamusi.　　Material: Heavy calcium carbonate powder, prone to bridging phenomenon, requires arch breaking, flange type DN300 connection, material contact part made of stainless steel 304. Siemens variable frequency motor, Guomao reducer.　　Material: Monoammonium phosphate, scraper arch breaker specification and model: DN350 PN10; Transmission mode: direct connection, the whole valve adopts a second-generation full gear transmission structure, material requirements: 304 stainless steel+contact surface 4K mirror treatment; Fine polishing of material contact areas; Scraper F-type; Sealing form: airtight seal; Motor 3kw SEW; Gearbox Guomao.　　Arch breaker+star shaped discharge valve, used for chemical powder silo, worm heavy-duty scraper arch breaker, DN500. PN10. Material: 316L stainless steel, equipped with motor, reducer and matching flange. The motor is ABB and the reducer is Guomao. Underneath the arch breaker, there is a star shaped discharge valve that seals and locks the air for quantitative discharge. The speed is 42r/min, the material is 316L, and the motor has a first level energy efficiency.　　Material: Mineral powder, bridging phenomenon occurs, requiring arch breaking, arch breaking device size DN400. overall stainless steel material. Molybdenum disulfide, bismuth sulfide, stannous sulfide, copper sulfide, ferrous sulfide, antimony sulfide, basalt fiber, fluorite, heavy magnesium oxide, barium sulfate, zircon.　　Materials: Pesticides, mainly glyphosate, made of stainless steel 304. DN250. Scraper arch breaker has good sealing performance, airtight seal, Guomao reducer, Wannan motor.　　Material: Rubber type powder particles, scraper size DN250 PN10 material 304. requiring good sealing to prevent fine particles from entering. 2.2KW explosion-proof motor, brand Wannan/Nanyang/Jiangsu Dazhong. The reducer is a first tier brand, with an output speed of 3-5r/min and an output torque of not less than 2390Nm.　　Our company, Changzhou Tongdeli, specializes in the production of (B) GFY and YJD series air shut-off fans, star shaped unloaders, DS series electric air locks, YJD type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high-temperature and high-pressure rotary valves, high-temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, dispersing and crushing valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
