旋风卸料阀，物料名称：磷酸铁锂;堆积比重:0.6g/cm3.阀体材质304.阀体内部喷涂纳米陶瓷，转子材质304.转子容积：6L，转子叶片数量6片，转子与外壳间隙0.3mm;转子表面处理：喷涂纳米陶瓷0.3mm;端盖材质304.回转阀两端密封形式：迷宫气密封，填料密封;轴承NSK;轴端.密封.外露保护罩需要304.传动方式直连，物料接触涂层喷涂纳米陶瓷0.3mm;电机：皖南0.75KW-380V-50Hz，不含铜锌;减速机：国茂，不含铜锌。　　主要结构：外壳金属;物料接触部分：内衬陶瓷8-10mm/喷涂陶瓷0.15-0.3mm/刷陶瓷2-3mm。陶瓷种类：陶瓷粉、纳米陶瓷、氧化铝陶瓷、碳化硅陶瓷、氮化硅陶瓷、氮化铝陶瓷、六方氮化硼陶瓷等。　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、磷酸铁锂中间体等;火力发电厂;冶金;矿山;食品;制药等原料。　　特点：耐高温、耐磨耐冲刷、耐腐蚀、自洁防卡料、使用寿命长。　　技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型旋转阀，目前有陶瓷星型旋转阀专利。　　尺寸：DN50 ~ DN2000.方口150*150 ~ 5000*4000.或非标定制。　　电机、减速机：皖南、卧龙、国茂、西门子、ABB、SEW、Flender、NORD、住友、防爆型可选，或客户指定品牌。　　旋转阀喷涂纳米陶瓷主要作用：　　1、防金属接触：锂电行业禁铜锌，防止输送过程中与金属接触。　　2、耐磨耐冲刷：陶瓷层硬度极高(洛氏硬度可达 HRC90.仅次于金刚石)，能有效抵抗粉体、颗粒物料高速通过时的冲刷和磨损。对比普通金属阀，陶瓷密封阀的寿命通常能延长 ‌3 到 6倍‌，甚至更久。　　3、耐腐蚀：陶瓷材料化学性质稳定，对酸、碱、盐等腐蚀性介质有很强的耐受性，特别适合化工、脱硫等腐蚀性环境。　　4、耐高温：喷涂纳米陶瓷阀适用温度范围≤400℃‌，更高温度需要选择其他陶瓷材质。　　5、转动更顺滑‌：陶瓷表面能低，摩擦系数小(干态约0.15-0.25)，物料不容易粘附，扭矩更平稳。　　6、自洁防卡料‌：启闭时阀板能自旋转研磨，把密封面上的积灰磨掉，所以不卡灰、不积料，启闭灵活。　　7、密封可靠‌：陶瓷件精磨后贴合好，可实现硬密封，泄漏量低;阀体内腔无积料死角。　　陶瓷旋转阀常见应用行业：　　锂电池：锂电正极材料，锂电负极材料，磷酸铁锂，三元材料，硅料，锂电粉料，碳酸锂，石墨。　　化工行业：密封材料、粉末涂料等有腐蚀性或高温。　　工程塑料(聚乙醛、聚酰胺、聚氨酯等)的聚合与反应。　　塑料(环氧树脂、聚酰胺、聚酯等)的混炼。　　造纸行业：粉料、块料、纸浆。　　火力发电厂干灰系统‌：做仓泵的进料阀、出料阀、耐高温、耐磨损。　　冶炼行业：各种类型的炉渣。　　‌食品、药材、原料输送‌：内衬/喷涂陶瓷还能避免金属接触物料，保持洁净度。　　制药‌：散状物料输送和有磨损干粉尘介质。　　气力输送系统‌：用于干灰、粉煤、矿渣、铁砂、氧化铝粉、颗粒物料等的输送。　　太多行业和物料可以用，就不一一列举了。　　部分客户需求：　　物料：锂电原材料，规格：DN350.主体材质：SUS304.转子：喷涂氧化铝陶瓷200um(热喷)。内表面处理：304喷涂氧化铝陶瓷 200um(热喷)，外表面处理：喷砂。防爆：非防爆，参考功率：2.2kw，变频(变频器要求重载矢量型)，电机品牌：皖南，带轴端气密封及相关配件，耐温140℃。　　物料：锂电正极材料，旋转阀规格：DN450.主体材质：SUS304;转子：喷涂氧化铝陶瓷200um(热喷);内表面处理：304喷涂氧化铝陶瓷 200um(热喷);外表面处理：喷砂;防爆：非防爆;参考功率：3.0kw，变频(变频器要求重载矢量型);电机品牌：皖南;带轴端气密封及相关配件;耐温120℃;间隙要求：径向0.08-0.12mm，轴向0.08-0.10mm。　　锂电进料星型卸料阀：电机功率约1.5KW，变频调速电机，型号规格：DN300.法兰连接(压力等级：PN10)材质：与物料接触304+纳米陶瓷涂层(厚度：喷涂工艺0.3mm以上，冷刷工艺0.6mm);密封：填料+气密封;下料速度：1-10m³/h介质：锂电粉料，粒径：>1mm，占比约70%，常温。　　物料：多晶硅粉，粉体，带细小颗粒，DN100.容积0.6L/转，工作温度60-100℃，物料粒度：20-300μm，物料处理量400-500Kg，输送压力≥0.5Mpa，回转阀填充系数0.6-0.7.回转阀转速29R/min，端盖材质304.转子材质304.外壳材质304(内衬陶瓷)，端盖形式：外置轴承式端盖气密封，主轴密闭做成硬密封，电机功率1.5kw-380-50hz，齿轮减速机国茂GKAF-59-48.89.　　物科:氢溴酸粉末状，酸浓度40%~48%，堆比重3.每小时下科量100公斤，常温常压。材质304 DN150.PN10.与物料接触处喷涂氧化铝陶瓷，转速25RPI，转子容积2/转，工频电机0.75KW-4P-B5.　　公称通径DN300;公称压力1.0MPa;介质:除尘设备焦粉;工作温度≤200°C;控制气源压力0.4-1.5MPa;耗气量1-3L/次。材料:阀体为不锈钢;阀芯为陶瓷，表面硬化处理;密封圈为特制耐磨橡胶。叶片耐磨有除尘硬块破碎能力。　　我公司常州同得利/江苏同得利专业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、YJD型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。           《扫二维码-添加 陈经理 微信-咨询陶瓷旋转阀》　　Cyclone discharge valve, material name: lithium iron phosphate; Stacking density: 0.6g/cm3. valve body material 304. nano ceramic sprayed inside the valve body, rotor material 304. rotor volume: 6L, number of rotor blades 6. gap between rotor and housing 0.3mm; rotor surface treatment: nano ceramic sprayed 0.3mm; end cap material 304. sealing form at both ends of the rotary valve: labyrinth gas seal, packing seal; Bearing NSK; Shaft end seal up. The exposed protective cover requires 304. with direct transmission and material contact coating sprayed with 0.3mm nano ceramic; motor: Anhui South 0.75KW-380V-50Hz, free of copper and zinc; Gearbox: Guomao, free of copper and zinc.　　Main structure: metal shell; Material contact part: ceramic lining 8-10mm/sprayed ceramic 0.15-0.3mm/brushed ceramic 2-3mm. Ceramic types: ceramic powder, nano ceramic, alumina ceramic, silicon carbide ceramic, silicon nitride ceramic, aluminum nitride ceramic, hexagonal boron nitride ceramic, etc.　　Mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, lithium iron phosphate intermediates, etc; Thermal power plants; Metallurgy; Mining; Food; Pharmaceutical and other raw materials.　　Features: High temperature resistance, wear resistance, erosion resistance, corrosion resistance, self-cleaning and anti jamming materials, long service life.　　The technology was developed in 2015. mass-produced in 2017. and the third-generation ceramic star shaped rotary valve was updated in 2020. Currently, there is a patent for ceramic star shaped rotary valve.　　Size: DN50~DN2000. square mouth 150 * 150~5000 * 4000. or non-standard customization.　　Motors and reducers: Wannan, Wolong, Guomao, Siemens ABB、SEW、Flender、NORD、 Sumitomo, explosion-proof type optional, or customer specified brand.　　The main function of spraying nano ceramics on rotary valves is:　　1. Anti metal contact: Copper and zinc are prohibited in the lithium battery industry to prevent contact with metals during transportation.　　2. Wear and erosion resistance: The ceramic layer has extremely high hardness (Rockwell hardness can reach HRC90. second only to diamond), which can effectively resist the erosion and wear of powder and particle materials passing through at high speed. Compared to ordinary metal valves, the lifespan of ceramic sealed valves can usually be extended by 3 to 6 times, or even longer.　　3. Corrosion resistance: Ceramic materials have stable chemical properties and strong resistance to corrosive media such as acids, alkalis, and salts, making them particularly suitable for corrosive environments such as chemical engineering and desulfurization.　　4. High temperature resistance: The spray coated nano ceramic valve is suitable for a temperature range of ≤ 400 ℃, and other ceramic materials need to be selected for higher temperatures.　　5. Smooth rotation: Ceramic surface energy is low, friction coefficient is small (about 0.15-0.25 in dry state), material is not easy to adhere, and torque is smoother.　　6. Self cleaning and anti sticking material: When opening and closing, the valve plate can rotate and grind itself to remove the accumulated dust on the sealing surface, so there is no sticking or material accumulation, and the opening and closing are flexible.　　7. Reliable sealing: The ceramic parts are finely ground and fit well, achieving hard sealing and low leakage; There is no dead corner of material accumulation in the inner cavity of the valve body.　　Common application industries of ceramic rotary valves:　　Lithium batteries: positive electrode materials, negative electrode materials, lithium iron phosphate, ternary materials, silicon materials, lithium battery powders, lithium carbonate, graphite.　　Chemical industry: Sealing materials, powder coatings, etc. are corrosive or high-temperature.　　The polymerization and reaction of engineering plastics (such as acetaldehyde, polyamide, polyurethane, etc.).　　Mixing of plastics (epoxy resin, polyamide, polyester, etc.).　　Paper industry: powder, block, pulp.　　Dry ash system for thermal power plants: including inlet and outlet valves for warehouse pumps, high temperature resistance, and wear resistance.　　Smelting industry: various types of slag.　　Food, medicinal materials, and raw material transportation: Lining/spraying ceramics can also avoid metal contact with materials and maintain cleanliness.　　Pharmaceutical: Bulk material transportation and dry dust media with wear and tear.　　Pneumatic conveying system: used for conveying dry ash, pulverized coal, slag, iron sand, alumina powder, granular materials, etc.　　There are too many industries and materials that can be used, so I won't list them one by one.　　Partial customer requirements:　　Material: Lithium battery raw material, specification: DN350. main material: SUS304. rotor: sprayed alumina ceramic 200um (thermal spray). Internal surface treatment: 304 sprayed alumina ceramic 200um (thermal spray), external surface treatment: sandblasting. Explosion proof: Non explosion proof, reference power: 2.2kw, frequency converter (frequency converter requires heavy-duty vector type), motor brand: Wannan, with shaft end air seal and related accessories, temperature resistance of 140 ℃.　　Material: Lithium ion positive electrode material, rotary valve specification: DN450. main body material: SUS304; Rotor: Spray coated alumina ceramic 200um (thermal spray); Internal surface treatment: 304 sprayed alumina ceramic 200um (thermal spray); External surface treatment: sandblasting; Explosion proof: non explosion proof; Reference power: 3.0kw, frequency converter (frequency converter requires heavy-duty vector type); Motor brand: Wannan; Equipped with shaft end gas seal and related accessories; Temperature resistance of 120 ℃; Gap requirements: radial 0.08-0.12mm, axial 0.08-0.10mm.　　Lithium ion feeding star shaped discharge valve: motor power of about 1.5KW, variable frequency speed regulating motor, model and specification: DN300. flange connection (pressure rating: PN10) material: 304+nano ceramic coating in contact with the material (thickness: spraying process above 0.3mm, cold brushing process 0.6mm); Sealing: packing+airtight seal; Cutting speed: 1-10m ³/h medium: lithium battery powder, particle size:>1mm, accounting for about 70%, at room temperature.　　Material: Polycrystalline silicon powder, powder with fine particles, DN100. Volume 0.6L/rev, working temperature 60-100 ℃, material particle size: 20-300 μ m, material processing capacity 400-500kg, conveying pressure ≥ 0.5Mpa, rotary valve filling coefficient 0.6-0.7. rotary valve speed 29R/min, end cover material 304. rotor material 304. shell material 304 (lined with ceramic), end cover form: external bearing type end cover gas seal, main shaft sealed with hard seal, motor power 1.5kw-380-50Hz, gear reducer Guomao GKAF-59-48.89.　　Physical Science: Hydrobromic acid powder, acid concentration of 40%~48%, bulk density of 3. hourly yield of 100 kilograms, normal temperature and pressure. Material 304 DN150. PN10. sprayed with alumina ceramic at the contact with the material, speed 25RPI, rotor volume 2/rev, power frequency motor 0.75KW-4P-B5.　　Our company Changzhou Tongdeli/Jiangsu Tongdeli specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, YJD type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, breaking valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.

　　星型卸料器/旋转阀/旋转卸料阀/关风机常用在气力输出系统中。对于压力输出系统或负压输出系统，星型卸料器可以均匀、连续地向输料管供料，以保证气力输出管内的气、固态比较稳定，从而使气力输送能正常工作，同时又能将卸料器的上、下部气压隔断而起到锁气作用。因此，星型卸料器是气力输送系统中常用的重要设备。　　Star shaped unloaders/rotary valves/rotary discharge valves/shut-off fans are commonly used in pneumatic output systems. For pressure output systems or negative pressure output systems, the star shaped unloader can uniformly and continuously feed the conveying pipe to ensure that the gas and solid in the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally, and at the same time, it can also block the upper and lower air pressure of the unloader and play a role in air lock. Therefore, the star shaped unloader is an important equipment commonly used in pneumatic conveying systems.　　陶瓷星型旋转阀由本公司自主研制，已取得多项国家专 利。本品适用于不可接触金属物料，多用于锂电正极原料的生产制作。陶瓷旋转阀的优点是超强耐磨，而且不会对锂电材料造成污染，是新能源大开发进程中一大助力。【电话/微信咨询：陈经理18068546632】　　The ceramic star shaped rotary valve is independently developed by our company and has obtained multiple national patents. This product is suitable for non-contact metal materials and is mainly used in the production and manufacturing of lithium positive electrode materials. The advantages of ceramic rotary valves are super strong wear resistance and no pollution to lithium battery materials, which is a major boost in the process of new energy development.　　陶瓷星型旋转阀 主要结构：外壳金属或全陶瓷。　　物料接触部分：内衬陶瓷(也可尼龙、四氟、特氟龙、聚氨酯等)。　　陶瓷星型卸料阀 适用范围：　　锂电行业：用于输送电池正负极材料、磷酸铁锂、三元材料等。　　也可适用于化工、制药、水泥、矿山、电厂、造纸等各类有磨损的干粉尘介质输送卸料。【电话/微信咨询：陈经理18068546632】　　特点：陶瓷旋转卸料阀具有密封性能好、耐磨性强、耐高温、耐腐蚀、保证物料的干净度、无卡灰或积灰现象、使用寿命长等特点。　　全陶瓷/内衬陶瓷旋转阀作用：　　耐高温：适应锂电生产过程中的高温环境，不易变形或损坏。　　耐腐蚀：能够抵御锂电材料中的腐蚀性介质。　　耐磨：硬度较高，能够承受物料的磨损。　　精准控制：能够实现对卸料量的精准控制，满足生产工艺要求。　　密封性好：确保物料在输送过程中不会泄露，保证生产环境的清洁和安全。　　易于清洁：陶瓷表面光滑，不易粘附物料，方便清洗和维护。【电话/微信咨询：陈经理18068546632】　　陶瓷旋转阀类型：滑杆式/侧快拆/耐高压/耐高温/锁风式/风送滑杆式/防卡型旋转阀，这些类型的旋转阀均可定制内衬陶瓷材质。(总有一款适合您的需求)【电话/微信咨询：陈经理18068546632】　　高温陶瓷：　　高铝瓷：耐高温度在1600度左右。　　氧化锆陶瓷：某些类型可以承受高达2000度或以上的温度。　　氧化铝陶瓷：熔点约为2050℃，能在非常高的温度下保持稳定性能。　　碳化硅陶瓷：耐温能力可达2500度左右。　　氮化硅陶瓷：耐高温达2800度左右。【电话/微信咨询：陈经理18068546632】　　【常州同得利】技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型阀，目前有陶瓷星型旋转阀发明专 利。　　Ceramic rotary valve types: sliding rod type/side quick release/high pressure resistance/high temperature resistance/air lock type/air supply sliding rod type/anti jam type rotary valve. These types of rotary valves can be customized with ceramic lining material. (There is always one that suits your needs).　　Changzhou Tongdeli's technology was developed in 2015 and mass-produced in 2017. The third generation ceramic star valve was updated in 2020. and currently holds an invention patent for ceramic star rotary valves.　　部分客户需求：　　1、输送物料磷酸铁，温度130℃左右;蕞大输送量 19.2m³/h，电机功率:1.5Kw，入出口尺寸:DN300.H400mm,16L/转，40转/分钟，材质304不锈钢，8叶片转子、内腔陶瓷阀芯，M12*8法兰孔连接，配备变频电机。　　2、DN200内衬陶瓷旋转阀，物料：球形硅微粉;硅材料，电子粉体材料、非金属材料、新型金属材料、石墨及碳素。　　3、输送物料磷酸铁，温度130℃左右;入出口尺寸DN200.H300mmm\6L\0.75KW，材质304不锈钢，8叶片转子、内腔陶瓷阀芯，M20*8法兰孔连接，配备变频电机。【电话/微信咨询：陈经理18068546632】　　4、DN200星型给料阀，主体材质为SUS304.阀体及叶片表面冷喷涂陶瓷0.3mm;两边端盖板表面冷喷涂陶瓷0.3mm;进出口为HG/T20592 PN10标准DN200平面法兰;配变频减速电机，功率约0.75kw，能效等级IE4.防护等级IP55.绝缘等级F，脂润滑 轴封方式为盘根+气密封，轴承材质为SUS304;物料接触及裸露部分禁铜铁锌。　　5、物料：磷酸铁锂/石墨类，物料堆积比重0.3~1.2g/㎝³，法兰连接DN200.流量要求：≥3t/h，材质SUS304.设备要求禁铜禁锌，卸料阀(关风器)高度≤300mm，工况：上端常压，下端负压，耐爆ExdllBT4.　　6、物料：多晶硅粉，粉体，带细小颗粒，DN100.容积0.6L/转，工作温度60-100℃，物料粒度：20-300μm，物料处理量400-500Kg，输送压力≥0.5Mpa，回转阀填充系数0.6-0.7.回转阀转速29R/min，端盖材质304.转子材质304(内衬陶瓷)，外壳材质304(内衬陶瓷)，端盖形式：外置轴承式端盖气密封，主轴密闭做成硬密封，电机功率1.5kw-380-50hz，齿轮减速机国茂GKAF-59-48.89.【电话/微信咨询：陈经理18068546632】　　7、物料：锂电粉料，粉料防金属，用内衬陶瓷或聚氨酯，陶瓷的和钛合金材质的对比下;单水氢氧化锂、碳酸锂、元明粉，其他锂盐产品。　　8、化工粉状物料，防腐材质、下料速度不能太多。DN50陶瓷卸料阀。　　9、稀土精深加工粉末：陶瓷星型卸料阀，卸料介质：粉末;D50<1um。公称通径dn150.电机功率0.75kw，转速33>30L/h。密封：具备良好的轴密封，不允许粉尘进入轴承，造成损坏，也污染物料。驱动方式：马达直连驱动，两端面法兰距离：<310mm。【电话/微信咨询：陈经理18068546632】　　10、物料:锂电正极材料，物料温度一百六七十度，常压，DN150陶瓷旋转阀，有些料流动性不好，加了振动，需要能耐振动。　　11、多晶硅，用于合成炉加硅粉使用，DN100.端盖转子304.外壳304加陶瓷内衬，外置轴承式端盖，容积1.6L/转，工作温度60-100℃，物料粒度：20-300μm，输送压力0.5Mpa。　　12、物料:锂电原料，陶瓷星型卸料阀有耐600度的吗，长期过600度粉体。　　13、物料：活性碳粉料，需要直径在DN100的四氟或者陶瓷材料的旋转阀，重力输送。　　14、旋转下料器高度400.DN200法兰盘，PN16带气密封的，全陶瓷旋转阀，锂电行业用。【电话/微信咨询：陈经理18068546632】          《扫二维码-添加 陈经理 微信-咨询陶瓷旋转阀》

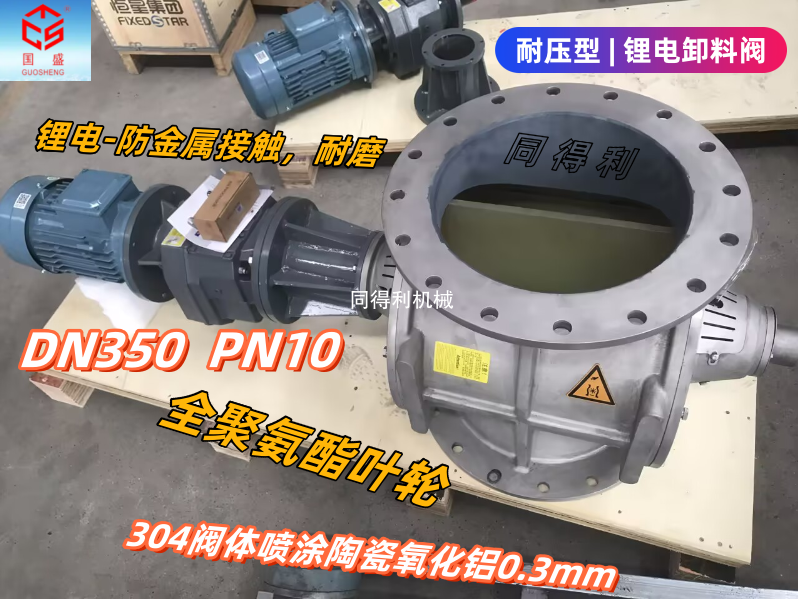

　　【TGZ-DN350-PN10-40L-喷涂氧化铝陶瓷-聚氨酯叶轮】　　旋转阀类型：不含铜锌　　容积(升/转)：40L　　处理量：10t/h　　物料介质：锂电原材料　　物料比重：1.2g/cm3　　物料温度：≤60℃　　输送场合：负压　　填充系数：0.8　　进/出口法兰尺寸(mm)：DN350-PN10　　阀体高度：550mm　　阀体/端盖材质：304.喷涂氧化铝陶瓷0.3mm　　叶轮材质：全聚氨酯　　叶轮结构：6片　　叶轮与外壳间隙(mm)：0.4mm　　主轴硬度：HRC10　　两轴端密封形式：迷宫气密封　　轴承密封形式：油封　　轴端密封处：需要保护　　传动方式：直连　　旋转阀转速(r/min)：40转　　电机：ABB，3KW-380V-50Hz-CE，不含铜锌　　减速机：国茂，不含铜锌　　旋转阀喷涂陶瓷防金属接触：锂电正负极原料输送中禁铜锌。　　高耐磨性‌：陶瓷材料硬度极高(氧化锆可达HRC87~90)，能有效抵抗干灰、粉煤、矿渣、矿浆等高磨损介质的冲刷，使用寿命可达普通金属阀门的2~4倍。　　耐高温：喷涂氧化铝陶瓷阀适用温度范围≤400℃‌，更高温度需要选择其他陶瓷材质。　　强耐腐蚀‌：陶瓷化学性质稳定，适用于酸碱及高氯离子等腐蚀性介质，解决金属阀门易被腐蚀失效的问题。　　TGZ-DN350-PN10-40L-Spray alumina ceramic polyurethane impeller　　Rotary valve type: copper zinc free　　Capacity (liters/revolutions): 40L　　Processing capacity: 10t/h　　Material medium: Lithium battery material　　Material specific gravity: 1.2g/cm3　　Material temperature: ≤ 60 ℃　　Delivery occasion: Negative pressure　　Fill factor: 0.8　　Inlet/outlet flange size (mm): DN350-PN10　　Valve body height: 550mm　　Valve body/end cap material: 304. sprayed with 0.3mm alumina ceramic　　Impeller material: Full polyurethane　　Impeller structure: 6 pieces　　Clearance between impeller and casing (mm): 0.4mm　　Spindle hardness: HRC10　　Two axis end sealing form: labyrinth gas seal　　Bearing sealing form: oil seal　　Shaft end seal: requires protection　　Transmission mode: direct connection　　Rotating valve speed (r/min): 40 revolutions per minute　　Motor: ABB, 3KW-380V-50Hz-CE, without copper or zinc　　Gearbox: Guomao, free of copper and zinc　　Anti metal contact: Copper and zinc are prohibited during the transportation of lithium battery positive and negative electrode materials.　　High wear resistance: Ceramic materials have extremely high hardness (zirconia can reach HRC87-90), which can effectively resist the erosion of high wear media such as dry ash, coal powder, slag, and slurry. The service life can reach 2-4 times that of ordinary metal valves.　　High temperature resistance: Spray coated alumina ceramic valve is suitable for temperature range ≤ 400 ℃, and other ceramic materials need to be selected for higher temperatures.　　Strong corrosion resistance: Ceramics have stable chemical properties and are suitable for corrosive media such as acids, bases, and high chloride ions, solving the problem of metal valves being easily corroded and failing.

       旋转阀(俗称旋转给料器或星型卸料器、星型卸料阀、卸灰阀、星型卸灰阀、锁气阀、关风机、关风机卸料器、关风器、电动锁气器)是应用于粉体(粉沫、颗粒物料、粉粒混合物)输送系统中用来卸料、计量、除尘、定量输送、混合、包装的专用设备。旋转阀广泛用于锂电,化工,环保,石油,冶金,矿山,耐火材料,电力,钢厂,水泥,塑料,粮食医药等行业。Rotary valve (commonly known as rotary feeder or star unloader, star discharge valve, ash discharge valve, star discharge valve, air lock valve, air shut-off fan, air shut-off fan unloader, air shut-off device, electric air lock device) is a specialized equipment used in powder (foam, granular material, powder particle mixture) conveying systems for unloading, metering, dust removal, quantitative conveying, mixing, and packaging. Rotary valves are widely used in industries such as lithium batteries, chemicals, environmental protection, petroleum, metallurgy, mining, refractory materials, electricity, steel mills, cement, plastics, grain and medicine.【电话/微信咨询：陈经理18068546632】                     DN200陶瓷旋转阀卸料旋转阀工作原理：卸料旋转阀的工作原理主要涉及电动机驱动减速机，通过联轴器或链轮使旋转阀的转子旋转。在旋转过程中，材料位于旋转叶片的空间内，叶片的旋转将材料带到排出口，材料的自重使其流入输送系统或储藏室。这种工作方式使得卸料阀能够均匀、连续地向输料管供料，保证气力输出管内的气体和固体物质保持稳定，从而确保气力输送系统的正常工作。同时，卸料阀还具有锁气作用，能够隔断卸料阀上下部的气压。‌Working principle of unloading rotary valve:The working principle of the unloading rotary valve mainly involves the motor driving the reducer, which rotates the rotor of the rotary valve through a coupling or sprocket. During the rotation process, the material is located in the space of the rotating blades, and the rotation of the blades brings the material to the discharge outlet. The self weight of the material causes it to flow into the conveying system or storage room. This working method enables the discharge valve to uniformly and continuously feed the conveying pipe, ensuring that the gas and solid substances in the pneumatic output pipe remain stable, thereby ensuring the normal operation of the pneumatic conveying system. At the same time, the discharge valve also has a locking effect, which can block the air pressure at the upper and lower parts of the discharge valve. ‌同得利陶瓷旋转阀系列：适用于是0.8-3kg/cm²系统压力或压差。设置排气口(正压输送时选用)将叶轮旋转带出的气体通过排气口送至排期装置，提高填充效率。极小的间隙和特殊的密封装置保持设备的可靠运行。轴承外置式安装、经久耐用、性能优异。提供链驱动、直联驱动多种安装方式。【电话/微信咨询：陈经理18068546632】陶瓷旋转阀类型：滑杆式/侧快拆/耐高压/耐高温/锁风式/风送滑杆式/防卡型旋转阀，这些类型的旋转阀均可定制内衬陶瓷材质。(总有一款适合您的需求)【电话/微信咨询：陈经理18068546632】内衬陶瓷旋转阀作用：耐高温：适应锂电生产过程中的高温环境，不易变形或损坏。耐腐蚀：能够抵御锂电材料中的腐蚀性介质。耐磨：硬度较高，能够承受物料的磨损。精准控制：能够实现对卸料量的精准控制，满足生产工艺要求。密封性好：确保物料在输送过程中不会泄露，保证生产环境的清洁和安全。易于清洁：陶瓷表面光滑，不易粘附物料，方便清洗和维护。【电话/微信咨询：陈经理18068546632】       常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。在您需要购买时：用途：请说明是定量排出、全量排出还是气锁。使用场所：室内还是室外、高原还是沿海。流量：每小时供料量。输送物料的性能(介质)：名称、粒度、堆积密度、温度、安息角、含水率。输送场合：正压、负压、常压。减速机、电机：请指定防护等级、防爆等级。材质：碳钢、铸铁、不锈钢、铝合金、钛合金、PPC、陶瓷、尼龙、四氟、特氟龙等。涂装色：有无指定颜色(无指定是为企业产品标准色)。          《扫二维码-添加 陈经理 微信-咨询陶瓷星型阀》Tongdeli Ceramic Rotary Valve Series:Suitable for system pressures or pressure differentials ranging from 0.8-3kg/cm ².Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.The extremely small gap and special sealing device ensure the reliable operation of the equipment.External installation of bearings, durable and excellent performance.Provide multiple installation methods for chain drive and direct drive.Ceramic rotary valve types: sliding rod type/side quick release/high pressure resistance/high temperature resistance/air lock type/air supply sliding rod type/anti jam type rotary valve. These types of rotary valves can be customized with ceramic lining material. (There is always one that suits your needs)Function of lined ceramic rotary valve:High temperature resistance: adapted to the high temperature environment during lithium battery production, not easily deformed or damaged.Corrosion resistance: able to resist corrosive media in lithium battery materials.Wear resistance: With high hardness, it can withstand the wear of materials.Precise control: capable of achieving precise control over the discharge volume to meet production process requirements.Good sealing: Ensure that materials will not leak during transportation, ensuring a clean and safe production environment.Easy to clean: The ceramic surface is smooth and not easily adhered to materials, making it easy to clean and maintain.Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

　　陶瓷星型卸料阀 主要结构：外壳金属　　物料接触部分：内衬陶瓷(也可尼龙、四氟)　　陶瓷星型卸料阀 适用范围：　　       锂电行业：用于输送电池正负极材料、磷酸铁锂、三元材料等。　　       也可适用于化工、水泥、矿山、电厂、造纸等各类有磨损的干粉尘介质输送卸料。　　特点：陶瓷旋转卸料阀具有密封性能好、耐磨性强、耐高温、耐腐蚀、保证物料的干净度、无卡灰或积灰现象、使用寿命长等特点。【电话/微信咨询：陈经理18068546632】　　【常州同得利】技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型阀，目前有陶瓷星型阀发明专 利。　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粉料、超微粉体等。【电话/微信咨询：陈经理18068546632】　　The main structure of the ceramic star shaped discharge valve is the shell metal　　Material contact part: lined with ceramic (nylon, PTFE can also be used)　　Scope of application of ceramic star shaped discharge valve:　　Lithium battery industry: used for transporting positive and negative electrode materials of batteries, lithium iron phosphate, ternary materials, etc.　　It can also be used for conveying and unloading various dry dust media with wear and tear, such as chemical, cement, mining, power plants, papermaking, etc.　　Features: The ceramic rotary discharge valve has the characteristics of good sealing performance, strong wear resistance, high temperature resistance, corrosion resistance, ensuring the cleanliness of materials, no jamming or accumulation of dust, and long service life.　　Changzhou Tongdeli Technology was developed in 2015 and mass-produced in 2017. The third-generation ceramic star valve was updated in 2020. and currently has a ceramic star valve invention patent.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.

陶瓷星型旋转阀 主要结构：外壳金属物料接触部分：内衬陶瓷（也可尼龙、四氟等）陶瓷星型旋转阀 适用范围：       锂电行业：用于输送电池正负极材料、磷酸铁锂、三元材料等。        也可适用于化工、水泥、矿山、电厂、造纸等各类有磨损的干粉尘介质输送卸料。特点：陶瓷旋转阀具有密封性能好、耐磨性强、耐高温、耐腐蚀、保证物料的干净度、无卡灰或积灰现象、使用寿命长等特点。【电话/微信咨询：陈经理18068546632】　　Main structure: Metal shell　　Material contact part: lined with ceramic (nylon, PTFE, etc. can also be used)　　Applicable scope:　　Lithium battery industry: used for transporting positive and negative electrode materials of batteries, lithium iron phosphate, ternary materials, etc.　　It can also be used for conveying and unloading various dry dust media with wear and tear, such as chemical, cement, mining, power plants, papermaking, etc.　　Features: Ceramic rotary valves have the characteristics of good sealing performance, strong wear resistance, high temperature resistance, corrosion resistance, ensuring the cleanliness of materials, no jamming or accumulation of dust, and long service life.　　

　　主要结构：外壳金属。　　物料接触部分：内衬陶瓷(也可尼龙、四氟等)。　　适用范围：用于输送电池正极材料、磷酸铁锂、三元材料等。食品药材原料输送。　　特点：物料粘接设备，可以快速清理，快速复位。　　主要材料：不锈钢304-316、陶瓷氧化铝。       本产品由本公司自主研制，已取得多项国家专 利。本品适用于不可接触金属物料，多用于锂电正极原料的生产制作。陶瓷阀的优点是超强耐磨，而且不会对锂电材料造成污染，是新能源大开发进程中一大助力。【电话/微信咨询：陈经理18068546632】              【电话/微信咨询：陈经理18068546632】Main structure: Metal shell.Material contact part: lined with ceramic (nylon, PTFE, etc. can also be used)Scope of application: Used for transporting battery cathode materials, lithium iron phosphate, ternary materials, etc. Transportation of food and medicinal materials.Features: Material bonding equipment, can quickly clean and reset.Main materials: stainless steel 304 316, ceramic alumina.This product is independently developed by our company and has obtained multiple national patents. It is suitable for non-contact metal materials and is mainly used in the production and production of lithium battery cathode materials. The advantage of ceramic valves is that they are super wear-resistant and do not cause pollution to lithium-ion materials, making them a major contributor to the development of new energy.

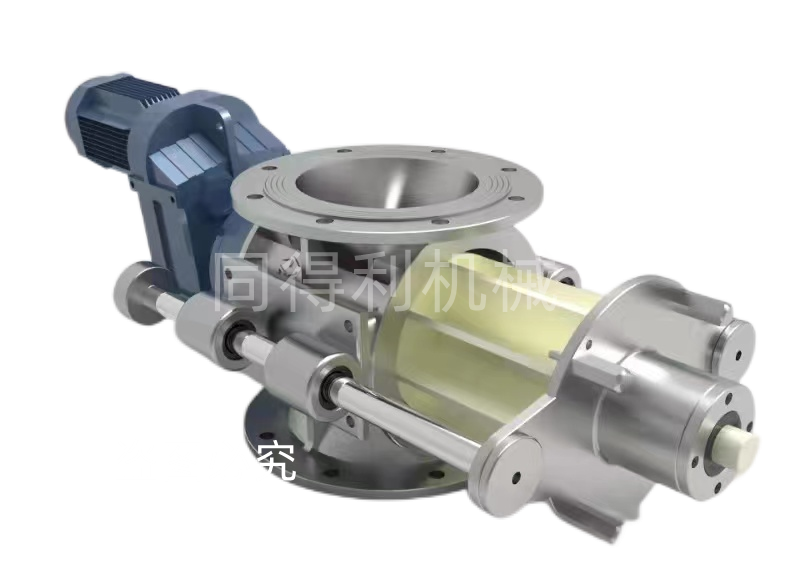

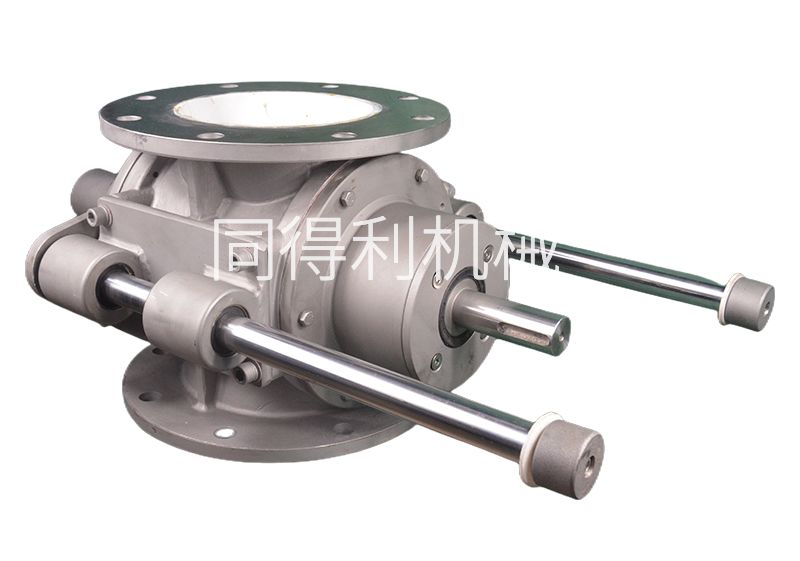

    星型卸料器用于安装在负压下工作的卸料器的排料口处，上部接受卸料器排出的物料，依靠旋转的叶轮起着输送物料的作用，又担负着密封的作用，防止气力输送过程中从排料口吸入空气，卸料器的正常排料做为一种特殊的卸料装备，在清洁和清洗工作中起到了很大的作用。The star shaped unloader is used to be installed at the discharge port of the unloader working under negative pressure. The upper part receives the material discharged by the unloader, and relies on the rotating impeller to transport the material and also plays a sealing role to prevent air from being sucked in from the discharge port during pneumatic conveying. The normal discharge of the unloader, as a special unloading equipment, plays a great role in cleaning and washing work.锂电/化工卸料阀-陶瓷卸料阀由本公司自主研制，已取得多项国家专 利。本品适用于不可接触金属物料，多用于锂电正极原料的生产制作。陶瓷阀的优点是超强耐磨，而且不会对锂电材料造成污染，是新能源大开发进程中一大助力。陶瓷卸料阀类型：滑杆式/侧快拆/耐高压/耐高温/锁风式/风送滑杆式/防卡型卸料阀(总有一款适合您的需求)【电话/微信咨询：陈经理18068546632】陶瓷星型卸料阀主要结构：外壳金属;物料接触部分：内衬陶瓷(也可尼龙、四氟、特氟龙、聚氨酯等)。陶瓷星型卸料阀主要用于输送锂电池正极材料，负极材料，磷酸铁锂，三元材料等物料的输送和卸料，可以提高生产效率，保证物料的质量的和稳定性，同时满足环保和安全的要求。陶瓷星型卸料阀特点：耐高温、耐磨、使用寿命长。陶瓷星型卸料阀技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型旋转阀，目前有陶瓷星型旋转阀专 利。我们购买星型旋转卸料阀输送物料时，如何才能选择合适的厂家?选择实力强的厂家，一般来说旋转卸料阀厂家可以见证产品的质量，实力强的厂家可为客户提供更好的产品质量和服务。要看厂家的实力、信誉、规模。同得利秉承以下服务承诺:服务目标：服务质量赢得用户满意。严格控制对产品性能的检测，待产品被确认合格后再出厂发货。提供的产品符合报价文件承诺和所签合同规定的技术要求。物美价廉，具有输送系统完全密闭，可以避免输送物料的受潮、污损或混入异物等优势。常用于锂电/化工/药材/食品/塑料/钢厂/电厂/矿山/水泥/环保等行业。【电话/微信咨询：陈经理18068546632】全新的铸造方法用于改善外表面光洁度和铸造完整性，阀体外壳强度更高。      《扫二维码-添加 陈经理 微信-咨询陶瓷星型卸料阀》Tongdeli adheres to the following service commitments:Service objective: To achieve customer satisfaction through high-quality service.Strictly control the testing of product performance, and only ship the product after it is confirmed to be qualified.The products provided meet the technical requirements as promised in the quotation documents and as stipulated in the signed contract.Affordable and cost-effective, with a completely sealed conveying system that can prevent moisture, dirt, or foreign matter from entering the conveyed material. Commonly used in industries such as lithium batteries, chemicals, medicinal materials, food, plastics, steel mills, power plants, mines, cement, and environmental protection.The new casting method is used to improve the surface smoothness and casting integrity, resulting in higher strength of the valve body shell.

陶瓷卸料阀系列：·适用于是0.8-3kg/cm²系统压力或压差。·设置排气口（正压输送时选用）将叶轮旋转带出的气体通过排气口送至排期装置，提高填充效率。·极小的间隙和特殊的密封装置保持设备的可靠运行。·轴承外置式安装、经久耐用、性能优异。·提供链驱动、直联驱动多种安装方式。·该型陶瓷卸料阀机组进出口安装尺寸一致，是根据不同的安装要求而专门设计的机型。·箱体材质主要有：不锈钢、铝合金·内衬材质主要有：陶瓷、四氟、PVC·内喷涂材质有：陶瓷粉、碳化钨、特氟龙。【电话/微信咨询：陈经理18068546632】          【电话/微信咨询：陈经理18068546632】　　Ceramic discharge valve series:　　·Applicable to 0.8-3kg/cm ² System pressure or differential pressure.　　·Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.　　·The minimal gap and special sealing device ensure the reliable operation of the equipment.　　·External installation of bearings, durable, and excellent performance.　　·Provide multiple installation methods for chain drive and direct drive.　　·This type of ceramic discharge valve unit has consistent inlet and outlet installation dimensions and is specially designed according to different installation requirements.　　·The main materials of the box include stainless steel and aluminum alloy　　·The main lining materials include ceramics, PTFE, and PVC　　·The internal spraying materials include: ceramic powder, tungsten carbide, and PTFE          《扫二维码-添加 陈经理 微信-咨询产品》

　　本产品由本公司自主研制，已取得多项国家专 利。本品适用于不可接触金属物料，多用于锂电正极原料的生产制作。陶瓷阀的优点是超强耐磨，而且不会对锂电材料造成污染，是新能源大开发进程中一大助力。　　主要结构：外壳金属。　　物料接触部分：内衬陶瓷(也可尼龙、四氟等)。　　适用范围：用于输送电池正极材料、磷酸铁锂、三元材料等。食品药材原料输送。　　特点：针对物料粘接，快拆清理，快速复位。　　主要材料：不锈钢304-316、陶瓷氧化铝。【电话/微信咨询：陈经理18068546632】This product is independently developed by our company and has obtained multiple national patents. This product is suitable for non-contact metal materials and is mainly used in the production and production of lithium battery cathode materials. The advantage of ceramic valves is that they are super wear-resistant and do not cause pollution to lithium-ion materials, making them a major contributor to the development of new energy.Main structure: Metal shell.Material contact part: lined with ceramic (nylon, PTFE, etc.).Scope of application: Used for transporting battery cathode materials, lithium iron phosphate, ternary materials, etc. Transportation of food and medicinal materials.Features: For material bonding, quick disassembly and cleaning, quick reset.Main materials: stainless steel 304 316, ceramic alumina.

       锂电专用旋转阀-陶瓷旋转阀由本公司自主研制，已取得多项国家专 利。本品适用于不可接触金属物料，多用于锂电正极原料的生产制作。陶瓷阀的优点是超强耐磨，而且不会对锂电材料造成污染，是新能源大开发进程中一大助力。陶瓷内衬用途：陶瓷内衬在抗腐蚀方面有着独特的优势。由于陶瓷内衬具有较高的硬度和化学稳定性，许多化学物质无法侵蚀其表面。陶瓷内衬的使用可以减轻设备的腐蚀，延长设备的使用寿命，提高生产效率。陶瓷内衬具有优异的隔热保温性能。在高温环境下，陶瓷内衬可以有效地抵御热量的传导和散失，保持设备内部的温度稳定。此外，陶瓷内衬还可以起到防爆的作用。由于陶瓷内衬具有较高的抗压强度和耐冲击性，它可以有效地抵御爆炸或高压气体产生的冲击和破坏。陶瓷旋转阀主要结构：外壳金属;物料接触部分：内衬陶瓷(也可尼龙、四氟、特氟龙等)。陶瓷旋转阀主要用于输送锂电池正极材料、磷酸铁锂、三元材料等。陶瓷旋转阀特点：耐高温、耐磨、使用寿命长。陶瓷旋转阀技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型旋转阀，目前有陶瓷星型旋转阀专 利。【电话/微信咨询：陈经理18068546632】我们购买旋转卸料阀输送物料时，如何才能选择合适的厂家?选择实力强的厂家，一般来说旋转卸料阀厂家可以见证产品的质量，实力强的厂家可为客户提供更好的产品质量和服务。要看厂家的实力、信誉、规模。同得利秉承以下服务承诺:服务目标：服务质量赢得用户满意。严格控制对产品性能的检测，待产品被确认合格后再出厂发货。提供的产品符合报价文件承诺和所签合同规定的技术要求。【电话/微信咨询：陈经理18068546632】物美价廉，具有输送系统完全密闭，可以避免输送物料的受潮、污损或混入异物等优势。常用于锂电/化工/药材/食品/塑料/钢厂/电厂/矿山/水泥/环保等行业。全新的铸造方法用于改善外表面光洁度和铸造完整性，阀体外壳强度更高。        《扫二维码-添加 陈经理 微信-咨询陶瓷星型旋转阀》Application of ceramic lining:Ceramic lining has unique advantages in corrosion resistance. Due to the high hardness and chemical stability of ceramic lining, many chemicals cannot corrode its surface. The use of ceramic lining can reduce equipment corrosion, extend the service life of equipment, and improve production efficiency.Ceramic lining has excellent thermal insulation performance. In high temperature environments, ceramic lining can effectively resist the conduction and dissipation of heat, maintaining temperature stability inside the equipment.In addition, ceramic lining can also play an explosion-proof role. Due to its high compressive strength and impact resistance, ceramic lining can effectively resist the impact and damage caused by explosions or high-pressure gases.

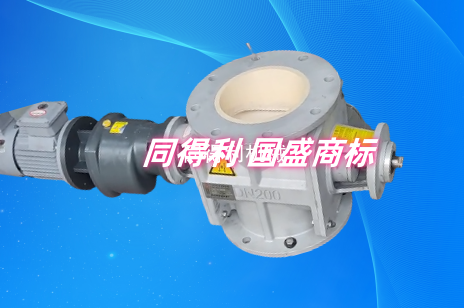

       DN200陶瓷卸料阀-国盛卸料阀类型：滑杆式/侧快拆/耐高压/耐高温/锁风式/风送滑杆式/防卡型卸料阀(总有一款适合您的需求)陶瓷卸料阀主要结构：外壳金属;物料接触部分：内衬陶瓷(也可尼龙、四氟、特氟龙、聚氨酯等)。陶瓷卸料阀主要用于输送锂电池正极材料，负极材料，磷酸铁锂，三元材料等物料的输送和卸料，可以提高生产效率，保证物料的质量的和稳定性，同时满足环保和安全的要求。陶瓷卸料阀特点：耐高温、耐磨、使用寿命长。陶瓷卸料阀技术研发于2015年，批量生产于2017年，2020年更新第3代陶瓷星型旋转阀，目前有陶瓷星型旋转阀专 利。【电话/微信咨询：陈经理18068546632】锂电/化工卸料阀-陶瓷卸料阀由本公司自主研制，已取得多项国家专 利。本品适用于不可接触金属物料，多用于锂电正极原料的生产制作。陶瓷阀的优点是超强耐磨，而且不会对锂电材料造成污染，是新能源大开发进程中一大助力。         《扫二维码-添加 陈经理 微信-咨询陶瓷卸料阀》DN200 Ceramic Unloading Valve - Guosheng Unloading Valve Types: Sliding Rod/Side Quick Release/High Pressure/High Temperature/Lock Air/Air Delivery Sliding Rod/Anti jamming Unloading Valve (There is always one that suits your needs)The main structure of ceramic discharge valve: metal shell; Material contact part: lined with ceramic (also nylon, PTFE, PTFE, polyurethane, etc.).Ceramic discharge valves are mainly used for conveying and discharging materials such as positive electrode materials, negative electrode materials, lithium iron phosphate, ternary materials, etc. of lithium batteries. They can improve production efficiency, ensure the quality and stability of materials, and meet environmental and safety requirements.
