螺旋输送机/‌绞龙输送机/螺杆上料机专为塑料及粉体生产加工行业设计制造，本机与物料接触部分全部采用不锈钢制作，可与各种规格挤出机，高速混合机，塑料搅拌机配套使用，广泛适用于各类粉状，粒状，回收破碎等物料的上(送)料用途。 可多机串联使用，具有：自动控制加料，维修方便，安全可靠，提高工作效率等优点。接触物料采用不锈钢制作，输送过程中原料完全不受污染，不带入任何异物，能使生产过程中实现封闭自动化。　　The screw conveyor/auger conveyor/screw feeder is designed and manufactured specifically for the plastic and powder production and processing industry. The parts in contact with the materials are all made of stainless steel and can be used in conjunction with various specifications of extruders, high-speed mixers, and plastic mixers. It is widely used for feeding various types of powder, granular, recycled and crushed materials. It can be used in series with multiple machines and has the advantages of automatic feeding control, convenient maintenance, safety and reliability, and improved work efficiency. The contact material is made of stainless steel, and the raw materials are completely uncontaminated during the transportation process, without bringing in any foreign objects, which can achieve closed automation in the production process.【电话/微信咨询：陈经理18068546632】　　【螺旋输送机类型】：　　1、破拱.锁气.防冲料.组合螺旋送料机;　　2、双向螺旋输送机;　　3、精准喂料螺旋送料机;　　4、子母螺旋输送机 / 双轴;　　5、提升螺旋输送 / 垂直;　　6、双螺旋输送机;　　7、滑杆快拆螺旋送料机;　　8、高温螺旋输送机；       9、水冷式螺旋输送机 ≥1000℃ 。　　Spiral conveyor type: arch breaking Lock the air Anti erosion material Combination spiral feeder; Bidirectional screw conveyor; Precision feeding screw feeder; Mother child screw conveyor; Enhance spiral conveying; Double helix conveyor; Sliding rod quick disassembly spiral feeder; High temperature screw conveyor.　　【主要材质】：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟.陶瓷.尼龙.碳钢.定制.   (总有一款适合您的需求)【电话/微信咨询：陈经理18068546632】          《扫二维码-添加 陈经理 微信-咨询螺旋输送机》　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene Ceramics Nylon Carbon steel.   【电话/微信咨询：陈经理18068546632】    【电话/微信咨询：陈经理18068546632】       《扫二维码-添加 陈经理 微信-咨询螺旋输送机》   《扫二维码-添加 陈经理 微信-咨询绞龙螺旋输送机》

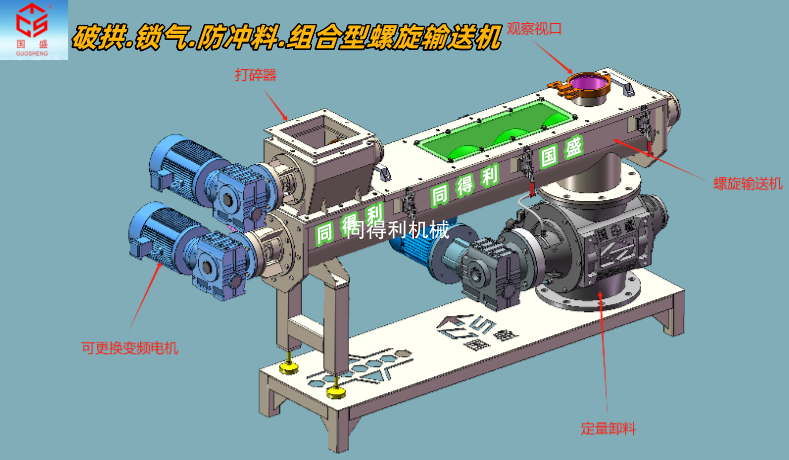

　　普通螺旋输送机遇到潮湿、粘性大或者结块料时，容易在料仓出口堵住，形成“拱形”导致下料中断。破拱螺旋输送机把输送和破拱功能合二为一，驱动装置带动转动耙上的破拱轴高速旋转，多组破拱搅棒以强劲的机械力对物料进行全方位搅动，将结块物料打散破碎成松散状态。在破拱完成的同时，螺旋输送机本体开始发挥作用。螺旋叶片围绕中心轴旋转，形成连续的螺旋推力，将松散物料沿输送槽向前推移。螺旋输送机下方接星型卸料阀，密封锁气，定量给料。　　Ordinary screw conveyors are prone to blockage at the outlet of the silo when encountering damp, sticky, or clumped materials, forming an "arch" and causing interruption of material discharge. The arch breaking screw conveyor combines the conveying and arch breaking functions into one. The driving device drives the arch breaking shaft on the rotating rake to rotate at high speed. Multiple sets of arch breaking stirring rods use strong mechanical force to stir the material in all directions, breaking up the clumped material into a loose state. At the same time as the arch breaking is completed, the screw conveyor body begins to function. The spiral blades rotate around the central axis, forming a continuous spiral thrust that pushes loose materials forward along the conveyor trough. The spiral conveyor is connected to a star shaped discharge valve below, which is sealed and locked with air, and is used for quantitative feeding.　　LSU破拱螺旋输送机组合型：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、旋转阀、破拱机等。　　特点：解决物料容易架桥、适用于压力输送。　　行业应用：锂电新能源行业、化工、制药、食品、水泥、冶金、矿山、环保、钢厂、电厂等。　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量0.1m³/h~400m³/h。　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)　　防架桥结块‌：破拱机通过破拱轴或者特殊的螺旋叶片设计(比如齿形、锯齿状)，在输送的同时不断搅动物料，把结块料打散，防止物料在螺旋输送机进料口搭桥堵塞 。　　密封防尘‌：螺旋输送机大多采用全封闭管式或U型槽设计，输送过程中粉尘不外泄，既安全又环保，特别适合有毒有害或需要保持卫生的物料 。‌‌‌‌可增加可视窗口，观察物料流动状况。　　锁气定量给料：星型卸料阀/旋转阀高精度密封锁气，维持气力输送系统压力平衡(正压/负压)，物料按固定容积周期性地均匀排出，确保供料稳定 。【电话/微信咨询：陈经理18068546632】　　部分客户需求：　　物料葡萄糖，DN250.标准法兰口，会结块，需要先破拱打散块料后通过螺旋输送机输送，一小时输送2~2.5吨，需求总套数多，但现在不确定效果，想先一台试用。　　物料：石灰石粉，料仓圆锥形，隔板12厚锰钢，物料比重1.3.产量10t/h，石灰料结块架桥下不来，推荐加装料仓刮料破拱器，以及破拱.锁气.防冲料.组合螺旋输送机，星型卸料阀轴两端用气密封。　　物料：碳酸钾，比重0.7~0.8.卸料量30分钟1吨左右，烘干出来有少量的大块，10~15cm，正常是粉末，大块需要打散破碎一下，防爆，DN200或者DN250.块料破碎后经过螺旋输送机，水平距离2米，螺旋输送机出料口下方接旋转卸料阀，需高密封锁气型。　　破拱螺旋给料机，破碎糖霜，有时候结块，破拱阀过一下就行，全304材质，DN300.配合旋转阀定量卸料。　　含水率50%块状污泥5-6cm，有一定的粘性，破碎后进入螺旋输送机，输送距离5m，随后污泥经过卸料阀进入锅炉，要求密封锁气，且能观察物料输送状况。　　用于钠电正极材料的破碎及输送功能，DN300.特性有点像容易结块的盐，材质:SUS304.轴、叶片、内壁喷涂≥0.3mmWC，小距离水平输送。　　输送介质无水磷酸铁粉体材料，物料温度200℃，PH值1.8-2.5;破碎动刀淬火处理，齿厚8mm，破拱阀内部要求无毛刺锐边，清洁干净无残存金属和其他粉末，进出料口封闭，材质304.含铜量≤0.5%。破拱块料架桥后经螺旋输送机至旋转阀均匀给料。　　破拱螺旋输送机，破碎物料Ca0、结块料、部分浇注料，物料温度200℃，进料粒度：>30mm 的料预计10%，个别结块料可达50mm，出料粒度<10mm，处理量15th，Ca0 堆积密度0.7t/m³，破拱打散后输送至下一处，距离3.5m。　　物料：结块化工产品有腐蚀性，料仓下料易结块堵塞，需要组合型破拱螺旋输送机，DN300接口，316L材质，输送距离2.5米，且密封锁气，卸料阀下方称重计量包装。　　物料：氧化铝粉末可能结块，需要破碎打散一下，从烘干设备出来可能会成团块状，每小时2吨输送量，螺旋输送机2~3米。　　2-4mm粒径的PEA粉末挤压成的颗粒，有一个成品料仓，会出现架桥现象，配气力输送卸料型旋转给料阀，一小时出料量1.2吨，短距离输送。　　DN200破拱螺旋输送机+旋转给料阀，物料：磷酸铁锂，主体材质为SUS304.阀体及叶片表面冷喷涂陶瓷0.3m;两边端盖板表面冷喷涂陶瓷0.3mm;进出口为HG/T20592 PN10标准DN200平面法兰:变频减速电机,能效等级IE4.防护等级IP55.绝缘等级F,轴封方式为盘根+气密封,轴承材质为SUS304;5.物料接触及裸露部分禁铜铁锌。　　破拱螺旋输送机+旋转阀，碳酸锂:堆密度370kg/cm2.DN300.接触物料材质:S30408.破碎破拱粒径:2-5cm，设计产能:2.5t/h，破拱破碎->螺旋输送机->旋转阀，密封形式:气密封，流量计：WIKA/川仪。【电话/微信咨询：陈经理18068546632】　　LSU arch breaking screw conveyor combination type:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, rotary valve, arch breaking machine, etc.　　Features: It solves the problem of easy bridging of materials and is suitable for pressure conveying.　　Industry applications: lithium battery new energy industry, chemical, pharmaceutical, food, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)　　Anti bridging and clumping: The arch breaking machine uses a broken arch shaft or a special spiral blade design (such as toothed or serrated) to continuously stir the material while conveying, breaking up the clumped material and preventing it from being blocked by bridging at the feed inlet of the screw conveyor.　　Sealed and dustproof: Most screw conveyors adopt fully enclosed pipe or U-shaped groove designs, which prevent dust leakage during transportation, making them safe and environmentally friendly, especially suitable for toxic and harmful materials or materials that require hygiene. Can add a visual window to observe the flow of materials.　　Gas locking and quantitative feeding: Star shaped discharge valve/rotary valve provides high-precision sealing and gas locking to maintain pressure balance (positive/negative pressure) in the pneumatic conveying system. The material is periodically and uniformly discharged according to a fixed volume, ensuring stable feeding.　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种结块颗粒、片状、块状物料、粘料、结块粉料、架桥超微粉体等。    《扫二维码-添加 陈经理 微信-咨询破拱螺旋上料机》　　Partial customer requirements:　　Material glucose, DN250. The standard flange mouth will clump, and the block material needs to be broken and dispersed first before being transported by a screw conveyor. It can transport 2-2.5 tons per hour. There is a high demand for a total of sets, but the effect is uncertain at the moment. I would like to try one first.　　Material: Limestone powder, conical silo, 12 thick manganese steel partition, material specific gravity 1.3. output 10t/h, lime material clumps cannot be bridged, it is recommended to install silo scraper and arch breaker Lock the air Anti erosion material Combination screw conveyor, with gas seals at both ends of the star shaped discharge valve shaft.　　Material: Potassium carbonate, specific gravity 0.7~0.8. discharge capacity of about 1 ton in 30 minutes. After drying, there are a small amount of large blocks, 10~15cm, which are normally powder. The large blocks need to be broken and crushed for explosion prevention. They are DN200 or DN250. After being crushed, the block material passes through a screw conveyor with a horizontal distance of 2 meters. A rotating discharge valve is connected below the discharge outlet of the screw conveyor, which requires high sealing and air locking type.　　Broken arch spiral feeder, crushing icing sugar, sometimes clumping, just pass through the broken arch valve, all made of 304 material, DN300. Cooperate with the rotary valve for quantitative unloading.　　The block shaped sludge with a moisture content of 50% is 5-6cm and has a certain viscosity. After crushing, it enters the screw conveyor with a conveying distance of 5m. Then, the sludge enters the boiler through the discharge valve and is required to be sealed and gas locked, and the material conveying condition can be observed.　　Used for crushing and transporting sodium positive electrode materials, DN300. The characteristics are a bit like salt that is prone to clumping. Material: SUS304. The shaft, blades, and inner walls are sprayed with ≥ 0.3mmWC, and transported horizontally over small distances.　　The conveying medium is anhydrous iron phosphate powder material, with a material temperature of 200 ℃ and a pH value of 1.8-2.5; Crushing and dynamic knife quenching treatment, with a tooth thickness of 8mm. The inside of the arch breaking valve is required to have no sharp edges, clean and free of residual metal and other powders. The inlet and outlet are closed, and the material is 304 with a copper content of ≤ 0.5%. After the arch breaking block material is bridged, it is evenly fed to the rotary valve through a screw conveyor.　　The arch breaking screw conveyor is used to crush materials Ca0. agglomerated materials, and partially poured materials. The material temperature is 200 ℃, and the feed particle size is expected to be 10% for materials with a particle size greater than 30mm. Some agglomerated materials can reach 50mm, and the discharge particle size is less than 10mm. The processing capacity is 15th, and the Ca0 bulk density is 0.7t/m ³. After breaking the arch, it is transported to the next location at a distance of 3.5m.　　Material: Agglomerated chemical products are corrosive and prone to clumping and blockage during material discharge from the silo. A combined arch breaking screw conveyor with a DN300 interface and 316L material is required, with a conveying distance of 2.5 meters and sealed with air lock. Weighing and measuring packaging is required below the discharge valve.　　Material: Aluminum oxide powder may clump and need to be broken and dispersed. It may form clumps when coming out of the drying equipment, with a conveying capacity of 2 tons per hour and a screw conveyor of 2-3 meters.　　The PEA powder with a particle size of 2-4mm is extruded into particles, and there is a finished product bin where bridging occurs. It is equipped with a pneumatic conveying discharge type rotary feeding valve, with a discharge capacity of 1.2 tons per hour and short distance conveying.　　DN200 arch breaking screw conveyor+rotary feeding valve, main material is SUS304. the surface of the valve body and blades is cold sprayed with ceramic 0.3mm; the surface of the two end cover plates is cold sprayed with ceramic 0.3mm; the inlet and outlet are HG/T20592 PN10 standard DN200 flat flanges: variable frequency reduction motor, energy efficiency level IE4. protection level IP55. insulation level F, shaft seal method is disc root+airtight seal, bearing material is SUS304; 5. Copper, iron, and zinc are prohibited in the contact and exposed parts of materials.　　Arch breaking screw conveyor+rotary valve, lithium carbonate: bulk density 370kg/cm2. DN300. contact material material: S30408. broken arch particle size: 2-5cm, design capacity: 2.5t/h, broken arch crushing ->screw conveyor ->rotary valve, sealing form: airtight seal, flow meter: WIKA/Chuanyi.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our arch breaking screw conveyor and rotary valve can handle various agglomerated particles, flakes, block materials, adhesives, agglomerated powders, bridging ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food and medicine.

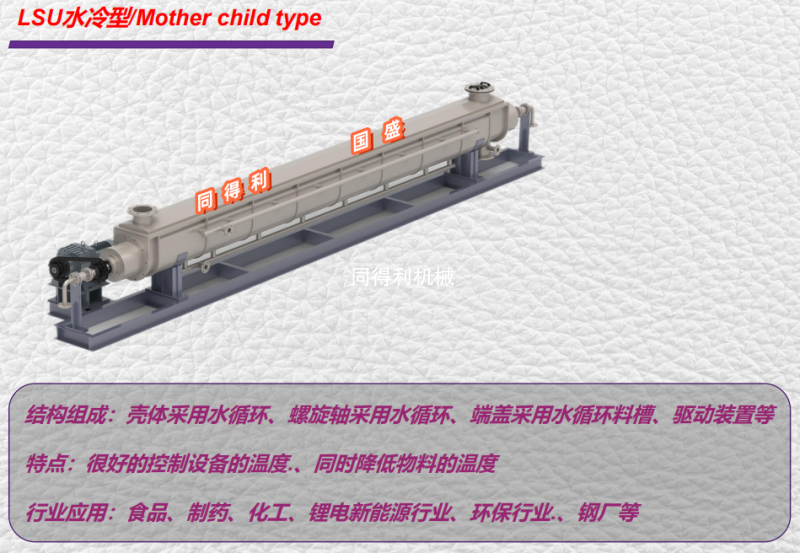

　　水冷螺旋输送机通常配备有冷却水循环系统，包括水泵、水箱、冷却器等设备。冷却水从水箱中被抽取出来，通过冷却器降温后再回流到输送机中进行循环使用。这样可以保证冷却水的供应和循环，提高降温效果。　　水冷螺旋输送机配备有专门的控制系统，用于监测和控制冷却水的供应和温度。控制系统可以根据物料的温度变化来自动调节冷却水的流量和温度，以达到降温效果。同时，控制系统还可以监测输送机的运行状态和冷却水循环系统的工作情况，确保整个设备的正常运行。　　Water cooled screw conveyors are usually equipped with cooling water circulation systems, including water pumps, water tanks, coolers, and other equipment. Cooling water is extracted from the water tank, cooled by the cooler, and then returned to the conveyor for recycling. This can ensure the supply and circulation of cooling water, and improve the cooling effect.　　The water-cooled screw conveyor is equipped with a dedicated control system for monitoring and controlling the supply and temperature of cooling water. The control system can automatically adjust the flow rate and temperature of the cooling water according to the temperature changes of the materials to achieve the cooling effect. At the same time, the control system can also monitor the operating status of the conveyor and the working condition of the cooling water circulation system to ensure the normal operation of the entire equipment.　　LSU水冷型螺旋输送机：　　结构组成：壳体采用水循环、螺旋轴采用水循环、端盖采用水循环料槽、驱动装置等。　　特点：很好的控制设备温度、同时降低物料的温度。1000℃以上按需定制。　　行业应用：钢厂、电厂、冶金、化工、锂电新能源行业、水泥、矿山、环保、食品、制药等。　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量1m³/h~450m³/h。【电话/微信咨询：陈经理18068546632】　　材质：陶瓷、碳化钨、钛合金、不锈钢、304(06Cr19Ni10)、310S(06Cr25Ni20)、316(06Cr17Ni12Mo2)。　　LSU water-cooled screw conveyor:　　Structural composition: The shell adopts water circulation, the spiral shaft adopts water circulation, the end cover adopts water circulation material trough, the driving device, etc.　　Features: Material positioning and conveying; View material flow through a transparent window.　　Industry applications: steel mills, power plants, metallurgy, chemical industry, lithium-ion new energy industry, cement, mining, environmental protection, food, pharmaceuticals, etc.　　水冷螺旋上料机降温机制：　　双层夹套水冷结构：　　输送槽体设计：采用内外双层壳体，中间形成5-15cm的水流通道。　　冷却水循环：冷水从进水口进入夹套，环绕输送槽流动后从出水口排出。　　热交换效率：通过304不锈钢材质的高导热性，可将物料温度从1000℃降至200℃以下。　　中空螺旋轴冷却：　　螺旋轴设计为空心管道，内部通入冷却水。　　旋转接头连接进出水管，实现动态密封供水。　　可配合槽体夹套形成"双通道冷却"系统。【电话/微信咨询：陈经理18068546632】　　Cooling mechanism of water-cooled spiral feeder:　　Double layer jacket water-cooled structure:　　Conveyor tank design: Adopting an inner and outer double-layer shell, forming a 5-15cm water flow channel in the middle.　　Cooling water circulation: Cold water enters the jacket from the inlet, flows around the conveyor trough, and is discharged from the outlet.　　Heat exchange efficiency: With the high thermal conductivity of 304 stainless steel material, the material temperature can be reduced from 1000 ℃ to below 200 ℃.　　Hollow spiral shaft cooling:　　The spiral shaft is designed as a hollow pipe with cooling water flowing inside.　　The rotary joint connects the inlet and outlet pipes to achieve dynamic sealing water supply.　　Can be combined with the groove jacket to form a "dual channel cooling" system.　　部分客户需求：　　负极材料一体化项目，水冷管式螺旋输送机：Q=0.2t/h;L=～4m(水平);α=～30°。物料：锂电负极材料;堆积密度：~900kg/m³;粒度≤2mm;物料温度~1000℃;排料温度：60~70℃，冷却介质：循环水;接口尺寸：670×670.　　水冷式螺旋给料机(带夹套水冷却)处理能力：0-5t/h;物料：粉尘(三元正极材料，纯粉末)物料温度：不超过300℃;松比：1.1-1.2kg/L;输送距离2000mm;使用电压：380VAC 50Hz;在输送物料的管上增加夹套，管内能输送物料，输送管外壁和夹套之间能通20℃的水，需要保证水不能和粉尘接触。用于粉尘冷却;输送管材质SUS304.内壁需要喷涂碳化钨或氧化铝陶瓷，防止物料直接和金属接触，喷涂物料要牢固，并且能耐温300℃。　　高温螺旋绞龙输送机，物料及粒度:高温煤粉≤1mm，干基物料堆密度:0.46t/m³，输送物料温度:400℃，螺旋机壳体材质15CrMo;螺旋轴材质:15CrMo;叶片材质:15CrMoR;使用变频电机(采用强制风冷)，电机功率5.5KW，电机防爆等级为ExdIICT3 Gb，防护等级为 IP55.电气接口采用不锈钢双密封防爆格兰头。电机厂家:上海电机、南阳防爆苏州特装、佳木斯;减速机厂家:国茂、泰隆。轴 承:哈、瓦、洛轴承。　　水冷螺旋输送机，600度，输送锂电池石墨粉，距离3米，水平输送，输送量2.5t/h，通水冷却。　　水冷绞龙输送机，活性炭，物料温度700~800℃，输送量0.5t/h，比重0.5.物料30-60目，进口口径DN200.输送距离2米，下方配星型卸料阀定量卸料。　　DN200.长度3500mm  物料炉渣  蕞高温度900度，水冷型螺旋输送机，一小时输送1吨。　　要水冷型螺旋给料机，环保设备，焚烧炉/锅炉卸灰，进料温度1000度(max)物料密度约700kg/m³，蕞大卸料量0.8立方米/h，材质：310S，输送距离2米，螺旋输送机下面装星型卸料器也需要水冷型。　　水冷型螺旋输送机，烟气和介质温度：~700-800℃;介质：NaCl;颗粒状，输送量：250kg/h;结构型式：水冷(壳体，螺旋轴和端盖);电机防护等级P55.马达绝缘等级F级，防爆等级:DIIBT4;减速机：国茂。　　旋转阀+冷却螺旋输送机+破碎阀，客户现在用的德国某品牌，输送pta,输送压力40kpa，下料速度太慢，影响输送速度，只有3吨/h，需要提高产能，水冷式冷却螺旋输送机水平输送，距离大致2~3米，物料高温，容易变性，且配合破碎阀打散破碎，破碎阀材质需要合金钢，法兰直径DN350.　　耐高温水冷螺旋输送机，物料温度七八百度，DN300.物料：烧出来的氧化镁，水平输送，短距离。　　水冷式螺旋上料机，物料：氧化钙粉末，800度，压力正常，5吨/h，输送距离3.5米，下方配套旋转阀。　　水冷却螺旋给料机，输送的碳材料，密度0.3.温度大概500度，一个进料螺旋，一个出料水冷却螺旋输送机，进料螺旋温度大概250度，输送距离3米。　　水冷型螺旋绞龙输送机+旋转阀，两款，一款常规304.一款需要耐高温600~700度，需要水冷却，物料秸秆，卸料量0.5吨~1吨，变频调速。旋转阀距离绞龙有段距离，但也需要耐高温型水冷式，通水冷却降温。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。   《扫二维码-添加 陈经理 微信-咨询水冷型螺旋上料机》　　Partial customer requirements:　　Negative electrode material integration project, water-cooled tube screw conveyor: Q=0.2t/h; L=~4m (horizontal); α=~30 °. Material: Lithium battery negative electrode material; Bulk density:~900kg/m ³; Particle size ≤ 2mm; material temperature~1000 ℃; Discharge temperature: 60-70 ℃, cooling medium: circulating water; Interface size: 670 × 670.　　Water cooled spiral feeder (with jacket water cooling) processing capacity: 0-5t/h; Material: Dust (ternary positive electrode material, pure powder) Material temperature: not exceeding 300 ℃; Pine ratio: 1.1-1.2kg/L; Conveying distance 2000mm; operating voltage: 380VAC 50Hz; Add a jacket on the pipe for conveying materials, which can transport materials inside the pipe. Water at 20 ℃ can be passed between the outer wall of the conveying pipe and the jacket, ensuring that the water does not come into contact with dust. Used for dust cooling; The material of the conveying pipe is SUS304. and the inner wall needs to be sprayed with tungsten carbide or alumina ceramic to prevent direct contact between the material and the metal. The sprayed material should be firm and able to withstand temperatures up to 300 ℃.　　High temperature spiral screw conveyor, material and particle size: high temperature coal powder ≤ 1mm, dry material bulk density: 0.46t/m ³, conveying material temperature: 400 ℃, spiral housing material 15CrMo; Spiral shaft material: 15CrMo; Blade material: 15CrMoR; Use a variable frequency motor (using forced air cooling) with a power of 5.5KW, an explosion-proof rating of ExdIICT3 Gb, a protection rating of IP55. and a stainless steel double sealed explosion-proof gland head for the electrical interface. Motor manufacturers: Shanghai Electric, Nanyang Explosion proof Suzhou Special Installation, Jiamusi; Gearbox manufacturers: Guomao, Tailong. Bearings: Ha, Wa, Luo bearings.　　Water cooled screw conveyor, 600 degrees, conveying lithium battery graphite powder, distance of 3 meters, horizontal conveying, conveying capacity of 2.5t/h, water-cooled.　　Water cooled screw conveyor, activated carbon, material temperature 700~800 ℃, conveying capacity 0.5t/h, specific gravity 0.5. material 30-60 mesh, inlet diameter DN200. conveying distance 2 meters, equipped with a star shaped discharge valve below for quantitative discharge.　　DN200. The maximum temperature of slag for a material with a length of 3500mm is 900 degrees. It is a water-cooled screw conveyor that can transport 1 ton per hour.　　We need a water-cooled spiral feeder, environmentally friendly equipment, incinerator/boiler ash discharge, with a feed temperature of 1000 degrees (max), a material density of about 700kg/m ³, a maximum discharge capacity of 0.8 cubic meters/h, a material of 310S, a conveying distance of 2 meters, and a star shaped unloader installed under the spiral conveyor that also needs to be water-cooled.　　Water cooled screw conveyor, flue gas and medium temperature:~700-800 ℃; Medium: NaCl; Granular, conveying capacity: 250kg/h; Structural type: water-cooled (shell, spiral shaft, and end cap); Motor protection level P55. motor insulation level F, explosion-proof level DIIBT4; Gearbox: Guomao.　　Rotary valve+cooling screw conveyor+crushing valve, the customer is currently using a German brand for conveying PTA, with a conveying pressure of 40kpa. The feeding speed is too slow, affecting the conveying speed, only 3 tons/h. It is necessary to increase production capacity. The water-cooled cooling screw conveyor is used for horizontal conveying, with a distance of approximately 2-3 meters. The material is hot and prone to denaturation, and it needs to be broken with a crushing valve. The material of the crushing valve needs alloy steel with a flange diameter of DN350.　　High temperature resistant water-cooled screw conveyor, material temperature of 70-80 degrees Celsius, DN300. Material: Burnt magnesium oxide, horizontally transported, short distance.　　Water cooled spiral feeder, material: calcium oxide powder, 800 degrees, normal pressure, 5 tons/h, conveying distance of 3.5 meters, equipped with a rotary valve below.　　Water cooled screw feeder, conveying carbon material with a density of 0.3 and a temperature of approximately 500 degrees. There is one feeding screw and one discharging water cooled screw conveyor, with a feeding screw temperature of approximately 250 degrees and a conveying distance of 3 meters.　　Water cooled spiral screw conveyor with rotary valve, two types, one is conventional 304. and the other requires high temperature resistance of 600-700 degrees and water cooling. The material is straw, with a discharge capacity of 0.5 tons to 1 ton and variable frequency speed regulation. The rotary valve is located at a certain distance from the winch, but it also requires a high-temperature resistant water-cooled type with water cooling for cooling.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

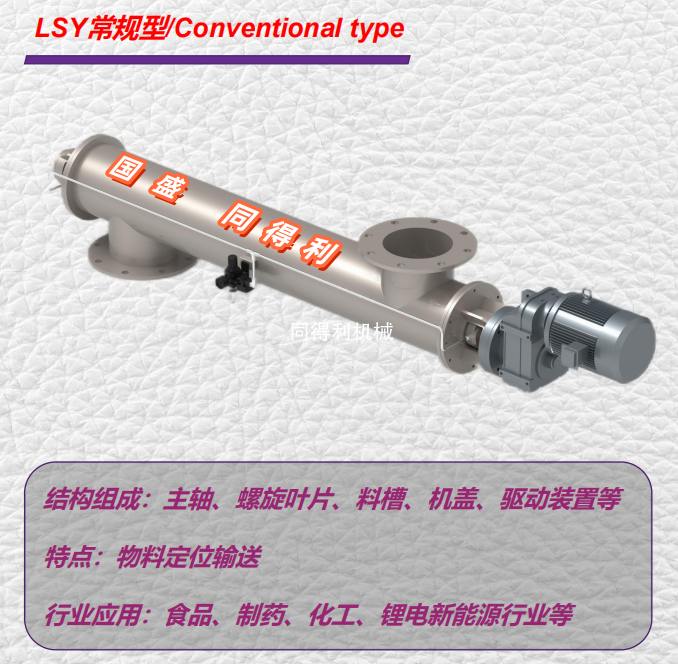

　　管式螺旋输送机‌俗称“绞龙输送机”，是一种利用旋转螺旋叶片在密闭圆管内推移物料的连续输送设备，核心特点是‌全封闭防尘‌且能‌水平或小倾角输送‌粉末、颗粒状物料 。螺旋轴转动时，物料因自身重力和与管壁的摩擦力不会跟着转，而是被叶片沿着管道轴线方向向前推移 。整个过程属于容积式输送，只要螺旋轴保持旋转，物料流就会持续 稳定，特别适合定量给料工况 。　　Pipe spiral conveyor, commonly known as "screw conveyor", is a continuous conveying equipment that uses rotating spiral blades to push materials inside a closed circular pipe. Its core feature is fully enclosed dust prevention and the ability to transport powder and granular materials horizontally or at a small angle. When the spiral shaft rotates, the material will not follow the rotation due to its own gravity and friction with the pipe wall, but will be pushed forward along the axis of the pipeline by the blades. The entire process belongs to volumetric conveying, as long as the spiral shaft keeps rotating, the material flow will continue to be stable, especially suitable for quantitative feeding conditions.　　LSY常规型管式螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：物料定位输送;透明视窗查看物料流动。　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。　　规格参考‌：螺旋直径有LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200等规格，或者非标定制;输送量1m³/h~500m³/h。【电话/微信咨询：陈经理18068546632】　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)　　LSY Conventional Pipe Spiral Conveyor:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.　　Features: Material positioning and conveying; View material flow through a transparent window.　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.　　Specification reference: Spiral diameter available LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200 Equal specifications or non-standard customization; The conveying capacity is 1m ³/h~500m ³/h.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.　　部分客户需求：　　物料为磷酸铁锂锂电使用，DN300.产能3.6t/h，易清理型螺旋输送机：材质：壳体材质 304 ，与物料接触部分喷涂非金属材质(首 选陶瓷氧化铝)，喂料产能 1~3.6t/h，驱动选用SEW、FLENDER、住友等外资品牌。　　输送物料名称：三聚氯氰粉末，堆积密度(kg/m³)：800;粒度/粒径范围(mm)：≤1cm;物料温度(℃)：70℃(粉碎后物料温度，预估值);物料湿度/含水量(%)：<1%;物料流动性：良好;磨琢性：中等;腐蚀性：遇水分解产物为盐酸，腐蚀性较强。其他特性：易吸潮;输送能力：设计蕞大输送量(Qmax)：800kg/h，即 1m³/h;设计蕞小输送量(Qmin)：250kg/h，即 0.32m³/h;正常操作范围：500kg/h，即 0.625m³/h;输送距离/长度(L)：4m 。输送方向：水平;进料口位置：顶部中心 法兰型式 HG/T 20592 2009 B 系列 PN16 WN-RF 密封面;出料口位置：底部中心 法兰型式 HG/T 20592 2009 B 系列 PN16 WN-RF 密封面;料仓接口法兰尺寸/标准：DN100 PN16.　　输送产能20~25t/h;输送距离约为5m，壳体和叶片为304不锈钢，厚度>3mm;粉尘防爆电机(含适配减速机)，不低于21区防爆等级，功率>3KW，不低于二级能效，防护等级>IP65.电机参考品牌:SEW、ABB、茵梦达;下料斗为304不锈钢，厚度>3mm，高度和宽度尺寸与卸粮车适配，配可拆式不锈钢筛网;参考尺寸:下料斗高度<800mm，长度>1600mm，宽度>1000mm;下料斗有完全遮挡的盖板，304不锈钢材质，厚度>2mm，配置把手;螺旋轴整轴安装，304不锈钢材质;螺旋盖板便捷式开始，螺旋盖板304不锈钢材质，厚度>2mm。　　替代意大利威埃姆WAMGROUP：型号：.SCR_TP螺旋输送机 直径 400 毫米，长度 9000 毫米，TE 400_CI-CO 型管状螺旋给料机，长度 9000 毫米。重型螺旋应用类型：标准型螺旋直径：400 毫米;螺旋类型：管状截面输送螺旋;螺旋材质：全碳钢;进出口长度：9000 毫米圆形 XBC;进料口 直径 457 毫米，带法兰 螺旋倾角：20°圆形 XBC ;出料口 直径 457 毫米，带法兰 ;螺旋叶片材质：全软钢(低碳钢);螺旋叶片螺距：2/3 螺距 + 等螺距2/3 ;螺距段长度：4000 毫米;内管直径：114 毫米;电机位置：进料口端;电机极数：4 极;传动方式：联轴器;联轴器类型：链条驱动;功率：22 千瓦;供电频率：50 赫兹;配置 WAM。　　替代意大利威埃姆WAMGROUP：型号：.SCR_TP螺旋输送机，直径 400 毫米，长度 4100 毫米，TE 400_CI-CO 型管状螺旋给料机，长度 4100 毫米，重型螺旋应用类型：标准型螺旋，直径：400 毫米，螺旋类型：管状截面输送螺旋，螺旋材质：全碳钢，进出口长度：4100 毫米圆形 XBC。进料口 直径 457 毫米，带法兰;螺旋倾角：20°圆形 XBC;出料口 直径 457 毫米，带法兰;螺旋叶片材质：全软钢(低碳钢);螺旋叶片螺距：2/3 螺距 + 等螺距2/3;螺距段长度：4000 毫米。轴承进料口端轴承密封：XUC;表面处理：300TA;底漆理论输送量：141 立方米/小时。　　输送煤粉，螺旋接触物料材质310S，数量2台，螺旋外管Ø377*6MM 轴管Ø159*12mm;叶片厚8mm，进出料口500*400.出料口上方开方口240*300.配盖板。盖板中心焊接DN50内丝堵头排气管，电机7.5KW变频 减速机BLD4-23r/min。　　物料：化工粉料，DN100.DN150.材质304.长度2米。螺旋上料机DN100内抛光,物料接触材质SS304.物料五氯化磷;DN100 内抛光-SS304-物料活性炭,活性自土;DN100 内抛光-SS304-物料氢氧化钠+氢氧化钾;DN150 内抛光-SS304-物料六苯氧基环三磷腈;DN150 内抛光-SS304-六氯环三磷腈，水平输送，长度4米。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。《扫二维码-添加 陈经理 微信-咨询管式螺旋输送机》　　Partial customer requirements:　　The material is used for lithium iron phosphate batteries, DN300. Capacity of 3.6t/h, easy to clean screw conveyor: Material: shell material 304. non-metallic material sprayed on the part in contact with the material (ceramic alumina is preferred), feeding capacity of 1-3.6t/h, drive selected from foreign brands such as SEW, FLENDER, Sumitomo, etc.　　Material name: Cyanuric chloride powder, bulk density (kg/m ³): 800; Particle size/particle size range (mm): ≤ 1cm; Material temperature (℃): 70 ℃ (estimated value of material temperature after crushing); Material humidity/moisture content (%):<1%; Material fluidity: good; Grinding ability: moderate; Corrosivity: When in contact with water, the decomposition product is hydrochloric acid, which has strong corrosiveness. Other characteristics: easy to absorb moisture; Conveying capacity: Design maximum conveying capacity (Qmax): 800kg/h, which is 1m ³/h; Design minimum conveying capacity (Qmin): 250kg/h, which is 0.32m ³/h; Normal operating range: 500kg/h, which is 0.625m ³/h; Conveying distance/length (L): 4m. Transport direction: horizontal; Inlet position: Top center flange type HG/T 20592 2009 B series PN16 WN-RF sealing surface; Discharge outlet position: Bottom center flange type HG/T 20592 2009 B series PN16 WN-RF sealing surface; Warehouse interface flange size/standard: DN100 PN16.　　Conveying capacity of 20-25t/h; The conveying distance is about 5m, the shell and blades are made of 304 stainless steel, with a thickness of>3mm; the dust explosion-proof motor (including compatible reducer) has an explosion-proof rating of not less than Zone 21. a power of>3KW, not less than Level 2 energy efficiency, and a protection level of>IP65. The motor reference brands are SEW, ABB, and Innovent; The feeding hopper is made of 304 stainless steel, with a thickness greater than 3mm, and its height and width dimensions are compatible with the unloading truck. It is equipped with a detachable stainless steel screen mesh; Reference dimensions: The height of the hopper is less than 800mm, the length is greater than 1600mm, and the width is greater than 1000mm; the hopper has a completely covered cover plate, made of 304 stainless steel, with a thickness greater than 2mm, and equipped with a handle; Spiral shaft installation, made of 304 stainless steel material; Spiral cover plate convenient start, spiral cover plate made of 304 stainless steel material, thickness>2mm.　　Alternative to WAMGROUP Italy: Model: SCR_TP screw conveyor with a diameter of 400 millimeters and a length of 9000 millimeters, TE 400_CI-CO tubular screw feeder with a length of 9000 millimeters. Heavy duty spiral application type: Standard spiral diameter: 400 millimeters; Spiral type: tubular cross-section conveying spiral; Spiral material: all carbon steel; Import and export length: 9000 millimeters circular XBC; Inlet diameter 457mm, with flange spiral inclination angle: 20 ° circular XBC; Discharge port diameter 457mm, with flange; Spiral blade material: all soft steel (low carbon steel); Spiral blade pitch: 2/3 pitch+equal pitch 2/3; Pitch segment length: 4000 millimeters; Inner tube diameter: 114 millimeters; Motor position: feed inlet end; Number of motor poles: 4 poles; Transmission mode: coupling; Coupling type: chain drive; Power: 22 kilowatts; Power supply frequency: 50 Hz; Configure WAM.　　Alternative to WAMGROUP Italy: Model: SCR_TP screw conveyor, diameter 400mm, length 4100mm, TE 400_CI-CO tubular screw feeder, length 4100mm, heavy-duty screw application type: standard screw, diameter 400mm, screw type: tubular section conveying screw, screw material: all carbon steel, inlet and outlet length: 4100mm circular XBC. Inlet diameter 457mm, with flange; Spiral inclination angle: 20 ° circular XBC; Discharge port diameter 457mm, with flange; Spiral blade material: all soft steel (low carbon steel); Spiral blade pitch: 2/3 pitch+equal pitch 2/3; Pitch segment length: 4000 millimeters. Bearing inlet end bearing seal: XUC; Surface treatment: 300TA; Theoretical delivery capacity of primer: 141 cubic meters per hour.　　Conveying coal powder, spiral contact material material 310S, quantity 2. spiral outer tube Ø 377 * 6MM shaft tube Ø 159 * 12mm; blade thickness 8mm, inlet and outlet 500 * 400. square outlet above outlet 240 * 300. equipped with cover plate. The center of the cover plate is welded with a DN50 internal plug exhaust pipe, and the motor is 7.5KW variable frequency reducer BLD4-23r/min.　　Material: Chemical powder, DN100.DN150. Material 304. length 2 meters. Spiral feeder DN100 internal polishing, material contact material SS304. Material phosphorus pentachloride; DN100 internally polished SS304 material activated carbon, activated from soil; DN100 internal polishing - SS304- material sodium hydroxide+potassium hydroxide; DN150 internal polishing SS304 material hexaphenoxycyclotriphosphazene; DN150 internally polished SS304 hexachlorocyclotriphosphazene, horizontally transported, length 4 meters.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

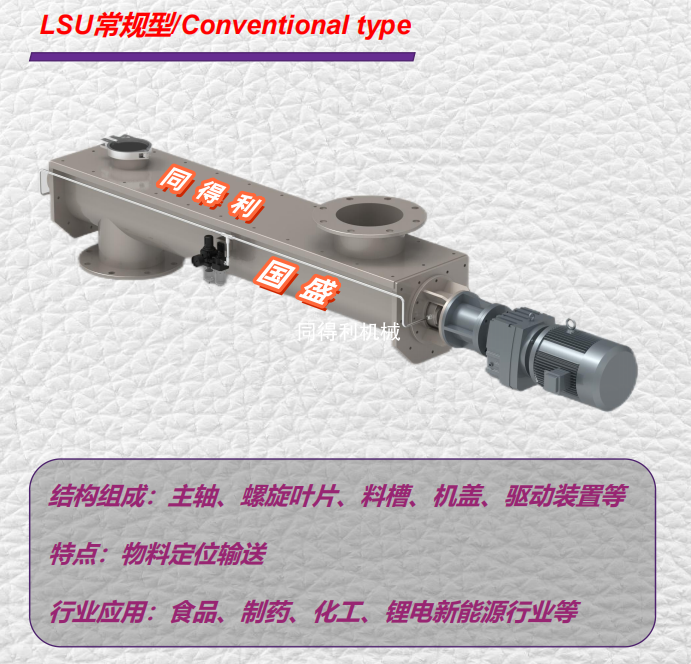

　　U型螺旋输送机利用‌旋转螺旋叶片‌在U型槽体内产生轴向推力，使物料沿槽底向前移动，其运动机理类似“不可旋转的螺母沿旋转螺杆平移”。‌‌槽体呈“U”形(底部半圆、两侧垂直)、顶部可配可拆卸密封盖板，适用于粉体、颗粒及小块状物料的水平或小倾角输送 。‌‌　　The U-shaped screw conveyor utilizes rotating spiral blades to generate axial thrust within the U-shaped groove, causing the material to move forward along the groove bottom. Its motion mechanism is similar to that of a non rotatable nut translating along a rotating screw. The tank body is in a "U" shape (with a semi-circular bottom and vertical sides), and the top can be equipped with a detachable sealing cover plate, suitable for horizontal or small angle transportation of powders, particles, and small block materials. ‌‌　　LSU常规型U型螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：物料定位输送;透明视窗查看物料流动。　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、电力等。　　规格参考‌：螺旋直径有LSU80、LSU100、LSU150、LSU200、LSU250、LSU300、LSU400、LSU500、LSU600、LSU800、LSU1000、LSU1200等规格，或者非标定制;输送量1m³/h~460m³/h。　　主要材质：不锈钢304-316、钛合金、铝合金、各种合金、陶瓷系列、碳化钨、特氟龙、尼龙、四氟、聚氨酯、碳钢等。【电话/微信咨询：陈经理18068546632】　　LSU conventional U-shaped screw conveyor:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.　　Features: Material positioning and conveying; View material flow through a transparent window.　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, electricity, etc.　　Specification reference: Spiral diameter available LUS80、LUS100、LUS150、LUS200、LUS250、LUS300、LUS400、LUS500、LUS600、LUS800、LUS1000、LUS1200 Equal specifications or non-standard customization; The conveying capacity ranges from 1m ³/h to 460m ³/h.　　Main materials: stainless steel 304-316. titanium alloy, aluminum alloy, various alloys, ceramic series, tungsten carbide, PTFE, nylon, PTFE, polyurethane, carbon steel, etc.　　电机带动螺旋轴旋转‌，焊在轴上的螺旋叶片产生推力，将进入进料口的物料向前推移 。物料不随螺旋叶片一起转‌，由于自身重力和槽壁摩擦力作用，物料以滑动方式沿U型槽底向前移动，从出料口排出 。U型槽体上部可选开放式或者加盖密封‌，运行过程中粉尘不外扬，或选择透明视窗，便于观察物料流动状况。　　支持在输送线任意点进行‌多点进料或多点卸料‌，方向可逆;输送过程中可同步实现搅拌、混合、加热或冷却等工艺处理 。　　横截面积小，占地少;采用高强度螺旋轴与耐磨叶片，运行平稳，适合长周期稳定承载各类散料 。‌‌　　U型螺旋输送机适宜‌水平或倾角≤15°‌(部分放宽至20°)的短距离输送;单轴长度通常不超过10米，过长需双轴驱动且效率下降，每升高5°倾角输送效率约降低15% 。水平输送长度小于10米用单轴驱动，大于10米用双轴驱动，双轴款还能混合搅拌且输送量提升1.5-2倍 。　　部分客户需求：　　物料：磷酸铁锂/石墨类，物料堆积比重0.3~1.2g/㎝³，尺寸DN250.流量要求：≥3t/h，材质SUS304.设备要求禁铜禁锌，水平输送≤3000mm。　　磷酸铁锂物料，环境温度40~50℃，颗粒大小<5um，流动性较好，输送量1t/h，入口/出口压力0.4KPa，物料温度30~80℃，尺寸规格DN200.禁铜锌，SS304.减速机SEW。　　物料：200目的纤维素粉末，一小时5吨输送量，尺寸200.材质304.水平输送2m，加装透明视窗以便观察物料流动状态。　　螺旋绞龙上料机选型：物料为小盐粒，颗粒度直径蕞大2cm。希望从地面料斗输送至两三米高的料仓中，料仓和物料温度70℃左右。间歇变频运行，每小时0.3至1.5立方。因为有腐蚀和轻微粘度，需要304不锈钢加喷涂特氟龙。　　物料;碳粉，粒径10mm，输送高度1m，输送量400kg/h，材质不锈钢。　　物料：石灰石，U型螺旋输送机(粉罐出口)LSU500-6M-15KW，80吨/小时，比重27~29.直径500.　　输送产能20~25t/h;输送距离约为5m，壳体和叶片为304不锈钢，厚度>3mm;粉尘防爆电机(含适配减速机)，不低于21区防爆等级，功率>3KW，不低于二级能效，防护等级>IP65.电机参考品牌:SEW、ABB、茵梦达;下料斗为304不锈钢，厚度>3mm，高度和宽度尺寸与卸粮车适配，配可拆式不锈钢筛网;参考尺寸:下料斗高度<800mm，长度>1600mm，宽度>1000mm;下料斗有完全遮挡的盖板，304不锈钢材质，厚度>2mm，配置把手;螺旋轴整轴安装，304不锈钢材质;螺旋盖板便捷式开始，螺旋盖板304不锈钢材质，厚度>2mm;轴承双向密封，旋转部位有防护严密的保护罩;配套电缆和插头。【电话/微信咨询：陈经理18068546632】　　介质：锂电粉料，粒径：>1mm，占比约70%，常温。变频调速电机，型号规格：LSU300.材质：与物料接触304+纳米陶瓷涂层(厚度：喷涂工艺0.3mm以上，冷刷工艺0.6mm);密封：填料+气密封;输送速度：1-10m³/h。　　介质：2-4mm粒径的PEA粉末挤压成的颗粒;有一个成品料仓，需要配水平式U型螺旋输送机和重力卸料型旋转给料阀，一小时出料量1~2吨，输送距离1.5m。　　介质：粉料，AT168抗氧剂，50-80目，450~560Kg/cm³，60~70℃，输送量5200kg/h，距离2米，材质SUS304.　　我们定制/采购U型螺旋绞龙输送机输送物料时，如何才能选择合适的厂家?　　选择实力强的厂家，一般来说U型螺旋绞龙输送机厂家可以见证产品的质量，实力强的厂家可为客户提供更好的产品质量和服务。要看厂家的实力、信誉、规模。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。  《扫二维码-添加 陈经理 微信-咨询U型螺旋上料机》　　The motor drives the spiral shaft to rotate, and the spiral blades welded to the shaft generate thrust, pushing the material entering the feeding port forward. The material does not rotate with the spiral blades. Due to its own gravity and the friction of the groove wall, the material moves forward along the bottom of the U-shaped groove in a sliding manner and is discharged from the discharge port. The upper part of the U-shaped tank can be either open or sealed with a lid, preventing dust from escaping during operation, or a transparent window can be selected for easy observation of material flow conditions.　　Support multi-point feeding or unloading at any point on the conveyor line, with reversible direction; During the transportation process, process treatments such as stirring, mixing, heating, or cooling can be achieved synchronously.　　Small cross-sectional area, occupying less land; Adopting high-strength spiral shaft and wear-resistant blades, it runs smoothly and is suitable for long-term stable bearing of various bulk materials. ‌‌　　U-shaped screw conveyor is suitable for short distance transportation with horizontal or inclined angle ≤ 15 ° (partially relaxed to 20 °); The single axis length usually does not exceed 10 meters. If it is too long, dual axis drive is required and the efficiency decreases. The conveying efficiency decreases by about 15% for every 5 ° increase in inclination angle. For horizontal conveying lengths less than 10 meters, single axis drive is used, while for lengths greater than 10 meters, dual axis drive is used. The dual axis version can also mix and stir, and the conveying capacity can be increased by 1.5-2 times.　　Partial customer requirements:　　Material: Lithium iron phosphate/graphite, with a bulk density of 0.3~1.2g/cm ³, size of DN250. flow rate requirement: ≥ 3t/h, material SUS304. equipment requirement of copper and zinc prohibition, horizontal conveying ≤ 3000mm.　　Lithium iron phosphate material, ambient temperature 40~50 ℃, particle size<5um, good flowability, conveying capacity 1t/h, inlet/outlet pressure 0.4KPa, material temperature 30~80 ℃, size specification DN200. copper zinc prohibited, SS304. Gearbox SEW.　　Material: 200 mesh cellulose powder, with a conveying capacity of 5 tons per hour, size 200. material 304. horizontally conveyed for 2 meters, equipped with a transparent window for observing the flow state of the material.　　Spiral auger feeding machine selection: The material is small salt particles with a particle size diameter of up to 2cm. We hope to transport it from the ground hopper to a material bin two or three meters high, with a temperature of about 70 ℃ for both the bin and the material. Intermittent variable frequency operation, 0.3 to 1.5 cubic meters per hour. Due to corrosion and slight viscosity, 304 stainless steel needs to be coated with Teflon.　　material Carbon powder, particle size 10mm, conveying height 1m, conveying capacity 400kg/h, material stainless steel.　　Material: Limestone, U-shaped screw conveyor (powder tank outlet) LSU500-6M-15KW, 80 tons/hour, specific gravity 27-29. diameter 500.　　Conveying capacity of 20-25t/h; The conveying distance is about 5m, the shell and blades are made of 304 stainless steel, with a thickness of>3mm; the dust explosion-proof motor (including compatible reducer) has an explosion-proof rating of not less than Zone 21. a power of>3KW, not less than Level 2 energy efficiency, and a protection level of>IP65. The motor reference brands are SEW, ABB, and Innovent; The feeding hopper is made of 304 stainless steel, with a thickness greater than 3mm, and its height and width dimensions are compatible with the unloading truck. It is equipped with a detachable stainless steel screen mesh; Reference dimensions: The height of the hopper is less than 800mm, the length is greater than 1600mm, and the width is greater than 1000mm; the hopper has a completely covered cover plate, made of 304 stainless steel, with a thickness greater than 2mm, and equipped with a handle; Spiral shaft installation, made of 304 stainless steel material; Spiral cover plate convenient start, spiral cover plate made of 304 stainless steel material, thickness>2mm; bearing bi-directional sealing, rotating parts have tight protective covers; Matching cables and plugs.　　Medium: Lithium battery powder, particle size:>1mm, accounting for about 70%, at room temperature. Variable frequency speed regulating motor, model and specification: LSU300. material: 304+nano ceramic coating in contact with the material (thickness: spraying process above 0.3mm, cold brushing process 0.6mm); Sealing: packing+airtight seal; Conveying speed: 1-10m ³/h.　　Medium: particles extruded from PEA powder with a particle size of 2-4mm; There is a finished product silo that requires a horizontal U-shaped screw conveyor and a gravity discharge rotary feeding valve. The discharge capacity is 1-2 tons per hour, and the conveying distance is 1.5m.　　Medium: Powder, AT168 antioxidant, 50-80 mesh, 450~560Kg/cm ³, 60~70 ℃, conveying capacity 5200kg/h, distance 2 meters, material SUS304.　　How can we choose a suitable manufacturer when customizing/purchasing U-shaped screw conveyor for conveying materials?　　Choose a manufacturer with strong capabilities. Generally speaking, manufacturers of U-shaped spiral screw conveyors can witness the quality of their products. Strong manufacturers can provide customers with better product quality and services. It depends on the strength, reputation, and scale of the manufacturer.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

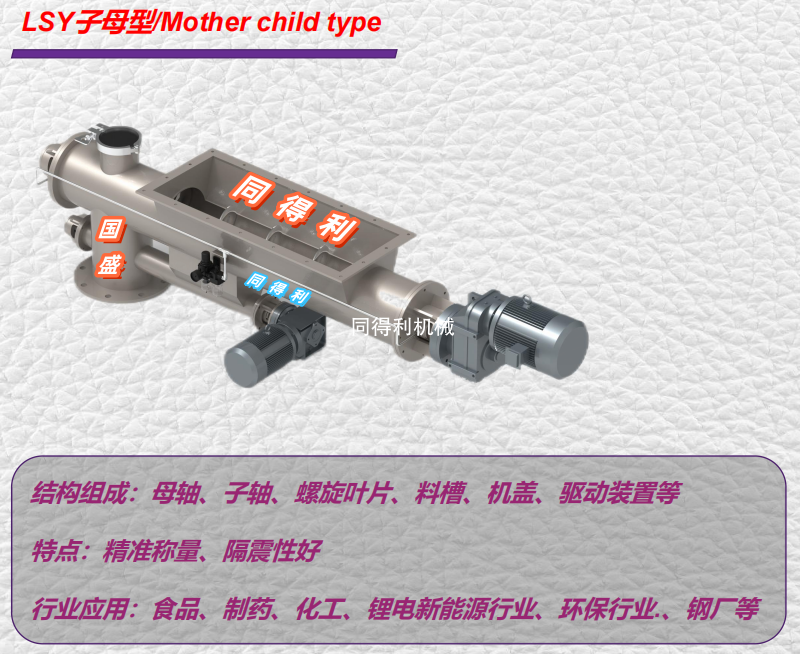

　　子母螺旋输送机(又称精称型螺旋输送机)的核心工作原理是通过‌“主机快速喂料 + 子机微量精补”‌的双阶段协同控制，实现物料输送与高精度称量的完 美结合 。‌‌　　The core working principle of the mother-daughter screw conveyor (also known as the precision weighing screw conveyor) is to achieve a perfect combination of material conveying and high-precision weighing through a two-stage collaborative control of "rapid feeding by the main machine + precise fine replenishment by the daughter machine".　　LSY子母型螺旋输送机：　　结构组成：母轴、子轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：精准称量，隔振性能好。　　行业应用：锂电新能源、制药、化工、食品、环保行业、电厂、钢厂等。　　材质：Q235、304、310S、316L、TC4等。　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。【电话/微信咨询：陈经理18068546632】　　LSY sub-type screw conveyor:　　Structural composition: main shaft, sub-shaft, spiral blade, material chute, machine cover, drive device, etc.　　Features: Precise weighing, good vibration isolation performance.　　Industry applications: lithium-ion new energy, pharmaceuticals, chemical industry, food, environmental protection industry, power plants, steel mills, etc.　　Material: Q235. 304. 310S, 316L, TC4. etc.　　Treatment: mirror surface, tungsten carbide, Teflon, ceramic powder, PTFE lining, etc.　　模块化组合‌：“子”与“母”可根据工艺需求灵活配置转速、转向及螺旋叶片形式。　　子母螺旋输送机由‌母轴‌和‌子轴组成，两者共用或独立驱动，通过时序控制完成一个完整的称量周期：　　快速喂料阶段（母轴主导）‌　　在称量周期初期，‌母轴全速运转，利用大螺距或高转速产生强大的轴向推力，将物料快速输送至计量仓 。　　此阶段目标是缩短非称量时间，提高整体生产效率，此时子机通常处于关闭或待机状态 。　　‌精确补料阶段（子轴主导）‌　　当物料接近目标重量时，‌母轴关闭‌停止进料，防止过量 。　　‌子轴启动(或单独低速运行)，利用小直径、小螺距或低转速特性，对物料进行‌微量、平稳‌的推送 。　　此阶段依靠子轴的精细推力克服物料惯性，确保蕞终落料重量精准落在允许误差范围内，满足高精度称量需求 。‌‌精度±1g，±10g，±50g，±100g，±200g，±500g以内等，按需定制。　　精确称量场合‌：适用于需周期性精确称量场合物料的输送，又称精称型螺旋输送机。‌‌‌　　行业应用：　　锂电行业：精准称重计量、小型螺旋绞龙喂料装置。　　化工制药：粉状、粒状物料的精确给料。‌‌‌　　食品行业：粉体、小颗粒的精确配比卸料给料。　　水泥行业：粉状外加剂配料系统、水泥螺旋输送。　　物料类型‌：主要用于粉状外加剂等松散物料的输送，不宜输送易变质、粘性大、易结块的物料。‌‌　　部分客户需求：　　精确计量型螺旋输送机，物料：锂电负极材料;堆积密度：~900kg/m³;粒度≤2mm;物料温度~100℃;排料温度：60~70℃，螺旋接口尺寸：670×670mm，需精确给料。　　物料：活性钙粉，DN200.给料量0.2-2m3/h，304材质，变频，需要精确给，水平输送，输送距离3~4米。　　物料：粉料，需要精确计量的，误差±100g，比重1.2.15分钟100公斤料卸完，然后卸另一种料，气力输送，真空上料机，下面是粉料称，称重的，输送距离1.5m，需要推荐一款合适的子母型螺旋输送机。　　自重下料，需要与称重台秤配合，精确控制供料重量，精准给料±100g，有哪些尺寸?选型推荐，与粉料接触的零部件材料用不锈钢316或者陶瓷之类的，水平输送距离2m。　　精确给料螺旋输送机连接料仓，通过变频调节，均匀定量的将粉末活性炭投加到溶解罐中，给料能力:3m3/h，尺寸DN250.材质316.　　输送石膏粉物料，25分钟完成精确计量，要求进料量6吨，输送距离5米，材质不锈钢304.　　破拱器+计量螺旋输送机，物料石灰，碳酸钠，比重1~1.2.无腐蚀性，干粉，料仓50立方，输送量300~500kg/h，料仓下面接破拱≥DN350.和螺旋输送机，螺旋出料口精确计量，称重装置，螺旋到反应釜5米，材质碳钢。　　绞龙螺旋输送机生产厂家采购指南：　　在采购该螺旋输送机设备时需将物料的颗粒度大小、物料密度、输送量、输送距离与输送角度告知生产厂家--常州同得利，由同得利帮您选型，如果您对该参数不了解时，应由同得利委派技术人员现场实际测量、设计生产。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。  《扫二维码-添加 陈经理 微信-咨询子母型螺旋输送机》　　Modular combination: The "child" and "parent" can be flexibly configured in terms of speed, direction, and spiral blade form according to process requirements.　　The sub-master screw conveyor consists of a master shaft and a sub-shaft, which can be driven together or independently. It completes a complete weighing cycle through timing control:　　Rapid feeding stage (driven by the main shaft)　　At the beginning of the weighing cycle, the main shaft rotates at full speed, utilizing a large pitch or high rotational speed to generate strong axial thrust, rapidly conveying the material to the metering bin.　　The goal of this stage is to shorten non-weighing time and improve overall production efficiency. At this time, the sub-machine is usually in a closed or standby state.　　Precise feeding stage (sub-axis-driven)　　When the material approaches the target weight, the main shaft closes to stop feeding to prevent excess.　　The sub-shaft is activated (or operated at low speed independently), utilizing its small diameter, small thread pitch, or low rotational speed characteristics to gently and steadily push the material in small amounts.　　At this stage, the fine thrust of the sub-axis is relied upon to overcome the inertia of the material, ensuring that the final material weight falls within the allowable error range and meets the high-precision weighing requirements. Accuracy within ±1g, ±10g, ±50g, ±100g, ±200g, ±500g, etc., can be customized as needed.　　Precision weighing application: It is suitable for conveying materials that require periodic precise weighing, also known as precision weighing screw conveyor. ‌‌‌　　Industry applications:　　Lithium battery industry: precise weighing and metering, small spiral auger feeding device.　　Chemical and pharmaceutical industry: precise feeding of powdered and granular materials. ‌‌‌　　Food industry: precise proportioning, unloading, and feeding of powder and small particles.　　Cement industry: powder admixture batching system, cement screw conveyor.　　Material type: Primarily used for conveying loose materials such as powdered admixtures. Not suitable for conveying materials that are prone to deterioration, have high viscosity, or tend to agglomerate.　　Some customer requirements:　　Precision metering screw conveyor, material: lithium battery anode material; bulk density: ~900kg/m³; particle size ≤2mm; material temperature ~100℃; discharge temperature: 60~70℃, screw interface size: 670×670mm, requiring precise feeding.　　Material: active calcium powder, DN200. feeding rate 0.2-2m3/h, 304 material, variable frequency, precise feeding required, horizontal conveying, conveying distance 3~4 meters.　　Material: powder material, requiring precise measurement with an error margin of ±100g, specific gravity of 1.2. capable of unloading 100 kilograms of material in 15 minutes, followed by unloading another type of material. It is pneumatically conveyed using a vacuum feeder. Below is a powder material scale for weighing. The conveying distance is 1.5m. A suitable mother-daughter type screw conveyor is recommended.　　For self-weight feeding, it is necessary to cooperate with a weighing platform scale to precisely control the feeding weight, achieving an accuracy of ±100g. What are the available sizes? Regarding model selection recommendations, the materials for parts that come into contact with powdered materials should be stainless steel 316 or ceramics. The horizontal conveying distance is 2m.　　The precise feeding screw conveyor is connected to the material silo, and through frequency control, it evenly and quantitatively dispenses powdered activated carbon into the dissolving tank. The feeding capacity is 3m3/h, the size is DN250. and the material is 316.　　Transport gypsum powder material, complete precise metering in 25 minutes, requiring a feeding capacity of 6 tons, a conveying distance of 5 meters, and a material of stainless steel 304.　　The combination of an arch breaker and a metering screw conveyor is used to transport materials such as lime and sodium carbonate, with a specific gravity ranging from 1 to 1.2. These materials are non-corrosive, dry powder, stored in a 50 cubic meter silo, with a conveying capacity of 300 to 500 kg/h. The silo is connected to an arch breaker with a diameter of ≥DN350. and to the screw conveyor. The screw discharge port features precise metering and a weighing device. The screw conveyor is 5 meters away from the reaction kettle, and is made of carbon steel.　　For self-weight feeding, it is necessary to cooperate with a weighing platform scale to precisely control the feeding weight, achieving an accuracy of ±100g. What are the available sizes? Regarding model selection recommendations, the materials for parts that come into contact with powdered materials should be stainless steel 316 or ceramics. The horizontal conveying distance is 2m.　　The precise feeding screw conveyor is connected to the material silo, and through frequency control, it evenly and quantitatively dispenses powdered activated carbon into the dissolving tank. The feeding capacity is 3m3/h, the size is DN250. and the material is 316.　　Transport gypsum powder material, complete precise metering in 25 minutes, requiring a feeding capacity of 6 tons, a conveying distance of 5 meters, and a material of stainless steel 304.　　The combination of an arch breaker and a metering screw conveyor is used to transport materials such as lime and sodium carbonate, with a specific gravity ranging from 1 to 1.2. These materials are non-corrosive, dry powder, stored in a 50 cubic meter silo, with a conveying capacity of 300 to 500 kg/h. The silo is connected to an arch breaker with a diameter of ≥DN350. and to the screw conveyor. The screw discharge port features precise metering and a weighing device. The screw conveyor is 5 meters away from the reaction kettle, and is made of carbon steel.　　Procurement Guide for Spiral Conveyor Manufacturers:　　When purchasing the spiral conveyor equipment, it is necessary to inform the manufacturer - Changzhou Tongdeli - of the particle size, material density, conveying capacity, conveying distance, and conveying angle of the material. Tongdeli will help you select the appropriate parameters. If you are not familiar with these parameters, Tongdeli should assign technicians to measure, design, and produce on site.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

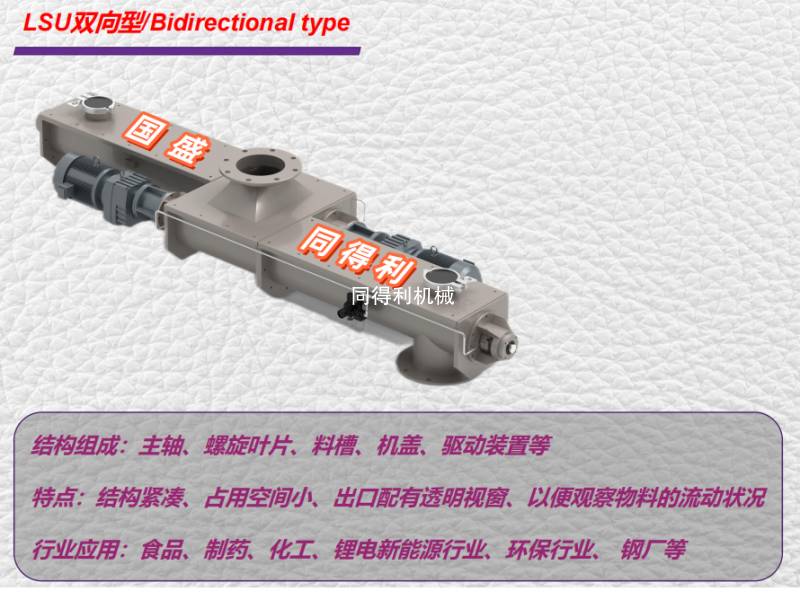

　　具有双向输送功能的设备‌：　　‌功能‌：指输送方向可以改变(可逆)，或者一个进料口能向两个方向出料(一机二用)。　　‌场景‌：适合需要灵活分料或空间受限的产线，比如单入口双向独立输送。‌‌‌　　LSU双向型螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：中间进料，两端出料。结构紧凑，占用空间小;出口配有透明视窗，以便观察物料的流动状况。　　行业应用：锂电新能源、制药、化工、食品、环保行业、钢厂等。　　材质：Q235、304、310S、316L、TC4等。　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。　　部分客户需求：　　双向螺杆给料机型号：159 ，输送能力：1000-2000KG/H，中间进料，正反螺旋，前后双向出料，进料口DN300.不锈钢材质，下料口DN200;螺旋管直径DN150 ;电机：工频电机、二级能耗 N=2.2KW，电压：380V;电机品牌：西玛、上海电机或厂家自行配套等同品牌;减速机：1：11.　　双向螺旋给料机，工艺流程：储罐把粉落到螺旋给料机上，给料机先正转，把料输送到A罐子，当A罐子满了后又反转，把料输送到B罐子，物料是生物质粉，15t/h的输送量，堆密度在400左右，粒径在1mm。　　双向螺旋输送机，物料：颗粒料，螺旋DLS250.处理量5000kg/h，密度0.6t/m3.N=7.5KW,进口尺寸：1600x250mm，带进口配对方法兰，螺旋输送机杆长度：L=3000mm，两端出料。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机，卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机/旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。《扫二维码-添加 陈经理 微信-咨询双向型螺旋输送机》　　Equipment with bidirectional conveying function:　　Function: Refers to the ability to change the direction of conveyance (reversibility), or the capability of one feed inlet to discharge material in two directions (one machine for dual purposes).　　Scenario: Suitable for production lines that require flexible material distribution or are space-constrained, such as single-entry bidirectional independent conveying.　　LSU bidirectional screw conveyor:　　Structural components: main shaft, spiral blade, material chute, machine cover, drive device, etc.　　Features: Material is fed from the middle and discharged from both ends. The structure is compact, occupying little space; the outlet is equipped with a transparent window to observe the flow of materials.　　Industry applications: lithium-ion new energy, pharmaceuticals, chemical industry, food, environmental protection industry, steel mills, etc.　　Materials: Q235. 304. 310S, 316L, TC4. etc.　　Treatment: mirror finish, tungsten carbide, Teflon, ceramic powder, PTFE lining, etc.　　Some customer requirements:　　Bidirectional screw feeder model: 159. conveying capacity: 1000-2000KG/H, intermediate feeding, forward and reverse spiral, front and rear bidirectional discharge, inlet DN300. stainless steel material, discharge outlet DN200; spiral tube diameter DN150; motor: mains frequency motor, second-level energy consumption N=2.2KW, voltage: 380V; motor brand: Sima, Shanghai Motor or equivalent brands provided by the manufacturer; reducer: 1:11.　　Bidirectional spiral feeder, process flow: The powder is discharged from the storage tank onto the spiral feeder, which rotates in a forward direction first to convey the material to tank A. When tank A is full, it rotates in a reverse direction to convey the material to tank B. The material is biomass powder, with a conveying capacity of 15 t/h, a bulk density of around 400. and a particle size of 1 mm.　　Bidirectional screw conveyor, material: granular material, screw DLS250. processing capacity 5000kg/h, density 0.6t/m3. N=7.5KW, inlet size: 1600x250mm, with inlet companion flange, screw conveyor rod length: L=3000mm, discharging at both ends.　　Changzhou Tongdeli Machinery Factory boasts many years of experience in the research, development, and production/customization of screw conveyors and discharge valves/rotary valves. We adhere to the principle of quality first and customer supreme. Our screw conveyors/rotary valves are capable of handling various granular, flaky, lumpy materials, viscous materials, powders, ultrafine powders, etc., in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemicals, food, and pharmaceuticals.

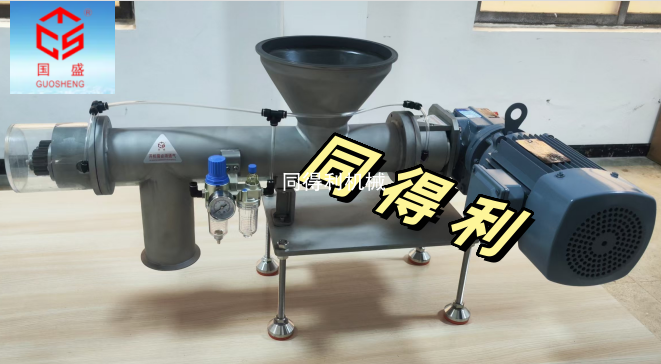

　　科研或实验室用螺旋输送机通常长度在50cm~2m，输送量0~100kg/h，小型尺寸。称重螺旋输送机在基础输送功能之上，集成了精确的称重计量能力，实现了物料输送与定量控制的结合。　　Spiral conveyors for scientific research or laboratory use typically have a length of 50cm~2m, a conveying capacity of 0~100kg/h, and are small in size. The weighing screw conveyor integrates precise weighing and measuring capabilities on top of the basic conveying function, achieving the combination of material conveying and quantitative control.　　LSU实验室/科研用小型螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、称重传感器、测速传感器等。　　特点：精准称量，隔振性能好、科研或实验室用。　　行业应用：锂电池、制药、化工、食品等。　　材质：Q235、304、310S、316L、TC4等。　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。【电话/微信咨询：陈经理18068546632】　　LSU Laboratory/Research Small Spiral Conveyor:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, weighing sensor, speed sensor, etc.　　Features: Accurate weighing, good vibration isolation performance, suitable for scientific research or laboratory use.　　Industry applications: lithium batteries, pharmaceuticals, chemicals, food, etc.　　Materials: Q235. 304. 310S, 316L, TC4. etc.　　Processing: mirror, tungsten carbide, PTFE, ceramic powder, PTFE lining, etc.　　部分客户需求：　　实验室用氮气螺旋给料机，用在气流磨系统中，物料多孔碳，输送量50kg/h，比重300kg /m³，原料粒度小于1mm，隔绝金属，小型的双螺杆给料机。　　输送煤粉，不能进空气进去，只进煤粉，或者通惰性气体输送，看到了我们实验室用的小型螺旋给料机，或者组合型的螺旋绞龙都可以，要设计个连续进料的反应器，实验室阶段用。　　实验室用，小型绞龙输送机，物料：镁粉，输送量：0~5kg/h，需要精确计量，料仓需要氮气保护。　　科研实验室装置，旋风分离器下来催化剂粉尘进行循环，物料温度150度，卸料量500克每小时。　　科研项目做实验用，DN100.输送石英砂颗粒状，卸料量小，想飞来我们厂现场交流一下。　　输送硅料，304内衬碳化钨，输送物料0-5kg/h，密度在0.8-1之间，颗粒度粉料2-3mm ，科研实验用。　　锂电正极材料，堆密度0.5-0.6.与物料接触部分喷涂碳化钨，小型螺旋输送机，实验室用。　　Partial customer requirements:　　Laboratory nitrogen spiral feeder, used in the airflow grinding system, with porous carbon material, conveying capacity of 50kg/h, specific gravity of 300kg/m ³, raw material particle size less than 1mm, metal isolation, small twin-screw feeder.　　When transporting coal powder, air cannot be introduced, only coal powder is introduced, or inert gas is used for transportation. We have seen that small screw feeders or combination screw winches used in our laboratory can be used. We need to design a continuous feeding reactor for use in the laboratory stage.　　Laboratory use, small screw conveyor, material: magnesium powder, conveying capacity: 0-5kg/h, requires precise measurement, and the silo needs nitrogen protection.　　The scientific research laboratory equipment uses a cyclone separator to circulate catalyst dust, with a material temperature of 150 degrees and a discharge capacity of 500 grams per hour.　　For conducting experiments in scientific research projects, DN100. Transporting quartz sand particles with small discharge capacity, I would like to fly to our factory site for further communication.　　Conveying silicon material, 304 lined with tungsten carbide, conveying material 0-5kg/h, density between 0.8-1. particle size powder 2-3mm, for scientific research experiments.　　Lithium battery positive electrode material, with a bulk density of 0.5-0.6. sprayed with tungsten carbide on the parts in contact with the material, small screw conveyor, laboratory use.　　常州同得利机械厂拥有多年的研发生产/定制卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.　　同得利主要产品：　　1.旋转阀/星型卸料器　　2.打散破碎阀　　3.料仓刮料破拱阀　　4.螺旋绞龙输送机　　5.超级工程/科研项目---定制阀　　Tongdeli's main products:　　1. Rotary valve/star shaped unloader　　2. Disassemble the crushing valve　　3. Scraping and arch breaking valve of the silo　　4. Spiral screw conveyor　　5. Super Engineering/Research Project - Customized Valve  《扫二维码-添加 陈经理 微信-咨询实验室小型螺旋输送机》

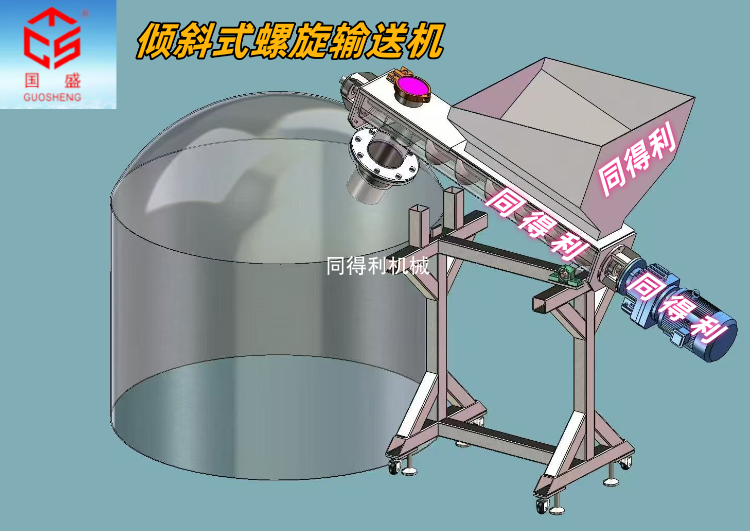

　　移动式LSU倾斜式螺旋输送机核心作用是‌利用旋转螺旋叶片将粉体、颗粒状及小块状干性物料从低处连续、密闭地推送至高处‌，实现有落差的自动化上料与转运 。‌‌可选择增加支架及万向轮，可移动，如料仓进行其他作业时，可推移倾斜式螺旋输送机使其离开，或推移螺旋输送机至下一处料仓进行输送卸料。　　The core function of the mobile LSU inclined screw conveyor is to use rotating spiral blades to continuously and tightly push dry materials in powder, granular, and small pieces from low to high places, achieving automated feeding and transportation with drop height. You can choose to add brackets and universal wheels, which can be moved. When the silo is used for other operations, the inclined screw conveyor can be moved away, or the screw conveyor can be moved to the next silo for conveying and unloading.　　移动式LSU倾斜式螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、移动支架等。　　特点：物料定位输送;透明视窗查看物料流动。　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量0.1m³/h~300m³/h。　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、聚氨酯、不锈钢、碳钢等。　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)　　动力传递‌：驱动装置带动螺旋轴及叶片高速回转，物料因自身重力及与机壳壁的摩擦无法随轴旋转，沿轴向移动 。　　受力平衡‌：叶片产生的轴向推力需大于物料下滑分力与内摩擦力之和，确保物料稳定上行而非回落;倾角越大，所需推力越大 。随倾角增大，输送效率及功率利用率会下降，大倾角工况需特殊叶片设计(如变螺距)。‌‌　　运动形态‌：物料在槽体内做螺旋推进运动，类似固定螺母在旋转螺杆上的直线位移，实现密闭连续输送 。　　适用物料‌：锂电池正极材料、磷酸铁锂、三元材料、磷酸铁锂中间体、负极材料、氧化铝粉、碳化硅粉、石英砂、二氧化硅、五硫化二磷、硝酸盐、氟硅酸钠、12水磷酸三钠、氧化钙、碳酸钙粉、活性炭粉、钛白粉、树脂粉、4NPI、亚硝酸钠、碳酸钾、四丁基溴化铵、双酚A、碱、BEPI、生物质粉、食品颗粒及粉末、粉煤灰、石焦粉、水泥、中药粉、医药中间体、化工粉料、矿粉、塑料颗粒等‌干燥、流动性好‌的粉粒状物料。　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。　　部分客户需求：　　替代WAMGROUP意大利威埃姆螺旋输送机，物料水泥，100吨/h，倾斜式螺旋喂料机，9~10米，之前用的意大利威埃姆，目前想换成国产品牌的。　　锂电池行业，正极材料，DN200.输送量大概2吨/h，倾斜角度35°~40°，颗粒直径蕞大3mm，材质不锈钢，与物料接触部分衬碳化钨，配备支架可移动螺旋给料机，变频，SEW，国茂。　　锂电用螺旋给料机，不锈钢304材质，口径DN300.法兰连接。锂电粉体接触部分表面喷涂碳化钨。倾斜式上料，角度45度，变频调速，SEW, 配置过滤器、调压阀等气控元件。锂电专用，禁铜锌。　　介质：锂电粉料，粒径：60μm<d<3mm，1mm左右占比约50%，耐温：150℃以上。材质：与物料接触304+碳化钨涂层。给料速度：1-10m³ h="">　　倾斜式绞龙输送机，介质：锂电负极材料，规格尺寸300.材质：料槽、主轴、螺旋叶片SUS304.喷涂碳化钨或陶瓷氧化铝粉，工作温度<85℃，多重密封要求，倾斜向上输送，角度45度左右。　　物料：化工原料，材质：304.直径159.倾斜式给料，1.5t/h，BT4防爆电机。　　物料废盐，化工企业用，电机防爆，304材质，每小时输送10立方。水平式长9000.倾斜式长3100.高度1450.　　倾斜螺旋输送机，物料：细沙含水，稀精矿，浓度大约90%，输送量一小时300-500公斤，比重比较大，要求密封，会要倾斜式输送。　　主要做玻璃反应釜的，客户那里配套倾斜螺旋上料机，往罐子里加料，物料：催化剂粉料，倾斜式角度大约30°，需要高精度的，密封型，变频，尺寸250.　　破拱器+螺旋输送机，物料：铁锈，铁红粉末，90度，下面是螺旋165管径倾斜度40度，在料仓和螺旋之间装一个破拱器，防止物料粘壁或结拱架桥。　　生物质倾斜螺杆上料机，芦苇破碎后的料，粒度小于5mm，物料温度180℃，输送量30m³/h，倾斜角度35度，需要可移动式螺杆给料机。　　螺旋输送机，输送烟草，水平螺旋输送机，直径：315mm 长度：21m，倾斜角度：0°。倾斜螺旋输送机，直径：315mm 长度：9m，倾斜角度：20°，材质不锈钢。《扫二维码-添加 陈经理 微信-咨询移动式倾斜型螺杆上料机》　　Mobile LSU inclined screw conveyor:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, mobile bracket, etc.　　Features: Material positioning and conveying; View material flow through a transparent window.　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.　　Specification reference: Spiral diameter available LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80 Equal specifications or non-standard customization; The conveying capacity ranges from 0.1m ³/h to 300m ³/h.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, polyurethane, stainless steel, carbon steel, etc.　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)　　Power transmission: The driving device drives the spiral shaft and blades to rotate at high speed, and the material cannot rotate with the shaft due to its own gravity and friction with the casing wall, and is forced to move along the axial direction.　　Force balance: The axial thrust generated by the blades needs to be greater than the sum of the downward force of the material and the internal friction force to ensure stable upward movement of the material rather than downward movement; The larger the inclination angle, the greater the required thrust. As the inclination angle increases, the conveying efficiency and power utilization rate will decrease, and special blade design (such as variable pitch) is required for high inclination conditions. ‌‌　　Movement form: The material undergoes a spiral propulsion motion within the tank, similar to the linear displacement of a fixed nut on a rotating screw, achieving closed continuous conveying.　　Applicable materials: lithium battery positive electrode material, lithium iron phosphate, ternary material, lithium iron phosphate intermediate, negative electrode material, aluminum oxide powder, silicon carbide powder, quartz sand, silicon dioxide, phosphorus pentasulfide, nitrate, sodium fluorosilicate, trisodium phosphate 12 hydrate, calcium oxide, calcium carbonate powder, activated carbon powder, titanium dioxide powder, resin powder, 4NPI, sodium nitrite, potassium carbonate, tetrabutylammonium bromide, bisphenol A, alkali BEPI、 Dry and flowable granular materials such as biomass powder, food granules and powders, fly ash, coke powder, cement, traditional Chinese medicine powder, pharmaceutical intermediates, chemical powders, mineral powders, plastic granules, etc.　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.　　Partial customer requirements:　　Replace WAMGROUP Italy's Weiemu screw conveyor with cement material, 100 tons/h, inclined screw feeder, 9-10 meters. We previously used Italy's Weiemu and now want to switch to a domestic brand.　　Lithium battery industry, positive electrode materials, DN200. The conveying capacity is approximately 2 tons/h, the inclination angle is 35 °~40 °, the maximum particle diameter is 3mm, the material is stainless steel, and the part in contact with the material is lined with tungsten carbide. It is equipped with a movable spiral feeder with a bracket and variable frequency, SEW， Guomao.　　Spiral feeder for lithium batteries, made of stainless steel 304 material, with a diameter of DN300 and flange connection. Spray tungsten carbide on the surface of the contact part of lithium battery powder. Tilted feeding, angle 45 degrees, variable frequency speed regulation, SEW, Configure pneumatic components such as filters and pressure regulators. Dedicated to lithium batteries, copper and zinc are prohibited.　　Medium: Lithium battery powder, particle size: 60 μ m<d<3mm, 50="" about="">　　Tilted auger conveyor, medium: lithium negative electrode material, specification size 300. material: material tank, spindle, spiral blade SUS304. sprayed with tungsten carbide or ceramic oxide aluminum powder, working temperature<85 ℃, multiple sealing requirements, inclined upward conveying, angle of about 45 degrees.　　Material: Chemical raw material, material: 304. diameter 159. inclined feeding, 1.5t/h, BT4 explosion-proof motor.　　Waste salt material, used in chemical enterprises, explosion-proof motor, made of 304 material, capable of transporting 10 cubic meters per hour. Horizontal length 9000. inclined length 3100. height 1450.　　Tilted screw conveyor, material: fine sand with water content, dilute concentrate, concentration of about 90%, conveying capacity of 300-500 kilograms per hour, with a relatively high density, requiring sealing, and inclined conveying.　　Mainly engaged in glass reaction vessels, the customer is equipped with a tilted spiral feeding machine to add materials to the tank. The material is catalyst powder, with a tilted angle of about 30 °, requiring high-precision, sealed, variable frequency, and a size of 250.　　Arch breaker+screw conveyor, material: rust, iron red powder, 90 degrees. Below is a spiral with a diameter of 165 and a slope of 40 degrees. Install an arch breaker between the silo and the spiral to prevent material from sticking to the wall or forming arch bridges.　　Biomass inclined screw feeder, crushed reed material with particle size less than 5mm, material temperature of 180 ℃, conveying capacity of 30m ³/h, inclined angle of 35 degrees, requires a movable screw feeder.　　Spiral conveyor, transporting tobacco, horizontal spiral conveyor, diameter: 315mm, length: 21m, inclination angle: 0 °. Tilted screw conveyor, diameter: 315mm, length: 9m, tilt angle: 20 °, made of stainless steel.

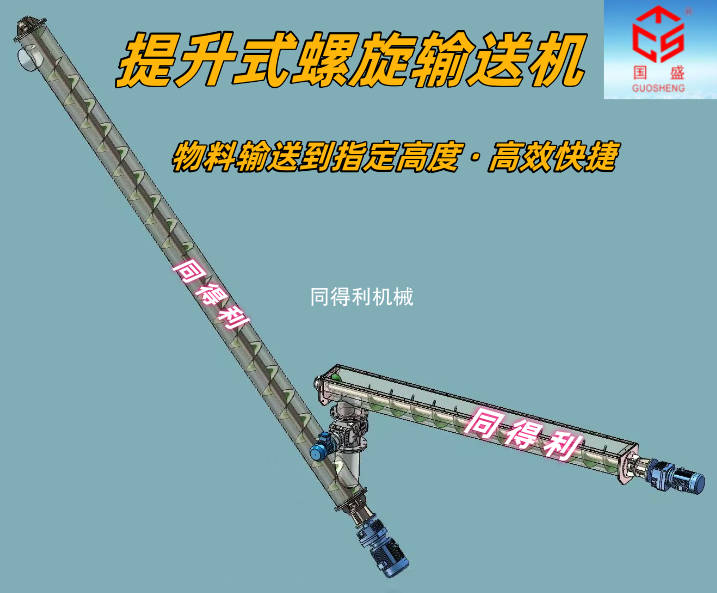

　　LSY提升式螺旋输送机核心作用是‌利用旋转螺旋叶片在密闭管内推移物料，实现粉体、颗粒及小块状物料的短距离垂直(或大倾角)高 效输送‌，兼具空间节省与防尘密封优势 。‌‌LSY提升式螺旋输送机主要为垂直⊥或大倾角(通常>45°)，需配合水平螺旋输送机以保证进料压力 。　　The core function of LSY lifting screw conveyor is to use rotating spiral blades to push materials inside a closed pipe, achieving efficient short distance vertical (or large inclination angle) transportation of powders, particles, and small block materials, with the advantages of space saving and dust-proof sealing. The LSY lifting screw conveyor is mainly vertical or with a large inclination angle (usually>45 °), and needs to be matched with a horizontal screw conveyor to ensure the feeding pressure.　　LSY提升式螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：物料定位输送;透明视窗查看物料流动。　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。　　规格参考‌：螺旋直径有LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200等规格，或者非标定制;输送量0.1m³/h~300m³/h。　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)　　LSY提升式螺旋输送机适用于流动性好、干燥的‌粉体、颗粒及小块状物料‌，不建议输送粘性大、易结块或易变质物料 。　　提升式螺旋轴高速旋转(转速高于水平式螺旋)，物料受离心力作用紧压机壳内壁，产生足够摩擦阻力阻止其随叶片同步旋转 。全封闭管/槽结构防止粉尘外溢、物料受潮或外界污染。部分机型可在输送过程中同步进行冷却或电加热作业 。结构类型‌：分为有轴螺旋(适合干粉)和无轴螺旋(适合稍粘物料)，外壳多为 U 型或管式 。　　垂直螺旋输送机的螺旋体的转速比普通螺旋输送机的要高，输送的物料在离心力的作用下，与料槽间产生了摩擦力，该摩擦力阻止物料随螺旋叶片一起旋转并克服了物料下降的重力，从而实现了物料的垂直输送。垂直⊥输送量小，输送高度小，转速较高，能耗大。适宜输送流动性好的粉末状物料，主要用于提升物料，提升高度一般不大于10米。　　LSY提升式输送机生产厂家采购指南：　　在采购该设备时需将物料的颗粒度大小、物料密度、输送量、输送距离与输送角度告知我们同得利生产厂家，由我们同得利生产厂家帮您选型，如果您对该参数不了解时，应由厂家委派技术人员现场实际测量、设计生产。　　部分客户需求：　　螺旋输送机提升式，物料：磷化铝，密度2.42g/cm3.每小时提升6吨，粉尘防爆电机A20.电机在上部，角度30度，下料口不超过1.5米，进料口口径600mm，提升高度1.5米，筒式螺旋，材质不锈钢，螺旋叶片厚度8-10mm。　　水平螺旋+提升式+旋转阀，DN200 高密封，304材质，物料类型:PA塑料颗粒成品料，堆积密度:0.7g/cm3.单套系统产量:3500kg/h，总产量:按系统数量叠加，输送条件:水平距离≤10m，提升高度s6m。　　提升式螺旋给料机，粉状物料，每小时400-500公斤，堆密度0.6.提升高度2.5m，材质316.　　分配螺旋给料机和星型卸料器：出力8t/h，用于散料和成型料从半地下料斗至带式输送机，从0米至4米高度。螺旋给料机满足≥50kPa密封要求。星型给料机配合螺旋给料机实现双重密封。　　螺旋输送机一个喂料，一个提升式输送，物料：工业盐，输送量3.5t/h，材质不锈钢304.　　主要输送介质:玉米杂质粉末状及灰尘，温度:常温，产能3T/h，304材质，要耐磨性好的，现有的用的GX型时间不长，需要经常更换，磨损严重。　　提升式螺旋上料机，物料粉体，转运砂子，水泥，建筑垃圾等，每次输送量500公斤，提升高度6米。　　破碎阀+提升式螺旋输送机+星型卸料阀，部分物料结块破碎打散后经过筛分，通过提升螺旋输送，到管道罗茨风机吹，输送量3~5t/h左右，密封卸料阀，需要锁气功能。　　螺杆上料机，输送的物料是粉末状和小颗粒状，用于无害化处理。每小时的输送能力是10t。上料螺杆输送机的水平跨度6m，高度提升4m，从地面输送到下一地点。　　水平+垂直螺旋输送机，介质干泥，粉料，需要按图纸定制，出口新加坡，材质SUS304.1000kg/h,DN200.　　风送式旋转阀+提升式螺旋上料机，介质：聚合氧化铝，有气源，每次8吨左右的聚合氯化铝需要输送卸料，输送到料仓，距离大概9米，垂直高度5米左右。　　旋转供料器+水平式螺旋给料机+垂直螺旋，含S02、Nox、粉尘和消石灰粉，输送量:1~2t/h，输送管道DN80.粉尘密度1000kg/m，水平距离4m，垂直高度3m。　　LSY lifting screw conveyor:　　Spiral conveyor lift type, material: aluminum phosphide, density 2.42g/cm3. lifting 6 tons per hour, dust explosion-proof motor A20. motor at the top, angle 30 degrees, discharge port not exceeding 1.5 meters, feed port diameter 600mm, lifting height 1.5 meters, cylindrical spiral, material stainless steel, spiral blade thickness 8-10mm.　　Horizontal spiral+lifting+rotary valve, DN200 high seal, 304 material, material type: PA plastic particle finished material, bulk density: 0.7g/cm3. single system output: 3500kg/h, total output: stacked according to the number of systems, conveying conditions: horizontal distance ≤ 10m, lifting height s6m.　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.　　Features: Material positioning and conveying; View material flow through a transparent window.　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.　　Specification reference: Spiral diameter available LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200 Equal specifications or non-standard customization; The conveying capacity ranges from 0.1m ³/h to 300m ³/h.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)　　LSY lifting screw conveyor is suitable for powders, particles, and small pieces of materials with good fluidity and dryness. It is not recommended to transport materials with high viscosity, easy agglomeration, or easy deterioration.　　The elevating spiral shaft rotates at high speed (higher than the horizontal spiral), and the material is tightly pressed against the inner wall of the casing by centrifugal force, generating sufficient frictional resistance to prevent it from synchronously rotating with the blades. The fully enclosed pipe/groove structure prevents dust overflow, material moisture or external pollution. Some models can perform cooling or electric heating operations simultaneously during the conveying process. Structural types: divided into axial spiral (suitable for dry powder) and shaftless spiral (suitable for slightly viscous materials), with the shell mostly being U-shaped or tubular.　　The rotational speed of the spiral body of the vertical screw conveyor is higher than that of the ordinary screw conveyor. Under the action of centrifugal force, the conveyed material generates frictional force between the material and the chute, which prevents the material from rotating together with the spiral blades and overcomes the gravity of the material's descent, thus achieving vertical conveying of the material. Vertical conveying capacity is small, conveying height is small, rotation speed is high, and energy consumption is high. Suitable for conveying powdery materials with good fluidity, mainly used for lifting materials, with a lifting height generally not exceeding 10 meters.　　LSY Lift Conveyor Manufacturer Procurement Guide:　　When purchasing this equipment, you need to inform us, Tongdeli manufacturer, of the particle size, material density, conveying capacity, conveying distance, and conveying angle of the material. Tongdeli manufacturer will help you select the appropriate parameters. If you are not familiar with these parameters, the manufacturer should assign technical personnel to measure, design, and produce on site.　　Partial customer requirements:　　Elevating spiral feeder, powder material, 400-500 kilograms per hour, bulk density 0.6. lifting height 2.5m, material 316.　　Distribution of spiral feeder and star shaped unloader: with an output of 8t/h, used for bulk and formed materials from semi underground hoppers to belt conveyors, from 0 meters to 4 meters in height. The spiral feeder meets the sealing requirement of ≥ 50kPa. The star shaped feeder is paired with a spiral feeder to achieve dual sealing.　　Spiral conveyor with one feeding and one lifting conveyor, material: industrial salt, conveying capacity of 3.5t/h, material: stainless steel 304.　　Main conveying medium: corn impurity powder and dust, temperature: room temperature, production capacity 3T/h, made of 304 material, with good wear resistance. The existing GX type has not been used for a long time and needs to be replaced frequently, resulting in severe wear and tear.　　Lift type spiral feeder, material powder, transport sand, cement, construction waste, etc., with a conveying capacity of 500 kilograms per time and a lifting height of 6 meters.　　Crushing valve+lifting screw conveyor+star shaped discharge valve. Some materials are agglomerated, broken and dispersed, screened, and then transported by lifting screw conveyor to pipeline Roots blower for a conveying capacity of about 3-5 t/h. The discharge valve is sealed and requires air locking function.　　Screw feeder, conveying materials in powder and small particle form, used for harmless treatment. The conveying capacity per hour is 10 tons. The horizontal span of the feeding screw conveyor is 6 meters, and the height is raised by 4 meters to transport from the ground to the next location.　　Horizontal+vertical screw conveyor, medium dry mud, powder, needs to be customized according to the drawings, exported to Singapore, material SUS304. 1000kg/h, DN200.　　Pneumatic rotary valve+lifting spiral feeder, medium: polyaluminum oxide, with gas source, about 8 tons of polyaluminum chloride need to be transported and unloaded each time, transported to the silo, with a distance of about 9 meters and a vertical height of about 5 meters.　　Rotating feeder+horizontal spiral feeder+vertical spiral, containing SO2. NOx, dust and hydrated lime powder, conveying capacity: 1-2 t/h, conveying pipeline DN80. dust density 1000kg/m, horizontal distance 4m, vertical height 3m.

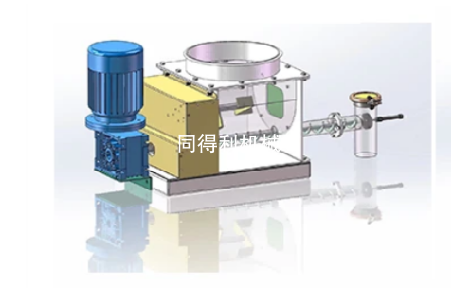

　　精准喂料螺旋送料机也叫计量螺旋输送机、定量螺杆上料机或称重螺旋喂料机，是用于物料定量给料及重量检测的连续输送设备，主要由稳流给料螺旋、称重桥架、减速电机、称重传感器、测速传感器、称重控制仪表和电控系统组成。　　Precision feeding screw feeder, also known as measuring screw conveyor, quantitative screw feeder or weighing screw feeder, is a continuous conveying equipment used for material quantitative feeding and weight detection. It mainly consists of a steady flow feeding screw, weighing bridge, reduction motor, weighing sensor, speed sensor, weighing control instrument and electronic control system.　　主要结构：破拱部分.螺旋输送部分.伺服电机.控制箱。　　特点：破拱解决物料容易架桥.精准喂料输送。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟。　　主要使用行业：锂电池.化工.制药.食品行业等。　　物料通过螺旋旋转连续输送，称重桥架采集重量信号，测速传感器检测速度信号，两者送入称重控制器进行微积分处理，显示瞬时流量和累计量。将实际流量与设定流量比较，调节驱动装置使差值趋近零，实现精确控制。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　Main structure: arch breaking section Spiral conveying section Servo motor Control box.　　Characteristic: Breaking the arch solves the problem of easy bridging of materials Accurate feeding and conveying.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene.　　Main industry of use: lithium batteries Chemical industry pharmacy. Food industry, etc.　　The material is continuously conveyed through spiral rotation, and the weight signal is collected by the weighing bridge. The speed sensor detects the speed signal, and both are sent to the weighing controller for differential processing, displaying the instantaneous flow rate and cumulative amount. Compare the actual flow rate with the set flow rate, adjust the driving device to make the difference close to zero, and achieve precise control.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

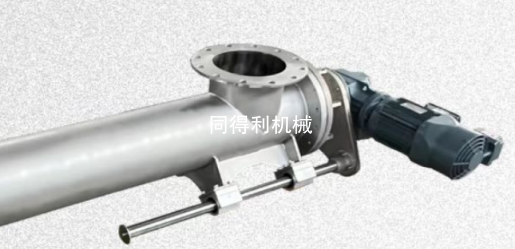

　　可原地抽出螺旋叶片清洗清理，清理完毕后螺旋杆推入，旋转定位螺栓即可。螺旋叶片设有多种形式，适用多种不同特殊物料;螺旋轴承采用多层保护系统，确保长期工作。　　The spiral blade can be removed and cleaned in place. After cleaning, the spiral rod can be pushed in and the positioning bolt can be rotated. Spiral blades come in various forms and are suitable for different special materials; Spiral bearings adopt a multi-layer protection system to ensure long-term operation.　　主要结构：螺旋杆.壳体.端盖.减速机.滑竿。　　特点：快速拆卸.快速清理.快速检修.。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟。　　主要使用行业：锂电池.化工.制药.食品行业等。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　部分客户需求：　　清洗型螺旋上料机：物料是淀粉，4-5m³/h，快拆可清洗，电机粉尘气体复合型防爆，内外抛光304.气密封，ExdIIBT4/ExtIIIBT130℃防护级。　　可清理清洗，物料：硅胶粉料，DN200.滑杆式，120℃左右，耐高温，不锈钢材质，螺杆输送机长度3米。　　滑杆式推拉螺旋输送机，水泥厂用，尺寸400.材质304.SEW减速机，IIICT4防爆变频控制电机。　　滑杆快拆绞龙输送机，物料：聚丙烯酰胺，颗粒或粉状，进出口为DN200国标法兰，型式:滑杆抽拉快开结构，材质:304不锈钢:外表喷砂处理，SEW电机和国茂减速机。　　Partial customer requirements:　　Cleaning type spiral feeder: The material is starch, 4-5m ³/h, quick detachable and washable, motor dust gas composite explosion-proof, internally and externally polished 304. airtight seal, ExdIIBT4/ExtIIIBT130 ℃ protection level.　　Cleanable and washable, material: silicone powder, DN200. Sliding rod type, around 120 ℃, high temperature resistant, made of stainless steel material, screw conveyor with a length of 3 meters.　　Sliding rod push-pull screw conveyor, used in cement plants, size 400. material 304. SEW reducer, IIICT4 explosion-proof variable frequency control motor.　　Sliding rod quick dismantling screw conveyor, material: polyacrylamide, particles or powder, inlet and outlet are DN200 national standard flanges, type: sliding rod pulling quick opening structure, material: 304 stainless steel: surface sandblasting treatment, SEW motor and Guomao reducer.　　Main structure: Spiral rod Shell End cap Reducer. Slider.　　Features: Quick disassembly Quick cleaning Quick maintenance.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene.　　Main industry of use: lithium batteries Chemical industry pharmacy. Food industry, etc.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
