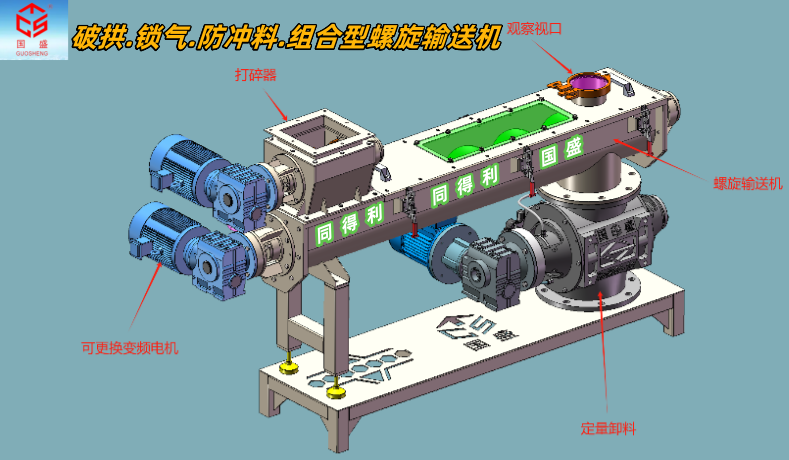

普通螺旋输送机遇到潮湿、粘性大或者结块料时，容易在料仓出口堵住，形成“拱形”导致下料中断。破拱螺旋输送机把输送和破拱功能合二为一，驱动装置带动转动耙上的破拱轴高速旋转，多组破拱搅棒以强劲的机械力对物料进行全方位搅动，将结块物料打散破碎成松散状态。在破拱完成的同时，螺旋输送机本体开始发挥作用。螺旋叶片围绕中心轴旋转，形成连续的螺旋推力，将松散物料沿输送槽向前推移。螺旋输送机下方接星型卸料阀，密封锁气，定量给料。

　　Ordinary screw conveyors are prone to blockage at the outlet of the silo when encountering damp, sticky, or clumped materials, forming an "arch" and causing interruption of material discharge. The arch breaking screw conveyor combines the conveying and arch breaking functions into one. The driving device drives the arch breaking shaft on the rotating rake to rotate at high speed. Multiple sets of arch breaking stirring rods use strong mechanical force to stir the material in all directions, breaking up the clumped material into a loose state. At the same time as the arch breaking is completed, the screw conveyor body begins to function. The spiral blades rotate around the central axis, forming a continuous spiral thrust that pushes loose materials forward along the conveyor trough. The spiral conveyor is connected to a star shaped discharge valve below, which is sealed and locked with air, and is used for quantitative feeding.

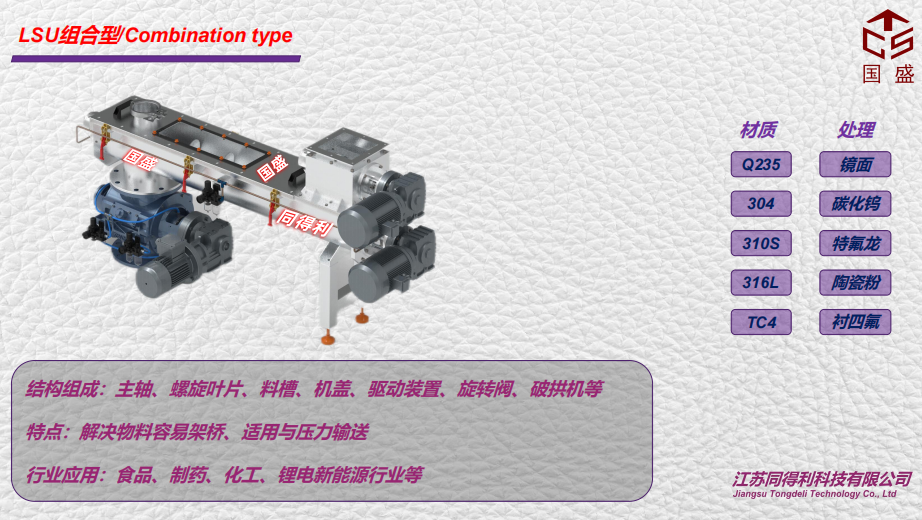

　　LSU破拱螺旋输送机组合型：

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、旋转阀、破拱机等。

　　特点：解决物料容易架桥、适用于压力输送。

　　行业应用：锂电新能源行业、化工、制药、食品、水泥、冶金、矿山、环保、钢厂、电厂等。

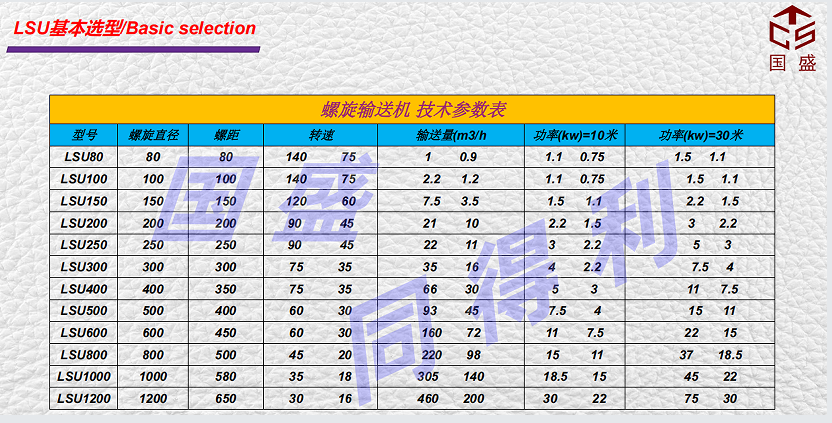

　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量0.1m³/h~400m³/h。

　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。

　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)

　　防架桥结块‌：破拱机通过破拱轴或者特殊的螺旋叶片设计(比如齿形、锯齿状)，在输送的同时不断搅动物料，把结块料打散，防止物料在螺旋输送机进料口搭桥堵塞 。

　　密封防尘‌：螺旋输送机大多采用全封闭管式或U型槽设计，输送过程中粉尘不外泄，既安全又环保，特别适合有毒有害或需要保持卫生的物料 。‌‌‌‌可增加可视窗口，观察物料流动状况。

　　锁气定量给料：星型卸料阀/旋转阀高精度密封锁气，维持气力输送系统压力平衡(正压/负压)，物料按固定容积周期性地均匀排出，确保供料稳定 。【电话/微信咨询：陈经理18068546632】

　　部分客户需求：

　　物料葡萄糖，DN250.标准法兰口，会结块，需要先破拱打散块料后通过螺旋输送机输送，一小时输送2~2.5吨，需求总套数多，但现在不确定效果，想先一台试用。

　　物料：石灰石粉，料仓圆锥形，隔板12厚锰钢，物料比重1.3.产量10t/h，石灰料结块架桥下不来，推荐加装料仓刮料破拱器，以及破拱.锁气.防冲料.组合螺旋输送机，星型卸料阀轴两端用气密封。

　　物料：碳酸钾，比重0.7~0.8.卸料量30分钟1吨左右，烘干出来有少量的大块，10~15cm，正常是粉末，大块需要打散破碎一下，防爆，DN200或者DN250.块料破碎后经过螺旋输送机，水平距离2米，螺旋输送机出料口下方接旋转卸料阀，需高密封锁气型。

　　破拱螺旋给料机，破碎糖霜，有时候结块，破拱阀过一下就行，全304材质，DN300.配合旋转阀定量卸料。

　　含水率50%块状污泥5-6cm，有一定的粘性，破碎后进入螺旋输送机，输送距离5m，随后污泥经过卸料阀进入锅炉，要求密封锁气，且能观察物料输送状况。

　　用于钠电正极材料的破碎及输送功能，DN300.特性有点像容易结块的盐，材质:SUS304.轴、叶片、内壁喷涂≥0.3mmWC，小距离水平输送。

　　输送介质无水磷酸铁粉体材料，物料温度200℃，PH值1.8-2.5;破碎动刀淬火处理，齿厚8mm，破拱阀内部要求无毛刺锐边，清洁干净无残存金属和其他粉末，进出料口封闭，材质304.含铜量≤0.5%。破拱块料架桥后经螺旋输送机至旋转阀均匀给料。

　　破拱螺旋输送机，破碎物料Ca0、结块料、部分浇注料，物料温度200℃，进料粒度：>30mm 的料预计10%，个别结块料可达50mm，出料粒度<10mm，处理量15th，Ca0 堆积密度0.7t/m³，破拱打散后输送至下一处，距离3.5m。

　　物料：结块化工产品有腐蚀性，料仓下料易结块堵塞，需要组合型破拱螺旋输送机，DN300接口，316L材质，输送距离2.5米，且密封锁气，卸料阀下方称重计量包装。

　　物料：氧化铝粉末可能结块，需要破碎打散一下，从烘干设备出来可能会成团块状，每小时2吨输送量，螺旋输送机2~3米。

　　2-4mm粒径的PEA粉末挤压成的颗粒，有一个成品料仓，会出现架桥现象，配气力输送卸料型旋转给料阀，一小时出料量1.2吨，短距离输送。

　　DN200破拱螺旋输送机+旋转给料阀，物料：磷酸铁锂，主体材质为SUS304.阀体及叶片表面冷喷涂陶瓷0.3m;两边端盖板表面冷喷涂陶瓷0.3mm;进出口为HG/T20592 PN10标准DN200平面法兰:变频减速电机,能效等级IE4.防护等级IP55.绝缘等级F,轴封方式为盘根+气密封,轴承材质为SUS304;5.物料接触及裸露部分禁铜铁锌。

　　破拱螺旋输送机+旋转阀，碳酸锂:堆密度370kg/cm2.DN300.接触物料材质:S30408.破碎破拱粒径:2-5cm，设计产能:2.5t/h，破拱破碎->螺旋输送机->旋转阀，密封形式:气密封，流量计：WIKA/川仪。【电话/微信咨询：陈经理18068546632】

　　LSU arch breaking screw conveyor combination type:

　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, rotary valve, arch breaking machine, etc.

　　Features: It solves the problem of easy bridging of materials and is suitable for pressure conveying.

　　Industry applications: lithium battery new energy industry, chemical, pharmaceutical, food, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.

　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.

　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)

　　Anti bridging and clumping: The arch breaking machine uses a broken arch shaft or a special spiral blade design (such as toothed or serrated) to continuously stir the material while conveying, breaking up the clumped material and preventing it from being blocked by bridging at the feed inlet of the screw conveyor.

　　Sealed and dustproof: Most screw conveyors adopt fully enclosed pipe or U-shaped groove designs, which prevent dust leakage during transportation, making them safe and environmentally friendly, especially suitable for toxic and harmful materials or materials that require hygiene. Can add a visual window to observe the flow of materials.

　　Gas locking and quantitative feeding: Star shaped discharge valve/rotary valve provides high-precision sealing and gas locking to maintain pressure balance (positive/negative pressure) in the pneumatic conveying system. The material is periodically and uniformly discharged according to a fixed volume, ensuring stable feeding.

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种结块颗粒、片状、块状物料、粘料、结块粉料、架桥超微粉体等。

    《扫二维码-添加 陈经理 微信-咨询破拱螺旋上料机》

　　Partial customer requirements:

　　Material glucose, DN250. The standard flange mouth will clump, and the block material needs to be broken and dispersed first before being transported by a screw conveyor. It can transport 2-2.5 tons per hour. There is a high demand for a total of sets, but the effect is uncertain at the moment. I would like to try one first.

　　Material: Limestone powder, conical silo, 12 thick manganese steel partition, material specific gravity 1.3. output 10t/h, lime material clumps cannot be bridged, it is recommended to install silo scraper and arch breaker Lock the air Anti erosion material Combination screw conveyor, with gas seals at both ends of the star shaped discharge valve shaft.

　　Material: Potassium carbonate, specific gravity 0.7~0.8. discharge capacity of about 1 ton in 30 minutes. After drying, there are a small amount of large blocks, 10~15cm, which are normally powder. The large blocks need to be broken and crushed for explosion prevention. They are DN200 or DN250. After being crushed, the block material passes through a screw conveyor with a horizontal distance of 2 meters. A rotating discharge valve is connected below the discharge outlet of the screw conveyor, which requires high sealing and air locking type.

　　Broken arch spiral feeder, crushing icing sugar, sometimes clumping, just pass through the broken arch valve, all made of 304 material, DN300. Cooperate with the rotary valve for quantitative unloading.

　　The block shaped sludge with a moisture content of 50% is 5-6cm and has a certain viscosity. After crushing, it enters the screw conveyor with a conveying distance of 5m. Then, the sludge enters the boiler through the discharge valve and is required to be sealed and gas locked, and the material conveying condition can be observed.

　　Used for crushing and transporting sodium positive electrode materials, DN300. The characteristics are a bit like salt that is prone to clumping. Material: SUS304. The shaft, blades, and inner walls are sprayed with ≥ 0.3mmWC, and transported horizontally over small distances.

　　The conveying medium is anhydrous iron phosphate powder material, with a material temperature of 200 ℃ and a pH value of 1.8-2.5; Crushing and dynamic knife quenching treatment, with a tooth thickness of 8mm. The inside of the arch breaking valve is required to have no sharp edges, clean and free of residual metal and other powders. The inlet and outlet are closed, and the material is 304 with a copper content of ≤ 0.5%. After the arch breaking block material is bridged, it is evenly fed to the rotary valve through a screw conveyor.

　　The arch breaking screw conveyor is used to crush materials Ca0. agglomerated materials, and partially poured materials. The material temperature is 200 ℃, and the feed particle size is expected to be 10% for materials with a particle size greater than 30mm. Some agglomerated materials can reach 50mm, and the discharge particle size is less than 10mm. The processing capacity is 15th, and the Ca0 bulk density is 0.7t/m ³. After breaking the arch, it is transported to the next location at a distance of 3.5m.

　　Material: Agglomerated chemical products are corrosive and prone to clumping and blockage during material discharge from the silo. A combined arch breaking screw conveyor with a DN300 interface and 316L material is required, with a conveying distance of 2.5 meters and sealed with air lock. Weighing and measuring packaging is required below the discharge valve.

　　Material: Aluminum oxide powder may clump and need to be broken and dispersed. It may form clumps when coming out of the drying equipment, with a conveying capacity of 2 tons per hour and a screw conveyor of 2-3 meters.

　　The PEA powder with a particle size of 2-4mm is extruded into particles, and there is a finished product bin where bridging occurs. It is equipped with a pneumatic conveying discharge type rotary feeding valve, with a discharge capacity of 1.2 tons per hour and short distance conveying.

　　DN200 arch breaking screw conveyor+rotary feeding valve, main material is SUS304. the surface of the valve body and blades is cold sprayed with ceramic 0.3mm; the surface of the two end cover plates is cold sprayed with ceramic 0.3mm; the inlet and outlet are HG/T20592 PN10 standard DN200 flat flanges: variable frequency reduction motor, energy efficiency level IE4. protection level IP55. insulation level F, shaft seal method is disc root+airtight seal, bearing material is SUS304; 5. Copper, iron, and zinc are prohibited in the contact and exposed parts of materials.

　　Arch breaking screw conveyor+rotary valve, lithium carbonate: bulk density 370kg/cm2. DN300. contact material material: S30408. broken arch particle size: 2-5cm, design capacity: 2.5t/h, broken arch crushing ->screw conveyor ->rotary valve, sealing form: airtight seal, flow meter: WIKA/Chuanyi.

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our arch breaking screw conveyor and rotary valve can handle various agglomerated particles, flakes, block materials, adhesives, agglomerated powders, bridging ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food and medicine.
