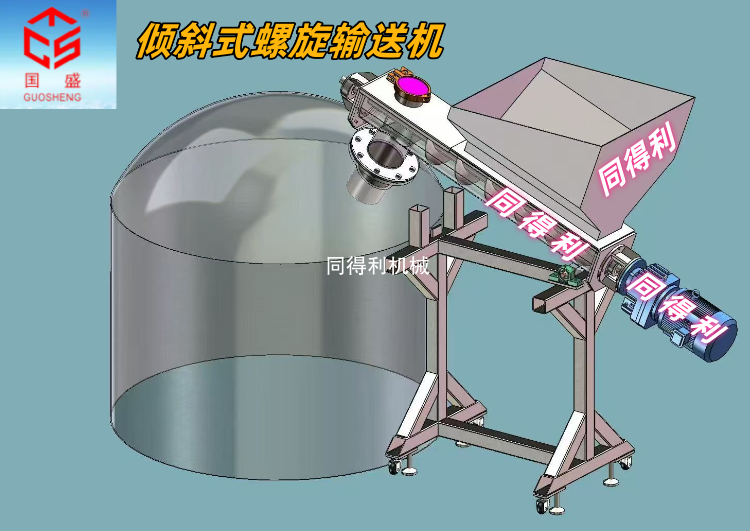

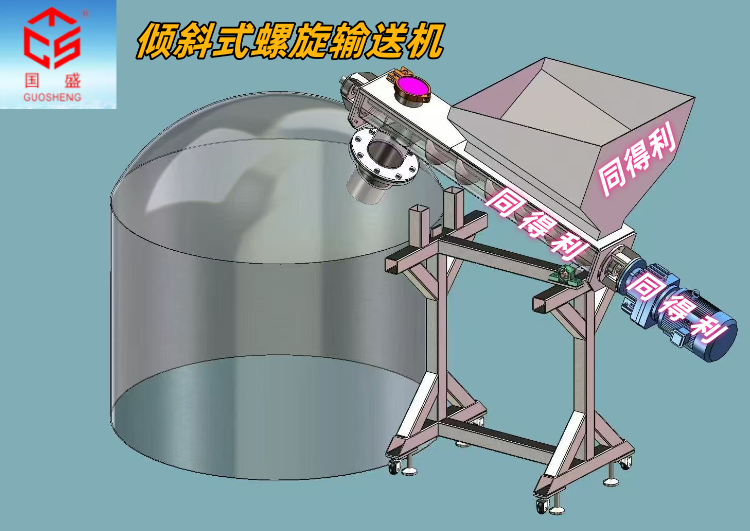

移动式LSU倾斜式螺旋输送机核心作用是‌利用旋转螺旋叶片将粉体、颗粒状及小块状干性物料从低处连续、密闭地推送至高处‌，实现有落差的自动化上料与转运 。‌‌可选择增加支架及万向轮，可移动，如料仓进行其他作业时，可推移倾斜式螺旋输送机使其离开，或推移螺旋输送机至下一处料仓进行输送卸料。

　　The core function of the mobile LSU inclined screw conveyor is to use rotating spiral blades to continuously and tightly push dry materials in powder, granular, and small pieces from low to high places, achieving automated feeding and transportation with drop height. You can choose to add brackets and universal wheels, which can be moved. When the silo is used for other operations, the inclined screw conveyor can be moved away, or the screw conveyor can be moved to the next silo for conveying and unloading.

　　移动式LSU倾斜式螺旋输送机：

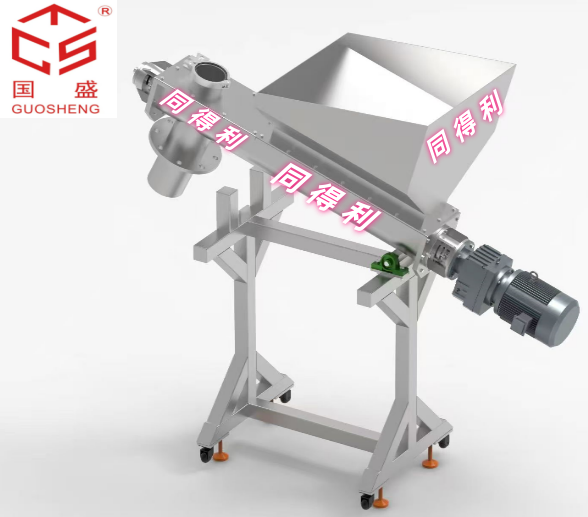

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置、移动支架等。

　　特点：物料定位输送;透明视窗查看物料流动。

　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。

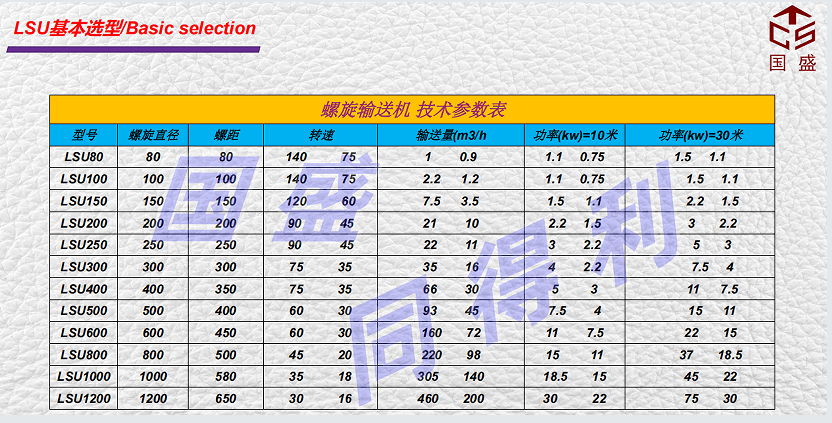

　　规格参考‌：螺旋直径有LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80等规格，或者非标定制;输送量0.1m³/h~300m³/h。

　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、聚氨酯、不锈钢、碳钢等。

　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)

　　动力传递‌：驱动装置带动螺旋轴及叶片高速回转，物料因自身重力及与机壳壁的摩擦无法随轴旋转，沿轴向移动 。

　　受力平衡‌：叶片产生的轴向推力需大于物料下滑分力与内摩擦力之和，确保物料稳定上行而非回落;倾角越大，所需推力越大 。随倾角增大，输送效率及功率利用率会下降，大倾角工况需特殊叶片设计(如变螺距)。‌‌

　　运动形态‌：物料在槽体内做螺旋推进运动，类似固定螺母在旋转螺杆上的直线位移，实现密闭连续输送 。

　　适用物料‌：锂电池正极材料、磷酸铁锂、三元材料、磷酸铁锂中间体、负极材料、氧化铝粉、碳化硅粉、石英砂、二氧化硅、五硫化二磷、硝酸盐、氟硅酸钠、12水磷酸三钠、氧化钙、碳酸钙粉、活性炭粉、钛白粉、树脂粉、4NPI、亚硝酸钠、碳酸钾、四丁基溴化铵、双酚A、碱、BEPI、生物质粉、食品颗粒及粉末、粉煤灰、石焦粉、水泥、中药粉、医药中间体、化工粉料、矿粉、塑料颗粒等‌干燥、流动性好‌的粉粒状物料。

　　常州同得利机械厂/江苏同得利科技专 业的团队，拥有二十余年经验，定制、设计、研发、生产经验丰富。为您提供专 业的设计、选材和指导，为不同使用工况量身打造一体化的输送设备。自动精加工中心，搭配进口自动设备，专有生产工装，提高生产效率和精度。

　　部分客户需求：

　　替代WAMGROUP意大利威埃姆螺旋输送机，物料水泥，100吨/h，倾斜式螺旋喂料机，9~10米，之前用的意大利威埃姆，目前想换成国产品牌的。

　　锂电池行业，正极材料，DN200.输送量大概2吨/h，倾斜角度35°~40°，颗粒直径蕞大3mm，材质不锈钢，与物料接触部分衬碳化钨，配备支架可移动螺旋给料机，变频，SEW，国茂。

　　锂电用螺旋给料机，不锈钢304材质，口径DN300.法兰连接。锂电粉体接触部分表面喷涂碳化钨。倾斜式上料，角度45度，变频调速，SEW, 配置过滤器、调压阀等气控元件。锂电专用，禁铜锌。

　　介质：锂电粉料，粒径：60μm<d<3mm，1mm左右占比约50%，耐温：150℃以上。材质：与物料接触304+碳化钨涂层。给料速度：1-10m³ h="">

　　倾斜式绞龙输送机，介质：锂电负极材料，规格尺寸300.材质：料槽、主轴、螺旋叶片SUS304.喷涂碳化钨或陶瓷氧化铝粉，工作温度<85℃，多重密封要求，倾斜向上输送，角度45度左右。

　　物料：化工原料，材质：304.直径159.倾斜式给料，1.5t/h，BT4防爆电机。

　　物料废盐，化工企业用，电机防爆，304材质，每小时输送10立方。水平式长9000.倾斜式长3100.高度1450.

　　倾斜螺旋输送机，物料：细沙含水，稀精矿，浓度大约90%，输送量一小时300-500公斤，比重比较大，要求密封，会要倾斜式输送。

　　主要做玻璃反应釜的，客户那里配套倾斜螺旋上料机，往罐子里加料，物料：催化剂粉料，倾斜式角度大约30°，需要高精度的，密封型，变频，尺寸250.

　　破拱器+螺旋输送机，物料：铁锈，铁红粉末，90度，下面是螺旋165管径倾斜度40度，在料仓和螺旋之间装一个破拱器，防止物料粘壁或结拱架桥。

　　生物质倾斜螺杆上料机，芦苇破碎后的料，粒度小于5mm，物料温度180℃，输送量30m³/h，倾斜角度35度，需要可移动式螺杆给料机。

　　螺旋输送机，输送烟草，水平螺旋输送机，直径：315mm 长度：21m，倾斜角度：0°。倾斜螺旋输送机，直径：315mm 长度：9m，倾斜角度：20°，材质不锈钢。

《扫二维码-添加 陈经理 微信-咨询移动式倾斜型螺杆上料机》

　　Mobile LSU inclined screw conveyor:

　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, mobile bracket, etc.

　　Features: Material positioning and conveying; View material flow through a transparent window.

　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.

　　Specification reference: Spiral diameter available LSU1200、LSU1000、LSU800、LSU600、LSU500、LSU400、LSU300、LSU250、LSU200、LSU150、LSU100、LSU80 Equal specifications or non-standard customization; The conveying capacity ranges from 0.1m ³/h to 300m ³/h.

　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, polyurethane, stainless steel, carbon steel, etc.

　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)

　　Power transmission: The driving device drives the spiral shaft and blades to rotate at high speed, and the material cannot rotate with the shaft due to its own gravity and friction with the casing wall, and is forced to move along the axial direction.

　　Force balance: The axial thrust generated by the blades needs to be greater than the sum of the downward force of the material and the internal friction force to ensure stable upward movement of the material rather than downward movement; The larger the inclination angle, the greater the required thrust. As the inclination angle increases, the conveying efficiency and power utilization rate will decrease, and special blade design (such as variable pitch) is required for high inclination conditions. ‌‌

　　Movement form: The material undergoes a spiral propulsion motion within the tank, similar to the linear displacement of a fixed nut on a rotating screw, achieving closed continuous conveying.

　　Applicable materials: lithium battery positive electrode material, lithium iron phosphate, ternary material, lithium iron phosphate intermediate, negative electrode material, aluminum oxide powder, silicon carbide powder, quartz sand, silicon dioxide, phosphorus pentasulfide, nitrate, sodium fluorosilicate, trisodium phosphate 12 hydrate, calcium oxide, calcium carbonate powder, activated carbon powder, titanium dioxide powder, resin powder, 4NPI, sodium nitrite, potassium carbonate, tetrabutylammonium bromide, bisphenol A, alkali BEPI、 Dry and flowable granular materials such as biomass powder, food granules and powders, fly ash, coke powder, cement, traditional Chinese medicine powder, pharmaceutical intermediates, chemical powders, mineral powders, plastic granules, etc.

　　Changzhou Tongdeli Machinery Factory/Jiangsu Tongdeli Technology has a professional team with over 20 years of experience in customization, design, research and development, and production. We provide professional design, material selection, and guidance to tailor integrated conveying equipment for different operating conditions. Automatic precision machining center, equipped with imported automatic equipment and proprietary production fixtures, improves production efficiency and accuracy.

　　Partial customer requirements:

　　Replace WAMGROUP Italy's Weiemu screw conveyor with cement material, 100 tons/h, inclined screw feeder, 9-10 meters. We previously used Italy's Weiemu and now want to switch to a domestic brand.

　　Lithium battery industry, positive electrode materials, DN200. The conveying capacity is approximately 2 tons/h, the inclination angle is 35 °~40 °, the maximum particle diameter is 3mm, the material is stainless steel, and the part in contact with the material is lined with tungsten carbide. It is equipped with a movable spiral feeder with a bracket and variable frequency, SEW， Guomao.

　　Spiral feeder for lithium batteries, made of stainless steel 304 material, with a diameter of DN300 and flange connection. Spray tungsten carbide on the surface of the contact part of lithium battery powder. Tilted feeding, angle 45 degrees, variable frequency speed regulation, SEW, Configure pneumatic components such as filters and pressure regulators. Dedicated to lithium batteries, copper and zinc are prohibited.

　　Medium: Lithium battery powder, particle size: 60 μ m<d<3mm, 50="" about="">

　　Tilted auger conveyor, medium: lithium negative electrode material, specification size 300. material: material tank, spindle, spiral blade SUS304. sprayed with tungsten carbide or ceramic oxide aluminum powder, working temperature<85 ℃, multiple sealing requirements, inclined upward conveying, angle of about 45 degrees.

　　Material: Chemical raw material, material: 304. diameter 159. inclined feeding, 1.5t/h, BT4 explosion-proof motor.

　　Waste salt material, used in chemical enterprises, explosion-proof motor, made of 304 material, capable of transporting 10 cubic meters per hour. Horizontal length 9000. inclined length 3100. height 1450.

　　Tilted screw conveyor, material: fine sand with water content, dilute concentrate, concentration of about 90%, conveying capacity of 300-500 kilograms per hour, with a relatively high density, requiring sealing, and inclined conveying.

　　Mainly engaged in glass reaction vessels, the customer is equipped with a tilted spiral feeding machine to add materials to the tank. The material is catalyst powder, with a tilted angle of about 30 °, requiring high-precision, sealed, variable frequency, and a size of 250.

　　Arch breaker+screw conveyor, material: rust, iron red powder, 90 degrees. Below is a spiral with a diameter of 165 and a slope of 40 degrees. Install an arch breaker between the silo and the spiral to prevent material from sticking to the wall or forming arch bridges.

　　Biomass inclined screw feeder, crushed reed material with particle size less than 5mm, material temperature of 180 ℃, conveying capacity of 30m ³/h, inclined angle of 35 degrees, requires a movable screw feeder.

　　Spiral conveyor, transporting tobacco, horizontal spiral conveyor, diameter: 315mm, length: 21m, inclination angle: 0 °. Tilted screw conveyor, diameter: 315mm, length: 9m, tilt angle: 20 °, made of stainless steel.
