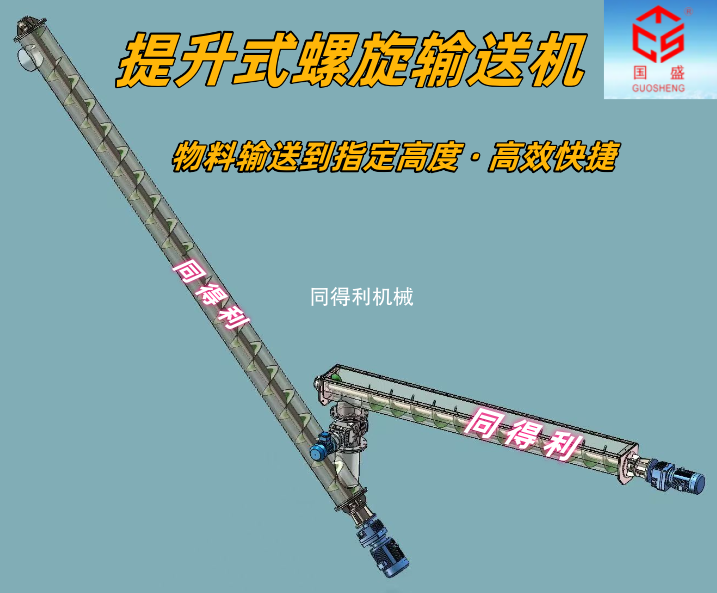

LSY提升式螺旋输送机核心作用是‌利用旋转螺旋叶片在密闭管内推移物料，实现粉体、颗粒及小块状物料的短距离垂直(或大倾角)高 效输送‌，兼具空间节省与防尘密封优势 。‌‌LSY提升式螺旋输送机主要为垂直⊥或大倾角(通常>45°)，需配合水平螺旋输送机以保证进料压力 。

　　The core function of LSY lifting screw conveyor is to use rotating spiral blades to push materials inside a closed pipe, achieving efficient short distance vertical (or large inclination angle) transportation of powders, particles, and small block materials, with the advantages of space saving and dust-proof sealing. The LSY lifting screw conveyor is mainly vertical or with a large inclination angle (usually>45 °), and needs to be matched with a horizontal screw conveyor to ensure the feeding pressure.

　　LSY提升式螺旋输送机：

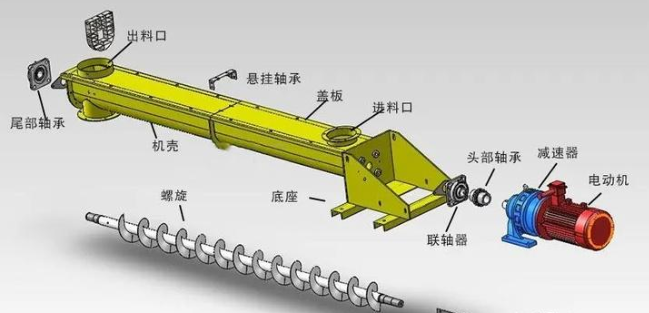

　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。

　　特点：物料定位输送;透明视窗查看物料流动。

　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。

　　规格参考‌：螺旋直径有LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200等规格，或者非标定制;输送量0.1m³/h~300m³/h。

　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。

　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)

　　LSY提升式螺旋输送机适用于流动性好、干燥的‌粉体、颗粒及小块状物料‌，不建议输送粘性大、易结块或易变质物料 。

　　提升式螺旋轴高速旋转(转速高于水平式螺旋)，物料受离心力作用紧压机壳内壁，产生足够摩擦阻力阻止其随叶片同步旋转 。全封闭管/槽结构防止粉尘外溢、物料受潮或外界污染。部分机型可在输送过程中同步进行冷却或电加热作业 。结构类型‌：分为有轴螺旋(适合干粉)和无轴螺旋(适合稍粘物料)，外壳多为 U 型或管式 。

　　垂直螺旋输送机的螺旋体的转速比普通螺旋输送机的要高，输送的物料在离心力的作用下，与料槽间产生了摩擦力，该摩擦力阻止物料随螺旋叶片一起旋转并克服了物料下降的重力，从而实现了物料的垂直输送。垂直⊥输送量小，输送高度小，转速较高，能耗大。适宜输送流动性好的粉末状物料，主要用于提升物料，提升高度一般不大于10米。

　　LSY提升式输送机生产厂家采购指南：

　　在采购该设备时需将物料的颗粒度大小、物料密度、输送量、输送距离与输送角度告知我们同得利生产厂家，由我们同得利生产厂家帮您选型，如果您对该参数不了解时，应由厂家委派技术人员现场实际测量、设计生产。

　　部分客户需求：

　　螺旋输送机提升式，物料：磷化铝，密度2.42g/cm3.每小时提升6吨，粉尘防爆电机A20.电机在上部，角度30度，下料口不超过1.5米，进料口口径600mm，提升高度1.5米，筒式螺旋，材质不锈钢，螺旋叶片厚度8-10mm。

　　水平螺旋+提升式+旋转阀，DN200 高密封，304材质，物料类型:PA塑料颗粒成品料，堆积密度:0.7g/cm3.单套系统产量:3500kg/h，总产量:按系统数量叠加，输送条件:水平距离≤10m，提升高度s6m。

　　提升式螺旋给料机，粉状物料，每小时400-500公斤，堆密度0.6.提升高度2.5m，材质316.

　　分配螺旋给料机和星型卸料器：出力8t/h，用于散料和成型料从半地下料斗至带式输送机，从0米至4米高度。螺旋给料机满足≥50kPa密封要求。星型给料机配合螺旋给料机实现双重密封。

　　螺旋输送机一个喂料，一个提升式输送，物料：工业盐，输送量3.5t/h，材质不锈钢304.

　　主要输送介质:玉米杂质粉末状及灰尘，温度:常温，产能3T/h，304材质，要耐磨性好的，现有的用的GX型时间不长，需要经常更换，磨损严重。

　　提升式螺旋上料机，物料粉体，转运砂子，水泥，建筑垃圾等，每次输送量500公斤，提升高度6米。

　　破碎阀+提升式螺旋输送机+星型卸料阀，部分物料结块破碎打散后经过筛分，通过提升螺旋输送，到管道罗茨风机吹，输送量3~5t/h左右，密封卸料阀，需要锁气功能。

　　螺杆上料机，输送的物料是粉末状和小颗粒状，用于无害化处理。每小时的输送能力是10t。上料螺杆输送机的水平跨度6m，高度提升4m，从地面输送到下一地点。

　　水平+垂直螺旋输送机，介质干泥，粉料，需要按图纸定制，出口新加坡，材质SUS304.1000kg/h,DN200.

　　风送式旋转阀+提升式螺旋上料机，介质：聚合氧化铝，有气源，每次8吨左右的聚合氯化铝需要输送卸料，输送到料仓，距离大概9米，垂直高度5米左右。

　　旋转供料器+水平式螺旋给料机+垂直螺旋，含S02、Nox、粉尘和消石灰粉，输送量:1~2t/h，输送管道DN80.粉尘密度1000kg/m，水平距离4m，垂直高度3m。

　　LSY lifting screw conveyor:

　　Spiral conveyor lift type, material: aluminum phosphide, density 2.42g/cm3. lifting 6 tons per hour, dust explosion-proof motor A20. motor at the top, angle 30 degrees, discharge port not exceeding 1.5 meters, feed port diameter 600mm, lifting height 1.5 meters, cylindrical spiral, material stainless steel, spiral blade thickness 8-10mm.

　　Horizontal spiral+lifting+rotary valve, DN200 high seal, 304 material, material type: PA plastic particle finished material, bulk density: 0.7g/cm3. single system output: 3500kg/h, total output: stacked according to the number of systems, conveying conditions: horizontal distance ≤ 10m, lifting height s6m.

　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.

　　Features: Material positioning and conveying; View material flow through a transparent window.

　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.

　　Specification reference: Spiral diameter available LSY80、LSY100、LSY150、LSY200、LSY250、LSY300、LSY400、LSY500、LSY600、LSY800、LSY1000、LSY1200 Equal specifications or non-standard customization; The conveying capacity ranges from 0.1m ³/h to 300m ³/h.

　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.

　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)

　　LSY lifting screw conveyor is suitable for powders, particles, and small pieces of materials with good fluidity and dryness. It is not recommended to transport materials with high viscosity, easy agglomeration, or easy deterioration.

　　The elevating spiral shaft rotates at high speed (higher than the horizontal spiral), and the material is tightly pressed against the inner wall of the casing by centrifugal force, generating sufficient frictional resistance to prevent it from synchronously rotating with the blades. The fully enclosed pipe/groove structure prevents dust overflow, material moisture or external pollution. Some models can perform cooling or electric heating operations simultaneously during the conveying process. Structural types: divided into axial spiral (suitable for dry powder) and shaftless spiral (suitable for slightly viscous materials), with the shell mostly being U-shaped or tubular.

　　The rotational speed of the spiral body of the vertical screw conveyor is higher than that of the ordinary screw conveyor. Under the action of centrifugal force, the conveyed material generates frictional force between the material and the chute, which prevents the material from rotating together with the spiral blades and overcomes the gravity of the material's descent, thus achieving vertical conveying of the material. Vertical conveying capacity is small, conveying height is small, rotation speed is high, and energy consumption is high. Suitable for conveying powdery materials with good fluidity, mainly used for lifting materials, with a lifting height generally not exceeding 10 meters.

　　LSY Lift Conveyor Manufacturer Procurement Guide:

　　When purchasing this equipment, you need to inform us, Tongdeli manufacturer, of the particle size, material density, conveying capacity, conveying distance, and conveying angle of the material. Tongdeli manufacturer will help you select the appropriate parameters. If you are not familiar with these parameters, the manufacturer should assign technical personnel to measure, design, and produce on site.

　　Partial customer requirements:

　　Elevating spiral feeder, powder material, 400-500 kilograms per hour, bulk density 0.6. lifting height 2.5m, material 316.

　　Distribution of spiral feeder and star shaped unloader: with an output of 8t/h, used for bulk and formed materials from semi underground hoppers to belt conveyors, from 0 meters to 4 meters in height. The spiral feeder meets the sealing requirement of ≥ 50kPa. The star shaped feeder is paired with a spiral feeder to achieve dual sealing.

　　Spiral conveyor with one feeding and one lifting conveyor, material: industrial salt, conveying capacity of 3.5t/h, material: stainless steel 304.

　　Main conveying medium: corn impurity powder and dust, temperature: room temperature, production capacity 3T/h, made of 304 material, with good wear resistance. The existing GX type has not been used for a long time and needs to be replaced frequently, resulting in severe wear and tear.

　　Lift type spiral feeder, material powder, transport sand, cement, construction waste, etc., with a conveying capacity of 500 kilograms per time and a lifting height of 6 meters.

　　Crushing valve+lifting screw conveyor+star shaped discharge valve. Some materials are agglomerated, broken and dispersed, screened, and then transported by lifting screw conveyor to pipeline Roots blower for a conveying capacity of about 3-5 t/h. The discharge valve is sealed and requires air locking function.

　　Screw feeder, conveying materials in powder and small particle form, used for harmless treatment. The conveying capacity per hour is 10 tons. The horizontal span of the feeding screw conveyor is 6 meters, and the height is raised by 4 meters to transport from the ground to the next location.

　　Horizontal+vertical screw conveyor, medium dry mud, powder, needs to be customized according to the drawings, exported to Singapore, material SUS304. 1000kg/h, DN200.

　　Pneumatic rotary valve+lifting spiral feeder, medium: polyaluminum oxide, with gas source, about 8 tons of polyaluminum chloride need to be transported and unloaded each time, transported to the silo, with a distance of about 9 meters and a vertical height of about 5 meters.

　　Rotating feeder+horizontal spiral feeder+vertical spiral, containing SO2. NOx, dust and hydrated lime powder, conveying capacity: 1-2 t/h, conveying pipeline DN80. dust density 1000kg/m, horizontal distance 4m, vertical height 3m.
