料仓为钛材，涡轮刮料器配置的刮料杆长度需≥600mm，主体材质使用316L不锈钢材质，涡轮刮料器需配置下方变径法兰组件(使用316L不锈钢材质)，变径后的法兰规格与原料仓的法兰规格一致(PN25 DN100 FM凹面 HG/T20592-2009 B系列)，提供涡轮刮料器的安装螺栓螺母(材质A193.B8M Cl.2/A194-8)。物料特性：物料为强碱性，松散堆密度受到破碎粒度影响，范围为0.09~0.4t/m3.粒度越细堆密度越小;料仓物料蕞高堆1500mm高。其他要求：涡轮刮料器需配置防爆电机，防爆等级Ex d IIB T4.防护等级：IP55.绝缘等级：F，防腐等级：WF2.注意，防爆电机应配置金属格兰头。

　　DN100破拱机技术参数：

　　1、设备主体材质为316.

　　2、焊接型机壳(需要做气密检测)。

　　3、配亚德客调压阀。

　　4、配接近开关。

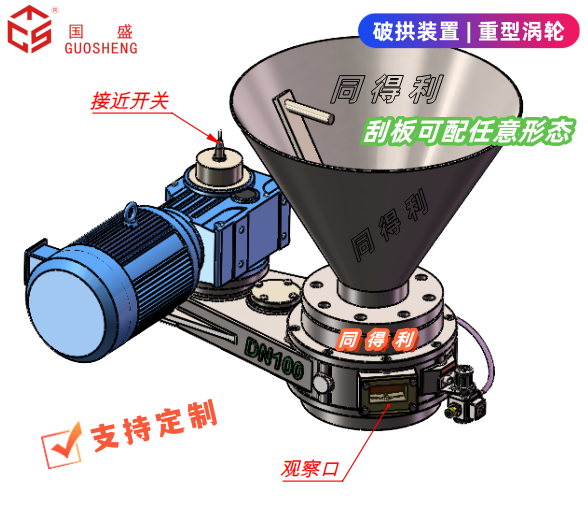

　　5、增加观察口，可观察破拱物料状况。

　　6、电机：0.75kW。

　　7、减速机：KAF37系列。

　　8、输出转速：约5r/min。

　　9、输出扭矩：290Nm。

　　10、传动方式：齿轮。

　　11、四氟油封*4.

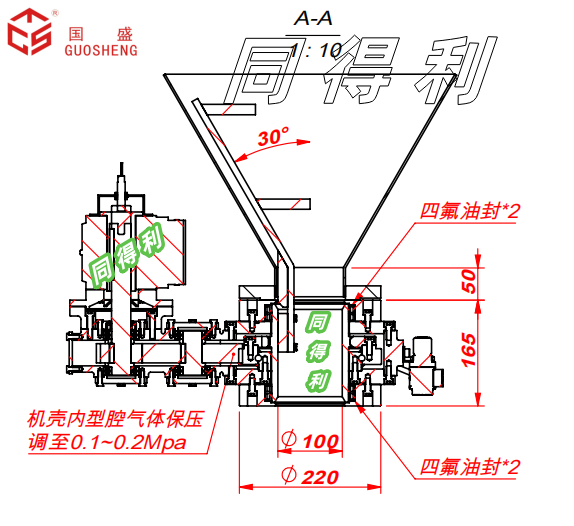

　　12、内径φ100.外径φ220mm。

　　13、高度165mm。

　　14、机壳内型腔气体保压调至0.1~0.2MPa。

　　旋转破拱机工作原理：

　　安装在料仓底部，电机带动齿轮传动，驱动刮板绕仓壁做圆周运动;刮板在旋转中直接把结拱、粘仓的物料刮下来，物料靠重力顺畅下落，从“中心流”恢复成“整体流”。 和空气炮靠气流冲击、振动器靠仓壁振动不同，它是纯机械破拱，对高湿、高粘物料更直接有效，也不会把物料振实。刮料式对仓壁无振动损伤、噪音低，适合薄壁或对振动敏感的料仓。

　　耐高温破拱阀进/出 口法兰尺寸(mm)DN100-PN10;物料温度：200-300℃;输送场合压力80KPa;壳体、旋转内圈座材质310模具铸件，搅拌杆材质310;搅拌杆形式扇形;轴(mm)50mm;密封方式气密封-斯特封;物料接触材质精抛光，表面处理喷砂;重型回转轴承;直连传动;破拱阀转速 (r/min)5 -7转;电机(含配件要求)西门子 2.2KW 粉尘防爆 380V-HZ50;减速机(含配件要求)SEW-K67-70.46-2.2KW。

　　工程塑料(聚乙醛、聚酰胺、聚氨酯等)的聚合与反应

　　塑料(环氧树脂、聚酰胺、聚酯等)的混炼

　　化学产品(密封材料、粉末涂料等)的揉捏

　　用于电材料产品的揉捏(电池材料、陶瓷、碳、EMC等)

　　常州同得利机械厂拥有多年的研发生产/定制破拱机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

　　The silo is made of titanium material, and the scraper rod length of the turbine scraper should be ≥ 600mm. The main material is made of 316L stainless steel, and the turbine scraper should be equipped with a lower variable diameter flange component (made of 316L stainless steel). The flange specification after variable diameter is consistent with the flange specification of the raw material silo (PN25 DN100 FM concave HG/T20592-2009 B series). Installation bolts and nuts (material A193. B8M Cl.2/A194-8) for the turbine scraper are provided. Material characteristics: The material is strongly alkaline, and the loose bulk density is affected by the crushing particle size, ranging from 0.09 to 0.4 t/m3. The finer the particle size, the lower the bulk density; The maximum height of the material in the silo is 1500mm. Other requirements: The turbine scraper needs to be equipped with an explosion-proof motor, explosion-proof level Ex d IIB T4. protection level IP55. insulation level F, and anti-corrosion level WF2. Note that explosion-proof motors should be equipped with metal gland heads.

　　Technical parameters of DN100 arch breaking machine:

　　1. The main material of the device is 316.

　　2. Welded casing (requires air tightness testing).

　　3. Equipped with Yadeke pressure regulating valve.

　　4. Equipped with proximity switch.

　　5. Add observation ports for observation

　　6. Motor: 0.75kW.

　　7. Gearbox: KAF37 series.

　　8. Output speed: about 5r/min.

　　9. Output torque: 290Nm.

　　10. Transmission mode: gear.

　　11. PTFE oil seal * 4

　　12. The inner diameter is 100mm and the outer diameter is 220mm.

　　13. Height 165mm.

　　14. Adjust the gas pressure inside the casing cavity to 0.1~0.2MPa.

　　Working principle of rotary arch breaking machine:

　　Installed at the bottom of the silo, the motor drives the gear transmission to drive the scraper to make circular motion around the silo wall; The scraper directly scrapes off the arched and stuck materials during rotation, and the materials fall smoothly by gravity, returning from the "center flow" to the "overall flow". Unlike air cannons that rely on airflow impact and vibrators that rely on chamber wall vibration, it is a pure mechanical arch breaking machine that is more direct and effective for high humidity and high viscosity materials, and does not compact the materials. Scraping type has no vibration damage to the warehouse wall, low noise, and is suitable for thin-walled or vibration sensitive silos.

　　High temperature resistant arch breaking valve inlet/outlet flange size (mm) DN100-PN10; Material temperature: 200-300 ℃; The pressure in the conveying environment is 80KPa; Shell, rotating inner ring seat material 310 mold casting, mixing rod material 310; The mixing rod is fan-shaped in shape; Axis (mm) 50mm; Sealing method: gas seal - seal; Fine polishing of materials in contact with materials, surface treatment by sandblasting; Heavy duty rotary bearings; Direct transmission; The speed of the arch breaking valve (r/min) is 5-7 revolutions per minute; Motor (including accessory requirements) Siemens 2.2KW dust explosion-proof 380V-HZ50; Gearbox (including accessory requirements) SEW-K67-70.46-2.2KW.

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of arch breaking machines and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
