精准喂料螺旋送料机也叫计量螺旋输送机、定量螺杆上料机或称重螺旋喂料机，是用于物料定量给料及重量检测的连续输送设备，主要由稳流给料螺旋、称重桥架、减速电机、称重传感器、测速传感器、称重控制仪表和电控系统组成。　　Precision feeding screw feeder, also known as measuring screw conveyor, quantitative screw feeder or weighing screw feeder, is a continuous conveying equipment used for material quantitative feeding and weight detection. It mainly consists of a steady flow feeding screw, weighing bridge, reduction motor, weighing sensor, speed sensor, weighing control instrument and electronic control system.　　主要结构：破拱部分.螺旋输送部分.伺服电机.控制箱。　　特点：破拱解决物料容易架桥.精准喂料输送。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟。　　主要使用行业：锂电池.化工.制药.食品行业等。　　物料通过螺旋旋转连续输送，称重桥架采集重量信号，测速传感器检测速度信号，两者送入称重控制器进行微积分处理，显示瞬时流量和累计量。将实际流量与设定流量比较，调节驱动装置使差值趋近零，实现精确控制。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　Main structure: arch breaking section Spiral conveying section Servo motor Control box.　　Characteristic: Breaking the arch solves the problem of easy bridging of materials Accurate feeding and conveying.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene.　　Main industry of use: lithium batteries Chemical industry pharmacy. Food industry, etc.　　The material is continuously conveyed through spiral rotation, and the weight signal is collected by the weighing bridge. The speed sensor detects the speed signal, and both are sent to the weighing controller for differential processing, displaying the instantaneous flow rate and cumulative amount. Compare the actual flow rate with the set flow rate, adjust the driving device to make the difference close to zero, and achieve precise control.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

　　可原地抽出螺旋叶片清洗清理，清理完毕后螺旋杆推入，旋转定位螺栓即可。螺旋叶片设有多种形式，适用多种不同特殊物料;螺旋轴承采用多层保护系统，确保长期工作。　　The spiral blade can be removed and cleaned in place. After cleaning, the spiral rod can be pushed in and the positioning bolt can be rotated. Spiral blades come in various forms and are suitable for different special materials; Spiral bearings adopt a multi-layer protection system to ensure long-term operation.　　主要结构：螺旋杆.壳体.端盖.减速机.滑竿。　　特点：快速拆卸.快速清理.快速检修.。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟。　　主要使用行业：锂电池.化工.制药.食品行业等。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　部分客户需求：　　清洗型螺旋上料机：物料是淀粉，4-5m³/h，快拆可清洗，电机粉尘气体复合型防爆，内外抛光304.气密封，ExdIIBT4/ExtIIIBT130℃防护级。　　可清理清洗，物料：硅胶粉料，DN200.滑杆式，120℃左右，耐高温，不锈钢材质，螺杆输送机长度3米。　　滑杆式推拉螺旋输送机，水泥厂用，尺寸400.材质304.SEW减速机，IIICT4防爆变频控制电机。　　滑杆快拆绞龙输送机，物料：聚丙烯酰胺，颗粒或粉状，进出口为DN200国标法兰，型式:滑杆抽拉快开结构，材质:304不锈钢:外表喷砂处理，SEW电机和国茂减速机。　　Partial customer requirements:　　Cleaning type spiral feeder: The material is starch, 4-5m ³/h, quick detachable and washable, motor dust gas composite explosion-proof, internally and externally polished 304. airtight seal, ExdIIBT4/ExtIIIBT130 ℃ protection level.　　Cleanable and washable, material: silicone powder, DN200. Sliding rod type, around 120 ℃, high temperature resistant, made of stainless steel material, screw conveyor with a length of 3 meters.　　Sliding rod push-pull screw conveyor, used in cement plants, size 400. material 304. SEW reducer, IIICT4 explosion-proof variable frequency control motor.　　Sliding rod quick dismantling screw conveyor, material: polyacrylamide, particles or powder, inlet and outlet are DN200 national standard flanges, type: sliding rod pulling quick opening structure, material: 304 stainless steel: surface sandblasting treatment, SEW motor and Guomao reducer.　　Main structure: Spiral rod Shell End cap Reducer. Slider.　　Features: Quick disassembly Quick cleaning Quick maintenance.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene.　　Main industry of use: lithium batteries Chemical industry pharmacy. Food industry, etc.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

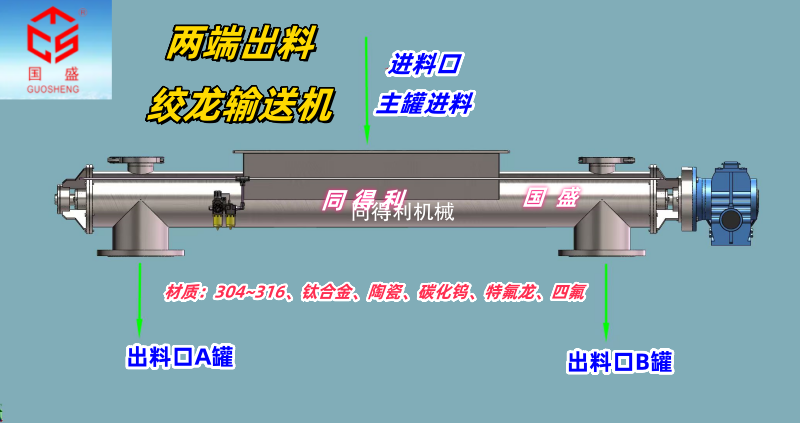

　　两端出料螺旋输送机是一种‌单点进料、双向分流‌的专用输送设备，核心作用是将中间投入的物料通过‌反向螺旋叶片‌同时向机头、机尾两个方向推送，实现‌一机两向分流供料‌或‌均衡配给‌。‌‌　　The two end discharge screw conveyor is a specialized conveying equipment with single point feeding and bidirectional diversion. Its core function is to push the materials put in the middle towards the head and tail of the machine simultaneously through reverse spiral blades, achieving one machine two-way diversion feeding or balanced distribution. ‌‌　　两端出料螺旋输送机常见采用双轴螺旋旋转产生轴向推力‌，配合‌机壳内多点卸料口与闸门控制‌，实现物料从中间进料、向‌两端同时或选择性排出‌的连续推移输送。　　Two end discharge screw conveyors commonly use dual axis spiral rotation to generate axial thrust, combined with multi-point discharge ports and gate control inside the casing, to achieve continuous pushing and conveying of materials from the middle to both ends simultaneously or selectively.　　两端出料螺旋输送机核心工作原理：　　‌动力驱动‌：电机经减速机带动螺旋轴(有轴或无轴)旋转，螺旋叶片对物料施加法向推力。　　‌轴向移动‌：物料受重力及机壳壁摩擦阻力约束，不随叶片旋转，仅在叶片轴向分力作用下沿槽底向前滑移(类似螺母沿螺杆运动)。　　‌双向分流‌：进料口通常位于机槽中部或特定位置，物料被旋转叶片同时推向左右两侧;两端出料口设有‌调节闸门或挡板‌，通过开闭控制单端出料、双端同时出料或比例分配 。　　‌连续推移‌：后续物料持续推动前方物料形成“推挤流”，直至从选定出料口排出 。‌‌　　两端出料螺旋输送机关键结构及材质：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：中间进料，两端出料。结构紧凑，占用空间小;出口配有透明视窗，以便观察物料的流动状况。　　行业应用：锂电新能源、制药、化工、食品、环保行业、钢厂等。　　材质：Q235、304、310S、316L、TC4等。　　处理：镜面、碳化钨、特氟龙、陶瓷粉、衬四氟等。　　两端出料螺旋输送机适用场景：　　‌适用物料‌：粉状、颗粒状及小块状散料，温度 -20℃~250℃，不宜输送粘性大、易结块或易变质物料 。　　应用行业：锂电池、化工、医药、食品、塑胶、环保、水泥、矿山、电厂、钢厂等。　　‌优势‌：密封性好、可多点装卸、结构紧凑、支持双向灵活卸料。　　‌注意‌：反向输送或长期单侧满载可能影响轴承寿命，需按设计工况操作 。‌‌　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机，卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机/旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　部分客户需求：　　储罐粉料通过利用螺旋输送机输送，把粉料输送到A罐子，当A罐子满了，再把料输送到B罐子，物料是生物质粉，8t/h的输送量，堆密度在400左右，粒径在1mm，DN300.接触物料部分2205双向钢材质或者哈氏合金。　　物料：三水合氟化铝AlF3·3H2O，氢氧化铝，密度1.0t/m³，双向给料螺栓输送机(一个入口， 两个出口)，主要是把物料输送到两边罐子。尺寸DN300.每端距离2米，材质不锈钢304.　　物料化肥，DN500.304材质。与物料接触部分为06Cr19Ni10不锈钢，其它部分碳钢，把化肥输送到两端分流罐子，中间进料。　　物料：不到1mm化工产品有腐蚀性，料仓下料易结块堵塞，严重影响称重计量包装，需要加装破碎卸料阀，DN300接口，316L材质，破碎阀下面接双向螺旋给料机，两端出料到各自对应的储罐。　　Core working principle of two end discharge screw conveyor:　　Power drive: The motor drives the spiral shaft (with or without shaft) to rotate through the reducer, and the spiral blades apply normal thrust to the material.　　Axial movement: The material is constrained by gravity and frictional resistance of the casing wall, and does not rotate with the blades. It only slides forward along the groove bottom under the axial force of the blades (similar to a nut moving along a screw).　　Bidirectional diversion: The feed inlet is usually located in the middle of the machine slot or at a specific position, and the material is pushed to the left and right sides simultaneously by the rotating blades; Both ends of the discharge port are equipped with adjustable gates or baffles, which control the discharge of single end, simultaneous discharge of both ends, or proportional distribution through opening and closing.　　Continuous pushing: The subsequent material continues to push the material ahead to form a "pushing flow" until it is discharged from the selected discharge port. ‌‌　　Key structures and materials of the two end discharge screw conveyor:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.　　Features: Feed in the middle and discharge at both ends. Compact structure and small space occupation; The exit is equipped with a transparent window for observing the flow of materials.　　Industry applications: lithium battery new energy, pharmaceutical, chemical, food, environmental protection industries, steel mills, etc.　　Materials: Q235. 304. 310S, 316L, TC4. etc.　　Processing: mirror, tungsten carbide, PTFE, ceramic powder, PTFE lining, etc.　　Applicable scenarios for two end discharge screw conveyor:　　Applicable materials: Powder, granular, and small block shaped bulk materials, temperature -20 ℃~250 ℃, not suitable for conveying materials with high viscosity, easy agglomeration, or easy deterioration.　　Application industries: lithium batteries, chemicals, pharmaceuticals, food, plastics, environmental protection, cement, mining, power plants, steel mills, etc.　　Advantages: Good sealing, multi-point loading and unloading, compact structure, and support for bi-directional flexible unloading.　　Attention: Reverse conveying or long-term one-sided full load may affect the bearing life, and should be operated according to the design conditions. ‌‌　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our spiral conveyor/rotary valve is capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.　　Partial customer requirements:　　The storage tank powder is transported by a screw conveyor to tank A. When tank A is full, the material is then transported to tank B. The material is biomass powder with a conveying capacity of 8t/h, a bulk density of around 400. a particle size of 1mm, DN300. and a contact material of 2205 bidirectional steel or Hastelloy alloy.　　Material: AlF3 · 3H2O trihydrate aluminum fluoride, aluminum hydroxide, density 1.0t/m ³, bidirectional feeding bolt conveyor (one inlet, two outlets), mainly used to transport materials to the two tanks. Size DN300. distance of 2 meters from each end, made of stainless steel 304.　　Material fertilizers, DN500. 304 material. The part in contact with the material is made of 06Cr19Ni10 stainless steel, while the other part is made of carbon steel. The fertilizer is transported to the two ends of the diversion tank and fed into the middle.　　Material: Chemical products with a diameter of less than 1mm are corrosive, and the material stored in the silo is prone to clumping and blockage, which seriously affects weighing and measuring packaging. It is necessary to install a crushing discharge valve with a DN300 interface and 316L material. The crushing valve should be connected to a two-way spiral feeder under it, and the two ends should be discharged to their corresponding storage tanks.

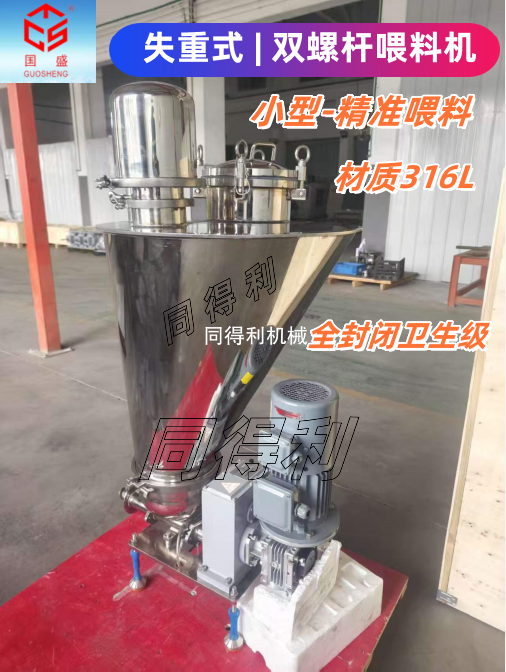

　　Loss-in-Weight Feeder进口品牌微量失重式喂料机可以替代吗?如申克Schenck失重秤喂料机、科倍隆楷创Coperion K-Tron、瑞士Gericke格律克、意大利百旺Piovan、日本久保田NX Feeder等。　　Can the Loss in Weight Feeder imported brand be replaced with a micro weight loss feeder? Such as Schenck weightlessness scale feeder, Coperion K-Tron, Gericke from Switzerland, Piovan from Italy, NX Feeder from Kubota from Japan, etc.　　失重称重喂料机也称为失重称微型双螺杆给料机、双螺杆失重称喂料机、失重式喂料机等，能够实现高精度微量粉体喂料，满足科学实验室或微量配比添加需求。失重称喂料机独特的高精度喂料和卓 越的全密封性能，在众多工艺流程中占据了重要地位。常用于输送粉料，小颗粒，对流动性差，容易架桥的物料需要配备垂直搅拌装置，以达到破拱的效果，改进设计的单螺杆或者双螺杆可快速拆卸，快速清洗，螺杆根部不会堆积物料。　　The weight loss weighing feeder, also known as the weight loss scale micro twin-screw feeder, twin-screw weight loss scale feeder, weight loss type feeder, etc., can achieve high-precision micro powder feeding and meet the needs of scientific laboratories or micro proportioning addition. The unique high-precision feeding and excellent full sealing performance of the weightlessness weighing feeder occupy an important position in many process flows. Commonly used for conveying powders and small particles, vertical mixing devices are required for materials with poor fluidity and easy bridging to achieve arch breaking effect. The improved design of single or double screws can be quickly disassembled and cleaned, and the material will not accumulate at the root of the screw.　　失重称重喂料机结构组成：　　机械部分由料斗盖、料斗、球形斗、喂料电机及配套减速器或齿轮箱、螺杆、出料口、秤台、底座等组成。还可依据物料特性及客户需要定制垂直搅拌和电机、水平搅拌和叶片、补料仓等。　　称重系统‌：称重传感器实时监测料斗内物料重量变化，将数据反馈给控制器。　　控制部分‌：包括称重传感器、信号放大器、输入输出接口、主机等，通过变频调速控制给料机构流量。‌‌　　Structural composition of weight loss weighing feeder:　　The mechanical part consists of a hopper cover, hopper, spherical hopper, feeding motor and supporting reducer or gearbox, screw, discharge port, weighing platform, base, etc. Vertical mixing and motors, horizontal mixing and blades, replenishment bins, etc. can also be customized according to material characteristics and customer needs.　　Weighing system: The weighing sensor monitors the weight changes of materials in the hopper in real time and feeds back the data to the controller.　　Control part: including weighing sensors, signal amplifiers, input/output interfaces, host, etc., controlling the flow rate of the feeding mechanism through variable frequency speed regulation. ‌‌　　失重称重喂料机工作原理：　　重量变化计算流量‌：称重传感器实时采集秤体重量信号，控制系统计算单位时间内重量变化比率作为瞬时流量。　　闭环反馈控制‌：将实际流量与预设值比较，通过 PID 控制算法调整喂料机构速度，使实际减重速率等于设定喂料速率。　　动态计量方式‌：在物料输送过程中实时监测重量变化，实现精确流量控制。‌‌　　Working principle of weightlessness weighing feeder:　　Weight change calculation flow rate: The weighing sensor collects real-time weight signals of the scale body, and the control system calculates the weight change ratio per unit time as the instantaneous flow rate.　　Closed loop feedback control: Compare the actual flow rate with the preset value, adjust the feeding mechanism speed through PID control algorithm, and make the actual weight reduction rate equal to the set feeding rate.　　Dynamic measurement method: Real time monitoring of weight changes during material transportation to achieve precise flow control. ‌‌　　失重称重喂料机特点：　　自洁啮合式螺杆，针对于流动性差的物料，具有自清洁功能。　　空心弹簧式螺杆，针对于低熔点粘性单一及混合物料。　　叶片式螺杆，有效处理不规则及块状物料。　　密闭式称台设计，有效隔绝物料进入称台，避免干扰设备运行，提高喂料精度及稳定性。　　水平及垂直部分设计特殊搅拌，内壁高精度抛光，三重保险，解决物料架桥。　　特制铝制传动减速箱体，更加轻便，易散热，更适用于夏季高温环境。　　应用：锂电、塑料、化学、食品、制药、洗涤剂、玻纤、橡胶热塑性弹性体、有机硅、氟等高精度配方要求等。　　材质：钛合金，铝合金，304.316.内衬/喷涂陶瓷，碳化钨，特氟龙，四氟等。　　核心控制器：适用于航天级领域，先进的双PID调节，32位高速微芯片控制器，可远程操控。　　传感器：国产优质品牌/进口品牌/客户指定品牌，提高精度分辨率。　　驱动电机：变频电机/伺服电机/客户指定品牌。型号喂料范围料斗容积电机功率精度ModelFeeding rangeHopper volumeMotor powerPrecisionGS-TS200.1-10kg/h0.01m³0.37KW±0.25%~±0.5%GS-TS282-200kg/h0.04m³0.75KWGS-TS3850-1000kg/h0.08m³1.5KWGS-TS46300-1600kg/h0.12m³2.2KWGS-TS64500-3000kg/h0.15m³3KW非标定制非标定制　　Characteristics of weightlessness weighing feeder:　　Self cleaning meshing screw, designed for materials with poor fluidity, has self-cleaning function.　　Hollow spring screw, designed for low melting point viscous single and mixed materials.　　Blade type screw effectively handles irregular and block shaped materials.　　The closed weighing platform design effectively isolates materials from entering the platform, avoiding interference with equipment operation and improving feeding accuracy and stability.　　Special mixing is designed for both horizontal and vertical sections, with high-precision polishing of the inner wall and triple safety to solve material bridging.　　Specially made aluminum transmission gearbox, more lightweight, easy to dissipate heat, and more suitable for high temperature environments in summer.　　Application: High precision formula requirements for lithium batteries, plastics, chemicals, food, pharmaceuticals, detergents, fiberglass, rubber thermoplastic elastomers, organosilicon, fluorine, etc.　　Material: Titanium alloy, aluminum alloy, 304. 316. lined/sprayed ceramic, tungsten carbide, PTFE, etc.　　Core controller: Suitable for aerospace grade fields, advanced dual PID regulation, 32-bit high-speed microchip controller, capable of remote control.　　Sensors: Domestic high-quality brands/imported brands/customer specified brands to improve accuracy and resolution.　　Drive motor: Variable frequency motor/servo motor/customer specified brand.　　同得利公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　我公司始终坚持“质量第 一、用户至 上”的宗旨，服务于社会，诚信于业界，竭诚欢迎世界各地的业界好友光临指导，洽谈合作。《扫二维码-添加 陈经理 微信-咨询失重称微型双螺杆喂料机》　　On the basis of strengthening enterprise management, Tongdeli Company relies on technological progress to improve its technological content, advanced production and processing equipment, high-quality management concepts, a high-quality employee team, an effective quality assurance system, and perfect after-sales service, providing reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.　　Our company always adheres to the principle of "quality first, customer first", serves society, and is honest in the industry. We sincerely welcome industry friends from all over the world to visit and guide us, and negotiate cooperation.

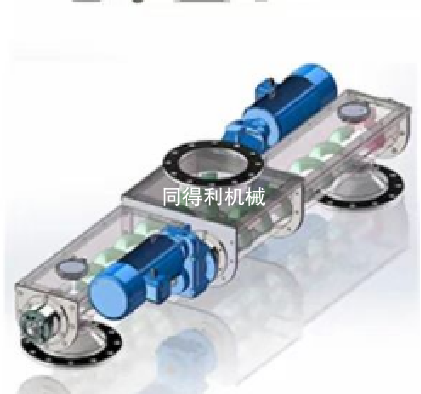

　　一机双向出料的定制机型‌，从一个进料口分送到两个不同出口。　　主要结构：螺杆.壳体.端盖.减速机。　　特点：双向出料.结构紧凑.占用空间小.出口配有透明视窗.以便观察物料的流动状况。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟.陶瓷.碳钢等。　　主要使用行业：食品.制药.化工.锂电新能源行业.环保.水泥.电厂.钢厂等。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　A customized machine with bi-directional discharge, delivering from one feeding port to two different outlets.　　Main structure: screw Shell End cap Reducer.　　Features: Two way discharge Compact structure Small space occupation The exit is equipped with a transparent window In order to observe the flow of materials.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene Ceramics Carbon steel, etc.　　Mainly used in the food industry pharmacy. Chemical industry Lithium battery new energy industry environment protection Cement Power plant. Steel mills, etc.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

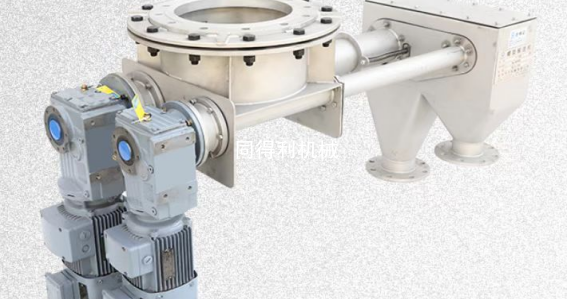

　　主要结构：螺旋.壳体.端盖.减速机。　　特点：调节范围更广范.给料更精准。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟.陶瓷.碳钢等。　　主要使用行业：食品.制药.化工.锂电新能源行业.环保.水泥.电厂.钢厂等。　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。　　Main structure: Spiral Shell End cap Reducer.　　Features: Wide range of adjustment More precise feeding.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene Ceramics Carbon steel, etc.　　Mainly used in the food industry pharmacy. Chemical industry Lithium battery new energy industry environment protection Cement Power plant. Steel mills, etc.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

　　U型螺旋输送机(也称为U型绞龙输送机或U型螺杆上料机等)槽体两侧壁垂直，底部呈半圆型，内径通常比螺旋叶片直径大3~10mm，以减少摩擦并防止卡料 。驱动带动螺旋轴旋转，叶片推动物料沿U型槽轴向移动;物料自重与槽壁摩擦力阻止其随叶片圆周转动，仅做轴向前进，实现水平或小角度倾斜输送。　　The two side walls of the U-shaped screw conveyor (also known as U-shaped screw conveyor or U-shaped screw feeder, etc.) are vertical, and the bottom is semi-circular. The inner diameter is usually 3-10mm larger than the diameter of the screw blades to reduce friction and prevent material jamming. Drive the spiral shaft to rotate, and the blades push the material to move axially along the U-shaped groove; The self weight of the material and the frictional force of the groove wall prevent it from rotating along the circumference of the blade, and only move forward axially, achieving horizontal or small angle inclined conveying.　　同得利U型螺旋输送机：　　结构组成：主轴、螺旋叶片、料槽、机盖、驱动装置等。　　特点：物料定位输送;透明视窗查看物料流动。　　行业应用：锂电正负极、化工、制药、食品、塑料、水泥、冶金、钢厂、电厂、环保、矿山、等。　　规格参考‌：螺旋直径有LUS80、LUS100、LUS150、LUS200、LUS250、LUS300、LUS400、LUS500、LUS600、LUS800、LUS1000、LUS1200等规格，或者非标定制;输送量1m³/h~460m³/h。　　材质：材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N) 　　Tongdeli U-shaped screw conveyor:　　Structural composition: spindle, spiral blades, material trough, machine cover, driving device, etc.　　Features: Material positioning and conveying; View material flow through a transparent window.　　Industry applications: lithium battery positive and negative electrodes, chemical, pharmaceutical, food, plastic, cement, metallurgy, steel mills, power plants, environmental protection, mining, etc.　　Specification reference: Spiral diameter available LUS80、LUS100、LUS150、LUS200、LUS250、LUS300、LUS400、LUS500、LUS600、LUS800、LUS1000、LUS1200 Equal specifications or non-standard customization; The conveying capacity ranges from 1m ³/h to 460m ³/h.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)　　同得利U型螺旋输送机特点：　　1、优异的密闭性：螺旋输送机的结构特点使得其具有优异的密封性能和防尘效果。U型螺旋输送机配备了填料密封或机械密封装置，及气密封装置，均可按需采用多道密封，性能值拉满，进一步防止物料泄漏与粉尘外溢。　　2、物料适应性较强：能够处理各种散装物料，如颗粒状、粉状和块状的物品，适用于多种行业领域的应用场景。　　3、承载能力强，运行安全可靠：U型螺旋输送机采用高强度螺旋轴和耐磨叶片，整机运行平稳，可稳定承载各类粉状、颗粒物料的长周期输送任务。设计符合JB/T7679-2008《螺旋输送机》专 业标准，从设计源头保证了设备的可靠性。物料在叶片推动下形成定向输送，同时受槽体壁面约束，输送过程稳定可控。　　4、布置灵活，可多点装卸料：U型螺旋输送机支持输送线路上任意一点装载或卸载，可实现多点进料、多点卸料。输送方向可逆向，也可同时向相反两方向输送，出料口位置灵活可调。　　5、能耗较低：同得利由于采用了先进的传动技术和合理的结构设计，U型螺旋输送机在运行过程中能源消耗较小;此外，它还具备了操作简单、维护方便等特点。　　Characteristics of Tongdeli U-shaped screw conveyor:　　1. The structural characteristics of the excellent airtight screw conveyor make it have excellent sealing performance and dust-proof effect. The U-shaped screw conveyor is equipped with packing seal or mechanical seal device, as well as gas seal device, which can adopt multiple seals as needed, with full performance value to further prevent material leakage and dust overflow.　　2. Strong material adaptability: able to handle various bulk materials, such as granular, powdery, and block shaped items, suitable for application scenarios in various industries.　　3. Strong carrying capacity and safe and reliable operation: The U-shaped screw conveyor adopts high-strength screw shafts and wear-resistant blades, ensuring smooth operation and stable carrying of various powder and granular materials for long-term conveying tasks. The design complies with the professional standard JB/T7679-2008 "Spiral Conveyor", ensuring the reliability of the equipment from the design source. The material is transported in a directional manner under the push of the blades, while being constrained by the wall of the tank, ensuring a stable and controllable conveying process.　　4. Flexible arrangement and multi-point loading and unloading: The U-shaped screw conveyor supports loading or unloading at any point on the conveyor line, enabling multi-point feeding and unloading. The conveying direction can be reversed or conveyed in opposite directions simultaneously, and the position of the discharge port is flexible and adjustable.　　5. Low energy consumption: Due to the use of advanced transmission technology and reasonable structural design, the U-shaped screw conveyor consumes less energy during operation; In addition, it also has the characteristics of simple operation and easy maintenance.　　部分客户需求：　　锂电负极排料旋转阀+U型螺旋上料机：3t/h，尺寸：DN250.主体材质：SUS304;叶片数量：16片;旋转叶片与内壁间隙要求：0.15-0.2mm;工频电机：1.1KW;33转/分钟，额定电流：2.6A;电机：安徽皖南，减速机：国贸减速机，新国标二级能效IE4.IP55;采用多腔设计;配有填料+油封;密封锁气;减速机齿轮箱采用硬齿面;轴端密封须可靠，不出现漏粉情况，轴端密封采用石墨盘根密封。　　物料:磷酸铁锂中间体，粒径，1mm~3mm，D50:1mm，堆积密度:1100kg/m;螺旋上料机尺寸300.长度4米;物料接触部分材质:SS310S，内腔及叶片抛光，处理能力:2t/h，设计温度>300°C,石墨盘根+迷宫密封，防爆等级:安全区，电机，变频。　　破碎卸料阀+螺旋输送机，破碎阀DN500. PN6.介质：锂辉石酸化熟料，破碎前≤30mm,破碎到≤8mm;物料堆密度850g/m³;介质流量20t/h;工作温度300℃。水平式螺旋输送机，长度6米，材质不锈钢。　　破碎阀+U型螺旋给料机，食品行业用，用螺旋给料机输送到破碎阀，然后调入混合机;物料是糖粉，在口袋中结块了，螺旋输送机大概长度6米，破碎后再混合，破碎得越细越均匀越好，进料口DN200的法兰，304材质，食品级抛光。　　食品级螺旋绞龙输送机(快拆易清洗)，DN250.绞龙输送机长度3米。物料接触部分材质为食用级SUS304.变频电机，粉尘防爆，物料名称：麦芽糖醇，颗粒物，40℃~50℃，物物料粒度10目，堆积密度0.82g/cm³。     《扫二维码-添加 陈经理 微信-咨询U型螺旋上料机》　　Partial customer requirements:　　Lithium battery negative electrode discharge rotary valve+U-shaped spiral feeder: 3t/h, size: DN250. main material: SUS304; Number of leaves: 16 pieces; Requirements for clearance between rotating blades and inner wall: 0.15-0.2mm; Power frequency motor: 1.1KW; 33 revolutions per minute, rated current: 2.6A; Motor: Anhui Wannan, reducer: Guomao reducer, new national standard second level energy efficiency IE4. IP55; Adopting a multi cavity design; Equipped with packing and oil seal; Sealing and gas locking; The gearbox of the reducer adopts a hard tooth surface; The shaft end seal must be reliable and free of powder leakage. The shaft end seal adopts graphite packing seal.　　Material: Lithium iron phosphate intermediate, particle size, 1mm~3mm, D50: 1mm, bulk density: 1100kg/m; Spiral feeder size 300. length 4 meters; Material contact part material: SS310S, inner cavity and blade polished, processing capacity: 2t/h, design temperature>300 ° C, graphite packing+labyrinth seal, explosion-proof level: safe zone, motor, frequency converter.　　Crushing discharge valve+screw conveyor, crushing valve DN500. PN6. medium: spodumene acid clinker, ≤ 30mm before crushing, ≤ 8mm after crushing; material bulk density 850g/m ³; Medium flow rate of 20t/h; The working temperature is 300 ℃. Horizontal screw conveyor, 6 meters in length, made of stainless steel material.　　Crushing valve+U-shaped screw feeder, used in the food industry, is conveyed to the crushing valve by the screw feeder, and then transferred to the mixer; The material is powdered sugar, which has clumped in the pocket. The screw conveyor is about 6 meters long and is crushed before mixing. The finer and more uniform the crushing, the better. The inlet has a DN200 flange, made of 304 material, and polished to food grade.　　Food grade spiral screw conveyor (quick disassembly and easy cleaning), DN250. The length of the screw conveyor is 3 meters. The material in contact with the material is food grade SUS304. variable frequency motor, dust explosion-proof, material name: maltitol, particulate matter, 40 ℃~50 ℃, material particle size 10 mesh, bulk density 0.82g/cm ³.

　　星型卸料器+双螺旋给料机，某水泥有限公司SCR脱硝项目，闭风器(电动锁气器)安装环境：进口接拉链机卸料口，物料名称：水泥窑灰;堆积比重约0.7-1.0t/m³;进料粒度粉料(<0.3mm)物料温度：正常运行温度300℃;接口尺寸DN500;连续工作制。旋转给料器需带锁气功能，保证出口连接设备的气体不会泄露，漏风率为<1%。卸料器带配对法兰、密封垫和紧固件，垫片采用金属包覆石墨垫片。根据ANSI标准, 且不低于中国标准进行油漆。油漆表面质量要求：除锈等级：2.5;高温油漆(耐温250°)，漆膜厚度150um。星型卸料器下面接双螺旋给料机，水平输送，距离3~4米，配可是窗口，方便后期查看物料流动情况，国茂减速机，皖南电机。　　Star shaped unloader+double screw feeder, SCR denitration project of a cement limited company, installation environment of air shutter (electric air lock): imported zipper machine discharge port, material name: cement kiln ash; The bulk density is about 0.7-1.0t/m ³; Feed particle size powder (<0.3mm) Material temperature: Normal operating temperature of 300 ℃; Interface size DN500; Continuous work system. The rotary feeder needs to be equipped with a gas lock function to ensure that the gas connected to the outlet equipment will not leak, and the air leakage rate is less than 1%. The unloader is equipped with matching flanges, sealing gaskets, and fasteners, and the gaskets are made of metal coated graphite gaskets. Paint according to ANSI standards and not lower than Chinese standards. Surface quality requirements for paint: Rust removal grade: 2.5; High temperature paint (resistant to 250 ° C) with a film thickness of 150um. The star shaped unloader is connected to a double screw feeder for horizontal conveying, with a distance of 3-4 meters. It is equipped with a window for easy viewing of material flow in the later stage. Guomao reducer and Wannan motor.　　双螺旋输送机(又称双轴螺旋输送机)是一种利用‌两根平行且旋向相反‌的螺旋轴同步旋转，通过齿轮啮合驱动推动散装物料轴向移动的连续输送设备。同等规格下，输送量通常为单轴螺旋输送机的‌1.5至2倍‌。‌‌　　Double helix conveyor (also known as double helix conveyor) is a continuous conveying equipment that uses two parallel and opposite helical shafts to rotate synchronously, and drives the axial movement of bulk materials through gear meshing. Under the same specifications, the conveying capacity is usually 1.5 to 2 times that of a single axis screw conveyor. ‌‌　　双螺旋输送机性能：　　双轴反向啮合‌：两根平行螺旋轴(一左旋一右旋)通过齿轮同步啮合转动，物料在叶片间交替推挤，‌有效防止卡死和堵料‌。　　输送量大：双轴双重推力机制使输送能力达到同规格单轴机型的‌1.5 至 2 倍‌，适合中短距离大流量连续作业 。　　输送兼混合搅拌‌：输送过程中天然产生‌混合、搅拌、破碎‌效果，适用于需均化物料的场景。　　优异密封性‌：全封闭槽体(除进出料口外)，‌防尘防溢、防污染‌，适合环保要求高的工况。　　多点卸料：支持‌中间多点装料与卸料‌，槽盖可拆卸便于检修清理。　　物料适应性广‌：特别适合粉状、小颗粒及需搅拌的物料(如水泥、化肥、饲料);若为粘性/易缠绕物料，可定制或选双无轴‌变种以增强抗缠绕性。　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。　　同得利公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　我公司始终坚持“质量第 一、用户至 上”的宗旨，服务于社会，诚信于业界，竭诚欢迎世界各地的业界好友光临指导，洽谈合作。　　Double helix conveyor performance:　　Dual axis reverse meshing: Two parallel spiral shafts (one left and one right) rotate synchronously through gears, and the material is alternately pushed between the blades, effectively preventing jamming and blockage.　　Large conveying capacity: The dual axis dual thrust mechanism enables the conveying capacity to reach 1.5 to 2 times that of single axis models of the same specifications, making it suitable for medium to short distance, high flow continuous operations.　　Conveying and mixing: During the conveying process, natural mixing, stirring, and crushing effects are generated, which is suitable for scenarios that require homogenization of materials.　　Excellent sealing performance: Fully enclosed tank body (except for inlet and outlet), dust-proof, spill proof, and pollution proof, suitable for working conditions with high environmental requirements.　　Multi point unloading: supports multi-point loading and unloading in the middle, and the groove cover is detachable for easy maintenance and cleaning.　　Wide material adaptability: particularly suitable for powders, small particles, and materials that require mixing (such as cement, fertilizers, and feed); If it is a viscous/easily entangled material, it can be customized or selected as a dual shaftless variant to enhance its resistance to entanglement.　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.　　On the basis of strengthening enterprise management, Tongdeli Company relies on technological progress to improve its technological content, advanced production and processing equipment, leading management concepts, high-quality employee team, effective quality assurance system and perfect after-sales service, providing reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.　　Our company always adheres to the principle of "quality first, customer first", serves society, and is honest in the industry. We sincerely welcome industry friends from all over the world to visit and guide us, and negotiate cooperation.

　　螺旋输送机又称为倾斜螺旋输送机、‌管式螺旋输送机、‌移动螺旋输送机、‌绞龙输送机或蛟龙输送机。　　螺旋输送机适应工况:　　主要用于输送颗粒状、粉状和小块物料，不适用于输送黏性大，易结块，易变质的物料，因为这些物料在输送时会粘结在螺旋叶片上，并随着旋转而不向前移动，或者在吊轴处形成物料的堵塞，而使螺旋输送机不能正常工作。　　螺旋输送机的工作原理：　　螺旋输送机的工作原理是利用物料的重力及其与槽体壁所产生的摩擦力。物料在中间轴承的运移是依靠后面前进着的物料的推力。所以，物料在输送机中的运送，完全是一种滑移运动。        【槽状螺旋输送机】　　《磨粉用槽式螺旋输送机-为磨粉机而设计》　　槽式螺旋输送机主要用于面粉研磨行业，尤其是输送谷粒、面粉和糠类副产品。螺旋输送机由碳钢制成，其表面经过食品级别的处理。还配备有齿轮减速箱和电机。可以提供经认证的防爆型号。【电话/微信咨询：陈经理18068546632】　　《不锈钢槽式螺旋输送机》　　标准 304L 或 316L 不锈钢设计，带有外部可调轴承密封件(填料密封、空气净化或气体净化密封等)的尾部轴承组件。有轻型和中型两种，所有产品均有防爆型号。【电话/微信咨询：陈经理18068546632】　　《管型螺旋输送机》　　轻载重型主要用于面粉和面粉研磨副产品的进料和输送。中等载重型主要用于动物研磨饲料产品如谷物、粗粉以及研磨副产品的输送。一般而言，管状螺旋输送机和喂料机在应用中能够减少物料残余量和保持物料颗粒原始尺寸。【电话/微信咨询：陈经理 18068546632】　　《槽式螺旋输送机》　　粉末喷涂，螺旋叶片焊接在中心管上，槽体有标准的法兰连接截面，标准长度。槽状螺旋输送机可为输送粉末或颗粒材料提供多种解决方案。宠物食品、塑料加工、肥皂、洗衣粉和清洁剂加工、动物饲料加工、木材加工、化学品、环境技术、水泥、石灰和石膏加工以及矿业。【电话/微信咨询：陈经理 18068546632】　　《动物副产品螺旋输送机》　　槽式螺旋输送机由碳钢制成，并且经过合适的表面处理(主要经过热镀处理)。配有满足需求的齿轮减速箱和电机。槽状螺旋输送机采用不间断运行设计，用于输送屠宰业副产品，比如骨头(整块或碾碎)、蹄、头或肥肉。【电话/微信咨询：陈经理 18068546632】　　《锥形单轴螺旋喂料机》　　锥形单轨螺旋喂料机主要用于面粉加工厂，拥有两个锥形入口螺旋和套管，确保同步卸料和喂料。减少了物料在进料槽的残留。锥形螺旋(方形截面)和槽体由碳钢制成，恒定的喂料速度，坚固设计，高卸料效率。【电话/微信咨询：陈经理 18068546632】　　《锥形双轴螺旋喂料机》　　双轴螺旋喂料机对于要求极高 效地从料箱或料斗卸料/喂料的用户而言是不错的选择。设计用于装卸非同质材料(木、碎屑、纸等)、面粉加工业材料(糠、面粉等)以及挂料材料(如锯屑、大豆等)。喂料面积大，避免了桥接，避免了偏析，即使是难于处理的物料也能保证持续喂料，可靠恒定的喂料速度，高度自清理，槽体清理方便，可以提供防爆型螺旋喂料机。【电话/微信咨询：陈经理 18068546632】　　《高温螺旋输送机》　　超重型槽式螺旋输送机或喂料机专为中高温和高温应用设计。高温螺旋输送机由碳钢或不锈钢制成，经过适当的表面处理。可完全满足输送或喂料要求，尤其是铸造厂、钢铁厂,炼钢厂、发电厂(粉煤灰处理)或干燥设备中的再生砂。【电话/微信咨询：陈经理 18068546632】　　《新拌混凝土用螺旋输送机》　　在混凝土预制行业中，输送机用于将新拌混凝土从浆叶式搅拌机输送到模子中。而以前的皮带输送机则有可能导致混凝土分离。为了保持混凝土均匀和减少驱动力，可以调整进料口部位的混合桨。通过调整桨的角度，可以改变混凝土的生产率。橡胶制槽底板的柔韧性使得螺旋与槽体之间的大块物料不会堵塞在槽体内。当槽底板磨损后，可以快速开合以进行清理和更换。【电话/微信咨询：陈经理 18068546632】                【管状螺旋输送机】　　《管式螺旋输送机》　　管状螺旋输送机和喂料机系统用途极广，可为输送粉末或颗粒材料提供各种标准的解决方案。可为各项应用提供不同型号的输送机或喂料机，比如混凝土生产(适用粉媒灰、填料粉尘、硅粉)、预混合建筑材料(干石膏、沙、水泥、添加剂)、玻璃加工(碳酸钙、苏打、沙等)、铸造厂(沙、膨润土)等。【电话/微信咨询：陈经理 18068546632】　　《不锈钢管式螺旋输送机》　　标准304L或316L不锈钢设计，不锈钢管状螺旋输送机为输送或喂入粉末或颗粒材料提供各种解决方案。对使用环境的要求：环境对物料无任何污染、绝 对清洁、绝 对防腐蚀。管状螺旋输送机尤其适用于环境技术、面粉和动物饲料加工、食品加工和包装、塑料和化学品以及医药行业。【电话/微信咨询：陈经理 18068546632】　　《食品级不锈钢管式螺旋输送机》　　不锈钢管式螺旋输送机是食品行业前沿的解决方案。确保设备的组件表面平滑，这就是物料残留极小的原因。适用于需物料不受任何污染和要求绝 对清洁以及耐腐蚀的应用。标准304L或316L不锈钢设计，易于维护，从管状输送机中取出螺旋方便。【电话/微信咨询：陈经理 18068546632】　　《超低物料残留管式螺旋输送机》　　内部无螺钉螺栓，方便输送机零件清理，同时降低了物料残留。残留在更大程度上是由螺旋轴线在外管底部方向的微小偏移所产生的二者之间的间隔引致。螺旋叶片和槽体的间隙不超过5mm。另一方面，螺旋与底板之间的轴向间隙为2.5mm。适合用于散装物料的输送和喂料，主要用于食品行业、塑料和化学制品处理，以及特定限 制范围内的制药行业。表面光滑(内部无螺栓螺母)可以方便、快速地从管式输送机壳中抽出螺旋。【电话/微信咨询：陈经理 18068546632】　　《单轴螺旋喂料机》　　一些粉末或颗粒材料流动性极差，以致无法用圆形排放孔式的锥体装置将其存储于料仓中，需要用更陡峭的椎体装置及椭圆形排放口将其存储于料仓中。单轴螺旋喂料机与料仓出口的形状相契合。料槽部分与管状部分相连接，可有效喂入材料以便进一步加工。有防爆型号可选。【电话/微信咨询：陈经理 18068546632】　　《精确喂料螺旋输送机》　　低转速 (SPS)，防磨材料制成的螺旋，主螺旋与精确喂料螺旋之间连接料斗，范围宽广，可以用于各种物料，包括高磨损性物料。精确喂料螺旋主要用作输送量大的主螺旋喂料机的补充。在接近设定的喂料量时，用接近开关将主螺旋喂料机关闭，进而用法兰连接在主螺旋出料端下方的精确喂料螺旋进行精确喂料，将物料从主螺旋的出料口输送到重量料斗内。【电话/微信咨询：陈经理 18068546632】　　《重载型管式螺旋输送机》　　主要用于间歇作业和连续作业情况，产品耐用和易于更换易坏零件。附加的进出料口，附加的观察窗。这类螺旋输送机常见于矿物加工、玻璃加工、铸造厂、水泥厂、石膏和石灰生产等应用以及矿业中。【电话/微信咨询：陈经理 18068546632】　　《水泥螺旋喂料机》　　主要用于下列物料的喂料和输送：混凝土生产厂的水泥和类似水泥的粉料，也可以用于其它建筑材料的加工过程中。粉末喷涂，外管包括焊接末端法兰、进料口、出料口，观察窗在进料口和中间吊挂轴承的下面。耐用，维护方便，进料口和出料口通用，安装快，高性价比。【电话/微信咨询：陈经理 18068546632】　　《容积计量式水泥螺旋喂料机》　　专为容积计量喂入水泥或类似材料而设计，产品配备大型入口料斗。压力开关一检测到进口料斗内无物料，ESV螺旋喂料机便会停止工作。【电话/微信咨询：陈经理 18068546632】　　《管式带状叶片螺旋喂料机》　　带式螺旋叶螺旋喂料机确保在特殊的石灰投加设备中将石灰均匀卸下和喂入溶解设备或微型喂料设备。考虑到实际应用情况，通常配有变速驱动。进料口下设有标准观察窗，进料速度从70到4500升/小时，物料流动平缓，喂料精确度高。【电话/微信咨询：陈经理 18068546632】　　《污泥用垂直螺旋输送机》　　有效输送不同种类的污泥　　当前，淤泥处理技术需要投入越来越多的相关设备设施，例如：搅拌机、污水处理设备等。对这些设备的喂料和卸料需要将淤泥提升到较高位置。保证了恒定的喂料速度和淤泥的进一步混合。考虑到腐蚀或磨损，为确保螺旋输送机耐用，可以选择碳钢或不锈钢材料，无味操作，清洗时间短，高性价比。【电话/微信咨询：陈经理 18068546632】　　《垂直螺旋输送机》　　垂直螺旋输送机系统包括两部分：一个水平螺旋喂料机，用于从料斗、料仓或其他的喂料机、输送机中接收物料;一个垂直螺旋输送机，将物料提升到一定高度。物料可以被卸载到一个高处料斗、一个或多个箱柜或料仓，或者传递到其他的输送机或输送系统。经过特殊设计的制造件、螺旋和轴承组件使得系统维护方便。【电话/微信咨询：陈经理 18068546632】　　《填料粉末螺旋喂料机和输送机》　　专为处理沥青厂的填料尘埃　　填料粉末螺旋喂料机和输送机专为满足沥青行业的主要要求而设计，用于固定式沥青厂喂入和输送冷热填料粉末。一端连接中 央粉末过滤器，另一端连接混合设备的存储料仓及称重料斗。连接法兰，可调节卡箍式管支架。【电话/微信咨询：陈经理 18068546632】　　《无轴螺旋输送机》　　输送不容易处理的物料　　物料靠无轴的重负载螺旋叶片输送，无轴螺旋叶片在槽体中被放置在特殊材料制成的耐磨衬垫上。可以纵向拆分的U型槽板由碳钢或304L/316L不锈钢制成。用于输送城市固体废料、筛渣和漂浮物、脱水淤渣、稠化淤渣或调和淤渣、包装食品、乳脂或膏以及肉类、鱼类、果蔬加工废料。应用的主要领域：一般用于废水处理、制糖厂废料、鱼类工业、固体废料处理、果蔬加工厂、饮料工业、造纸业、化工、食品业、肉类加工厂、屠宰场、餐馆、食堂和餐饮等。【电话/微信咨询：陈经理 18068546632】      《扫二维码-添加 陈经理 微信-咨询螺旋输送机》

　　主要结构：螺旋.壳体.端盖.减速机。　　特点：物料输送到指定高度，高 效快捷。　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟。　　主要使用行业：食品.制药.化工.锂电新能源行业.环保.水泥.电厂.钢厂等。　　Main structure: Spiral Shell End cap Reducer.　　Features: Material transportation to designated height, efficient and fast.　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene.　　Mainly used in the food industry pharmacy. Chemical industry Lithium battery new energy industry environment protection Cement Power plant. Steel mills, etc.

　　奥地利ANDRITZ安德里茨为客户提供多种型号、不同用途的锤片式粉碎机，能广泛应用于生物质燃料、动物饲料及膨化饲料的生产。　　喂料系统保证物料的均匀分布　　通过沿整个粉碎室长度进行喂料，能更精确地控制颗粒尺寸，使锤片和筛板负荷均匀，延长了易损件的寿命，也提高了单位产量。喂料器有多种配置：双绞龙和风选机组合式，喂料器或者风选机和喂料辊一体式的叶轮式喂料器。可依据不同粉碎原料的要求选用不同配置的喂料器。　　奥地利ANDRITZ安德里茨匀料绞龙输送机，绞龙式喂料器磨损或损坏怎么办?同得利可维修可替代。　　ANDRITZ Austria provides customers with various models and uses of hammer crushers, which can be widely used in the production of biomass fuels, animal feed, and puffed feed.　　The feeding system ensures uniform distribution of materials　　By feeding along the entire length of the crushing chamber, the particle size can be more accurately controlled, resulting in uniform load on the hammer and sieve plates, prolonging the life of vulnerable parts, and increasing unit output. There are various configurations for feeders: a combination of a twin-screw and a wind selection unit, or a blade type feeder with an integrated wind selection machine and feeding roller. Different configurations of feeders can be selected according to the requirements of different crushing materials.　　What should I do if the Austrian ANDRITZ uniform feeding screw conveyor and screw feeder are worn or damaged? Tongdeli is repairable and replaceable.　　Crumbler – type GRM　　The GRM is used for crumbling animal feed pellets of any kind.　　Capacity extending from 20 tph-60 tph　　Can process individual cereals and full recipes at high capacities and to your requested structure　　Provides uniform and precise feeding　　Secures perfect performance　　Long lifetime　　Low energy consumption　　Includes ANDRITZ testing tools for sample taking during operation

　　螺旋输送机是一种利用电机带动螺旋回转，推移物料以实现输送目的的机械。它能水平、倾斜或垂直输送，具有结构简单、横截面积小、密封性好、操作方便、维修容易、便于封闭运输等优点。　　A screw conveyor is a mechanical device that uses an electric motor to drive a screw to rotate and move materials to achieve conveying purposes. It can transport horizontally, obliquely, or vertically, and has the advantages of simple structure, small cross-sectional area, good sealing, easy operation, easy maintenance, and convenient enclosed transportation.　　螺旋输送机工作原理：　　当螺旋轴转动时，由于物料的重力及其与槽体壁所产生的摩擦力，使物料只能在叶片的推送下沿着输送机的槽底向前移动。物料的主要前进动力是来自螺旋叶片在轴向旋转时将物料沿叶片切线方向向上和向前的作用力。　　When the spiral shaft rotates, due to the gravity of the material and the frictional force generated between it and the groove wall, the material can only move forward along the bottom of the conveyor groove under the push of the blades. The main forward force of the material comes from the force exerted by the spiral blades when rotating axially, which moves the material upwards and forward along the tangent direction of the blades.　　螺旋输送机分类：【电话/微信咨询：陈经理18068546632】　　螺旋输送机从输送物料位移方向的角度划分，螺旋输送机分为水平式螺旋输送机和倾斜式螺旋输送机两大类型。　　From the perspective of material displacement direction, screw conveyors are divided into two types: horizontal screw conveyors and vertical screw conveyors.　　倾斜式螺旋输送机　　倾斜螺旋输送机的螺旋体的转速比普通螺旋输送机的要高，加入的物料在离心力的作用下，与机壳间产生了摩擦力，该摩擦力阻止物料随螺旋叶片一起旋转并克服了物料下降的重力，从而实现了物料的倾斜输送。该机输送量小，输送高度小，转速较高，能耗大。特别适宜输送流动性好的粉粒状物料,主要用于提升物料，提升高度一般不大于8米。　　The rotation speed of the spiral body of a vertical screw conveyor is higher than that of a regular screw conveyor. The added material generates frictional force between the machine casing under the action of centrifugal force, which prevents the material from rotating with the spiral blades and overcomes the gravity of the material's descent, thus achieving vertical transportation of the material. This machine has a small conveying capacity, a small conveying height, high rotational speed, and high energy consumption. Especially suitable for conveying powder and granular materials with good fluidity, mainly used for lifting materials, with a lifting height generally not exceeding 8 meters.　　水平螺旋输送机：　　当物料加入固定的机槽内时，由于物料的重力及其与机槽间的摩擦力作用，堆积在机槽下部的物料不随螺旋体旋转，而只在旋转的螺旋叶片推动下向前移动，如同不旋转的螺母沿着转动的螺杆作平移运动一样，达到输送物料的目的。该机便于多点装料与卸料，输送过程中可同时完成混合、搅拌或冷却功能。对超载敏感，易堵塞;对物料有破碎损耗，水平螺旋输送机的结构简单，便于安装和维修以及故障处理。适用于水平或微倾斜(20º以下)连续均匀输送松散物料。　　When the material is added to a fixed machine slot, due to the gravity of the material and its frictional force with the slot, the material piled up at the bottom of the slot does not rotate with the spiral body, but only moves forward under the push of the rotating spiral blades, just like a non rotating nut moving along the rotating screw, achieving the purpose of conveying the material. This machine is convenient for multi-point loading and unloading, and can simultaneously complete mixing, stirring, or cooling functions during the conveying process. Sensitive to overload and prone to blockage; The horizontal screw conveyor has a simple structure and is easy to install, maintain, and troubleshoot due to material crushing and loss. Suitable for continuous and uniform conveying of loose materials horizontally or slightly inclined (below 20 º).　　螺旋输送机应用范围：　　螺旋机广泛应用于各行业，如化工、建材、电力、冶金、煤矿炭、粮食等行业，适用于水平或倾斜输送粉状、粒状和小块状物料，如煤矿、灰、渣、水泥、粮食等，物料温度小于200℃。螺旋机不适于输送易变质的、粘性大的、易结块的物料。在混凝土搅拌站中,螺旋输送机的作用得到了很好的体现。　　Spiral machines are widely used in various industries, such as chemical, building materials, electricity, metallurgy, coal mine charcoal, grain, etc. They are suitable for horizontal or inclined conveying of powdered, granular, and small materials, such as coal mine, ash, slag, cement, grain, etc., with material temperatures below 200 ℃. Spiral machines are not suitable for conveying materials that are prone to spoilage, high viscosity, and clumping. The role of screw conveyors is well demonstrated in concrete mixing plants.　　螺旋输送机优点:【电话/微信咨询：陈经理18068546632】　　具有横截面尺寸小，结构简单，密封性能良好，中间多点装料和卸料，操作方便，成本较低等优点。　　It has the advantages of small cross-sectional size, simple structure, good sealing performance, multiple loading and unloading points in the middle, convenient operation, and low cost.　　公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，领 先的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。　　我公司始终坚持“质量第 一、用户至 上”的宗旨，服务于社会，诚信于业界，竭诚欢迎世界各地的业界好友光临指导，洽谈合作。           《扫二维码-添加 陈经理 微信-咨询产品》　　On the basis of strengthening enterprise management, the company relies on technological progress to improve technological content, advanced production and processing equipment, leading management concepts, a high-quality staff team, an effective quality assurance system, and perfect after-sales service to provide reliable guarantees for manufacturing high-quality products, greatly meeting the needs of various industries, and deeply trusted by customers.　　Our company always adheres to the principle of "quality first, customer first", serves society, and is honest in the industry. We warmly welcome friends from all over the world to visit and guide us, and negotiate cooperation.
