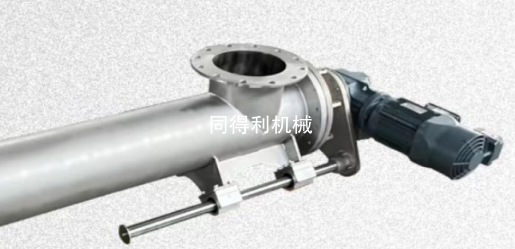

可原地抽出螺旋叶片清洗清理，清理完毕后螺旋杆推入，旋转定位螺栓即可。螺旋叶片设有多种形式，适用多种不同特殊物料;螺旋轴承采用多层保护系统，确保长期工作。

　　The spiral blade can be removed and cleaned in place. After cleaning, the spiral rod can be pushed in and the positioning bolt can be rotated. Spiral blades come in various forms and are suitable for different special materials; Spiral bearings adopt a multi-layer protection system to ensure long-term operation.

　　主要结构：螺旋杆.壳体.端盖.减速机.滑竿。

　　特点：快速拆卸.快速清理.快速检修.。

　　主要材质：不锈钢食品抛光304.316.310.等.钛合金.喷涂陶瓷.碳化钨.四氟。

　　主要使用行业：锂电池.化工.制药.食品行业等。

　　常州同得利机械厂拥有多年的研发生产/定制螺旋输送机、卸料阀旋转阀的经验，秉承质量第 一、用户至 上的原则。我们的螺旋输送机、旋转阀能够处理锂电池、钢厂、电厂、水泥、矿山、环保、塑料、化工、食品和医药等行业的各种颗粒、片状、块状物料、粘料、粉料、超微粉体等。

　　部分客户需求：

　　清洗型螺旋上料机：物料是淀粉，4-5m³/h，快拆可清洗，电机粉尘气体复合型防爆，内外抛光304.气密封，ExdIIBT4/ExtIIIBT130℃防护级。

　　可清理清洗，物料：硅胶粉料，DN200.滑杆式，120℃左右，耐高温，不锈钢材质，螺杆输送机长度3米。

　　滑杆式推拉螺旋输送机，水泥厂用，尺寸400.材质304.SEW减速机，IIICT4防爆变频控制电机。

　　滑杆快拆绞龙输送机，物料：聚丙烯酰胺，颗粒或粉状，进出口为DN200国标法兰，型式:滑杆抽拉快开结构，材质:304不锈钢:外表喷砂处理，SEW电机和国茂减速机。

　　Partial customer requirements:

　　Cleaning type spiral feeder: The material is starch, 4-5m ³/h, quick detachable and washable, motor dust gas composite explosion-proof, internally and externally polished 304. airtight seal, ExdIIBT4/ExtIIIBT130 ℃ protection level.

　　Cleanable and washable, material: silicone powder, DN200. Sliding rod type, around 120 ℃, high temperature resistant, made of stainless steel material, screw conveyor with a length of 3 meters.

　　Sliding rod push-pull screw conveyor, used in cement plants, size 400. material 304. SEW reducer, IIICT4 explosion-proof variable frequency control motor.

　　Sliding rod quick dismantling screw conveyor, material: polyacrylamide, particles or powder, inlet and outlet are DN200 national standard flanges, type: sliding rod pulling quick opening structure, material: 304 stainless steel: surface sandblasting treatment, SEW motor and Guomao reducer.

　　Main structure: Spiral rod Shell End cap Reducer. Slider.

　　Features: Quick disassembly Quick cleaning Quick maintenance.

　　Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene.

　　Main industry of use: lithium batteries Chemical industry pharmacy. Food industry, etc.

　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of screw conveyors and discharge valve rotary valves, adhering to the principle of quality first and customer first. Our screw conveyors and rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.
