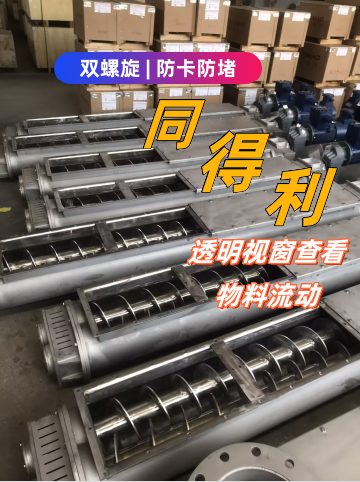

星型卸料器+双螺旋给料机，某水泥有限公司SCR脱硝项目，闭风器(电动锁气器)安装环境：进口接拉链机卸料口，物料名称：水泥窑灰;堆积比重约0.7-1.0t/m³;进料粒度粉料(<0.3mm)物料温度：正常运行温度300℃;接口尺寸DN500;连续工作制。旋转给料器需带锁气功能，保证出口连接设备的气体不会泄露，漏风率为<1%。卸料器带配对法兰、密封垫和紧固件，垫片采用金属包覆石墨垫片。根据ANSI标准, 且不低于中国标准进行油漆。油漆表面质量要求：除锈等级：2.5;高温油漆(耐温250°)，漆膜厚度150um。星型卸料器下面接双螺旋给料机，水平输送，距离3~4米，配可是窗口，方便后期查看物料流动情况，国茂减速机，皖南电机。

　　Star shaped unloader+double screw feeder, SCR denitration project of a cement limited company, installation environment of air shutter (electric air lock): imported zipper machine discharge port, material name: cement kiln ash; The bulk density is about 0.7-1.0t/m ³; Feed particle size powder (<0.3mm) Material temperature: Normal operating temperature of 300 ℃; Interface size DN500; Continuous work system. The rotary feeder needs to be equipped with a gas lock function to ensure that the gas connected to the outlet equipment will not leak, and the air leakage rate is less than 1%. The unloader is equipped with matching flanges, sealing gaskets, and fasteners, and the gaskets are made of metal coated graphite gaskets. Paint according to ANSI standards and not lower than Chinese standards. Surface quality requirements for paint: Rust removal grade: 2.5; High temperature paint (resistant to 250 ° C) with a film thickness of 150um. The star shaped unloader is connected to a double screw feeder for horizontal conveying, with a distance of 3-4 meters. It is equipped with a window for easy viewing of material flow in the later stage. Guomao reducer and Wannan motor.

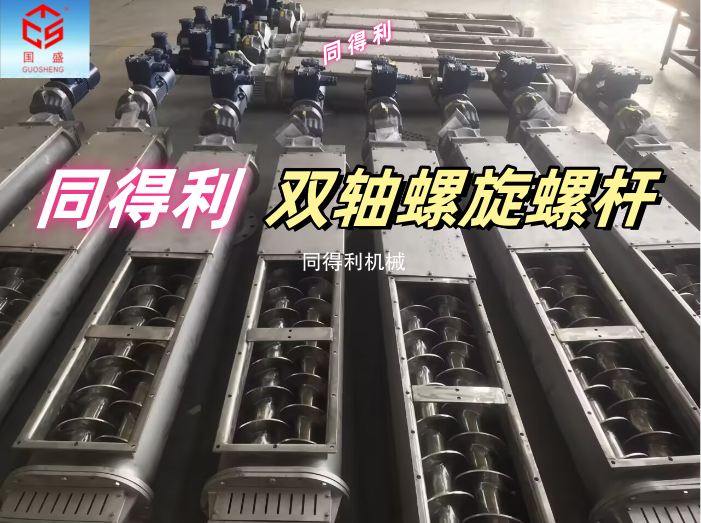

　　双螺旋输送机(又称双轴螺旋输送机)是一种利用‌两根平行且旋向相反‌的螺旋轴同步旋转，通过齿轮啮合驱动推动散装物料轴向移动的连续输送设备。同等规格下，输送量通常为单轴螺旋输送机的‌1.5至2倍‌。‌‌

　　Double helix conveyor (also known as double helix conveyor) is a continuous conveying equipment that uses two parallel and opposite helical shafts to rotate synchronously, and drives the axial movement of bulk materials through gear meshing. Under the same specifications, the conveying capacity is usually 1.5 to 2 times that of a single axis screw conveyor. ‌‌

　　双螺旋输送机性能：

　　双轴反向啮合‌：两根平行螺旋轴(一左旋一右旋)通过齿轮同步啮合转动，物料在叶片间交替推挤，‌有效防止卡死和堵料‌。

　　输送量大：双轴双重推力机制使输送能力达到同规格单轴机型的‌1.5 至 2 倍‌，适合中短距离大流量连续作业 。

　　输送兼混合搅拌‌：输送过程中天然产生‌混合、搅拌、破碎‌效果，适用于需均化物料的场景。

　　优异密封性‌：全封闭槽体(除进出料口外)，‌防尘防溢、防污染‌，适合环保要求高的工况。

　　多点卸料：支持‌中间多点装料与卸料‌，槽盖可拆卸便于检修清理。

　　物料适应性广‌：特别适合粉状、小颗粒及需搅拌的物料(如水泥、化肥、饲料);若为粘性/易缠绕物料，可定制或选双无轴‌变种以增强抗缠绕性。

　　材质：陶瓷、碳化钨、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢、碳钢等。

　　304(06Cr19Ni10)、316(06Cr17Ni12Mo2)、321(06Cr18Ni11Ti)、310S(06Cr25Ni20)、双相不锈钢2205(022Cr23Ni5Mo3N)、2507(022Cr25Ni7Mo4N)

　　行业应用：食品、制药、化工、锂电新能源行业、水泥、冶金、矿山、环保、钢厂、电厂等。

　　同得利公司在强化企业管理的基础上，依靠科技进步提高技术含量，先进的生产加工设备，优质的管理理念，高素质的员工团队，有效的质量保障体系和完善的售后服务，为制造高品质的产品提供可靠的保证，极大的满足了各行业的需求，深受广大客户的信赖。

　　我公司始终坚持“质量第 一、用户至 上”的宗旨，服务于社会，诚信于业界，竭诚欢迎世界各地的业界好友光临指导，洽谈合作。

　　Double helix conveyor performance:

　　Dual axis reverse meshing: Two parallel spiral shafts (one left and one right) rotate synchronously through gears, and the material is alternately pushed between the blades, effectively preventing jamming and blockage.

　　Large conveying capacity: The dual axis dual thrust mechanism enables the conveying capacity to reach 1.5 to 2 times that of single axis models of the same specifications, making it suitable for medium to short distance, high flow continuous operations.

　　Conveying and mixing: During the conveying process, natural mixing, stirring, and crushing effects are generated, which is suitable for scenarios that require homogenization of materials.

　　Excellent sealing performance: Fully enclosed tank body (except for inlet and outlet), dust-proof, spill proof, and pollution proof, suitable for working conditions with high environmental requirements.

　　Multi point unloading: supports multi-point loading and unloading in the middle, and the groove cover is detachable for easy maintenance and cleaning.

　　Wide material adaptability: particularly suitable for powders, small particles, and materials that require mixing (such as cement, fertilizers, and feed); If it is a viscous/easily entangled material, it can be customized or selected as a dual shaftless variant to enhance its resistance to entanglement.

　　Materials: ceramics, tungsten carbide, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel, carbon steel, etc.

　　304 (06Cr19Ni10), 316 (06Cr17Ni12Mo2), 321 (06Cr18Ni11Ti), 310S (06Cr25Ni20), duplex stainless steel 2205 (022Cr23Ni5Mo3N), 2507 (022Cr25Ni7Mo4N)

　　Industry applications: food, pharmaceutical, chemical, lithium-ion new energy industry, cement, metallurgy, mining, environmental protection, steel mills, power plants, etc.
