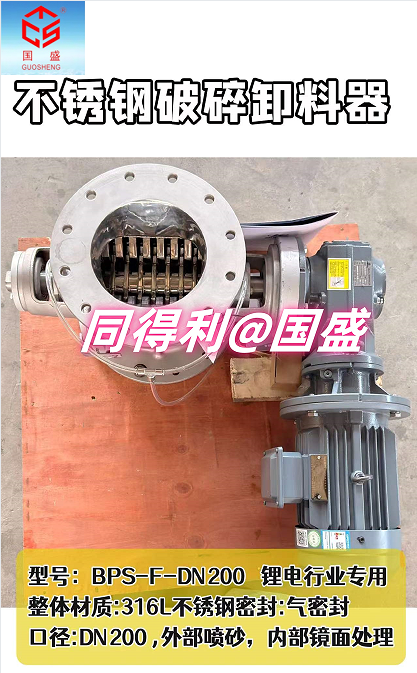

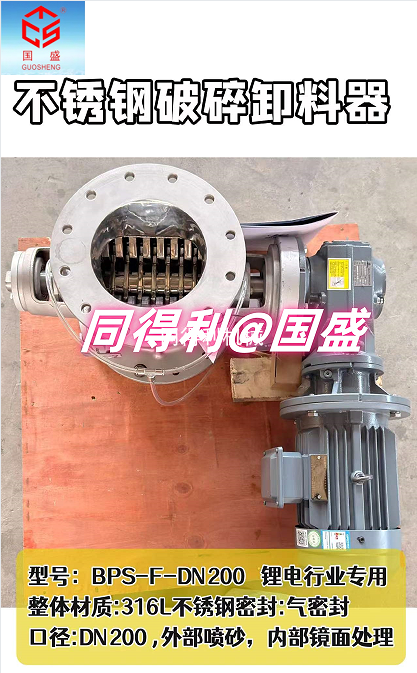

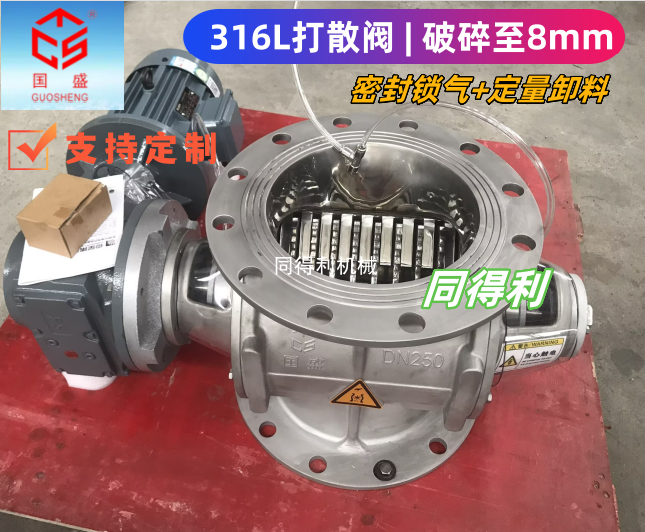

锂电行业专用打散破碎阀，整体材质：316L不锈钢，密封：气密封，口径：DN200.外部喷砂，内部镜面处理，型号：BPS-F-DN200.锂电负极材料结块打散，冷却釜出口破碎机：阀体：316L，破碎桨叶：316L，外表面：喷砂处理，规格：DN200-PN16(PL)，法兰标准：HG/T20592-2009(B)，国茂齿轮减速机，皖南工频电机1.5KW，二级能效，IP55.轴端气密封配B52调压阀，直连传动。

　　打散破碎阀工作原理：

　　动力传递‌：电机经减速机将高速低扭转为低速高扭，驱动破碎主轴或双轴组定向/反向同步旋转。

　　破碎作用‌：物料进入阀体后，被高速运动的破碎齿/刀片/爪组通过剪切、挤压、撕扯等方式分解块料，直至打散破碎到客户需求粒度，破碎齿多种形式，或可定制;单轴/双轴/多叶交错式，款式齐全。

　　协同控制‌：部分型号集成启闭调节功能，在破碎同时实现定量连续卸料，防止料仓搭桥、起拱、卡料。

　　安全保护‌：遇不可碎硬物时，可触发过载反转或停机，避免损坏。

　　刀片蕞佳的材质选择包括高碳钢、合金钢、高速钢和硬质合金。这些材质各有其独特的优点，适用于不同的工作条件和需求。

　　部分客户需求：

　　破碎阀DN500. PN6.介质：锂辉石酸化熟料，破碎前≤30mm,破碎到≤8mm;含水率≤6%,物料堆密度890g/m³;介质流量37t/h;工作温度300℃。

　　管道式破碎机采购技术要求：1、型号 ZXQ-F-DN200-DN200(气密封);2、两端盖密封形式采用气密封，配减压阀;3、与物料接触部位喷涂碳化钨，厚度≥0.2mm;4、减速机型号型号:KAF47-10.56-2.2KW-M1-A;5、电机型号：YE4-100L1-4 功率：2.2kw 电压：380V;6、接口法兰 DN200 PN10;7、整机材质：304 不锈钢;8、铜锌含量：≤1%。

　　物料：锂电池碳酸锂:4.5t/h，堆密度370kg/cm2.D90=13um。形式:对齿破碎机;规格:DN300;接触物料材质:S30408;框架:碳钢刷漆;设计温度:-15~60°C;设计压力:-2~3kPag;表面要求:内表面抛光Ra0.4.外表面Sa2;破碎粒径:碎前2-5cm，碎后8mm;设计产能:4.5t/h。

　　锂电破碎阀 正极块料破碎阀 负极块料破碎器 石墨电动破碎阀  镍包石墨破碎阀  锂电极片涂覆及隔膜涂层材料打散破碎阀  氮化硼打散阀 电解锰片打散卸料阀 锂电池碳酸锂电动破碎阀

　　电动破碎阀 破碎阀 卸料器破碎阀 管道破碎机 可拆卸破碎阀、清洗型破碎阀、拉杆式破碎打散阀、不锈钢破碎打散阀、碳化钨破碎旋转阀、锂电打散卸料器

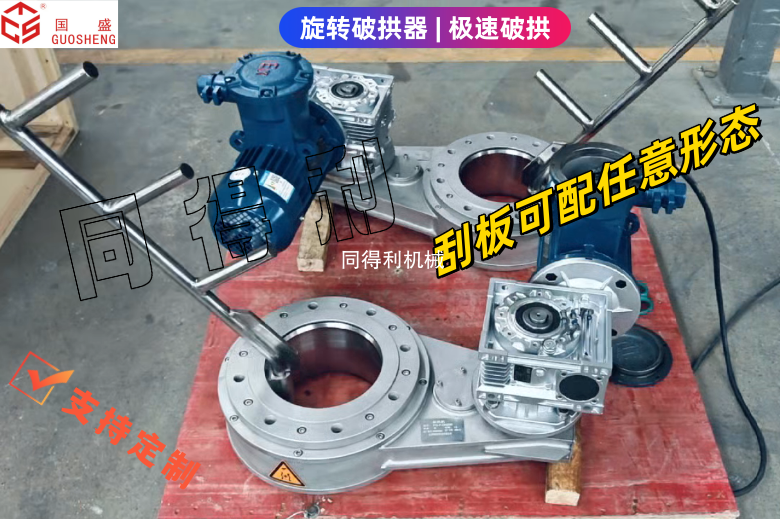

　　我公司同得利专 业生产(B)GFY、YJD系列关风机(关风器)、星型卸料器、DS系列电动锁气器、DN型旋转阀，快开清洗阀、防卡旋转阀、偏置防卡、风送直通式旋转阀、高温高压旋转阀、高温水冷式、刮板式自清洁、钛合金陶瓷碳化钨四氟特氟龙尼龙聚氨酯、破拱机、料仓刮料破拱器、打散破碎阀、螺旋输送机等产品。广泛应用于锂电池、食品、石油化工、制药、淀粉、油脂、化工干燥、粮食、饲料、塑料、除尘、冶金、环保、电子、煤炭、建筑、电力机械等行业设备上。用于固体粒料、粉料、超微粉体在气力输送及管网正负压状态下的卸料。

 《扫二维码-添加 陈经理 微信-咨询锂电行业专用打散破碎阀》

　　Lithium battery industry specific breaking valve, overall material: 316L stainless steel, seal: airtight seal, diameter: DN200. external sandblasting, internal mirror treatment, model: BPS-F-DN200. Lithium battery negative electrode material clumping and breaking, cooling kettle outlet crusher: valve body: 316L, crushing blade: 316L, outer surface: sandblasting treatment, specification: DN200-PN16 (PL), flange standard: HG/T20592-2009 (B), Guomao gear reducer, Wannan power frequency motor 1.5KW, secondary energy efficiency, IP55. Shaft end gas seal with B52 pressure regulating valve, directly connected transmission.

　　Working principle of dispersing and crushing valve:

　　Power transmission: The motor converts high-speed low torque into low-speed high torque through a reducer, driving the crushing spindle or dual axis group to rotate synchronously in a directional/reverse direction.

　　Crushing effect: After the material enters the valve body, it is broken down into blocks by high-speed moving crushing teeth/blades/claws through cutting, squeezing, tearing, and other methods until it is dispersed and crushed to the customer's required particle size. The crushing teeth come in various forms or can be customized; Single axis/dual axis/multi blade staggered design, with a complete range of styles.

　　Collaborative control: Some models integrate opening and closing adjustment functions to achieve quantitative continuous unloading while crushing, preventing silo bridging, arching, and jamming.

　　Safety protection: When encountering unbreakable hard objects, it can trigger overload reversal or shutdown to avoid damage.

　　The best material choices for blades include high carbon steel, alloy steel, high-speed steel, and hard alloy. These materials each have their unique advantages and are suitable for different working conditions and needs.

　　Partial customer requirements:

　　Crushing valve DN500. PN6. medium: spodumene acid clinker, ≤ 30mm before crushing, ≤ 8mm after crushing; moisture content ≤ 6%, material bulk density 890g/m ³; Medium flow rate 37t/h; The working temperature is 300 ℃.

　　Technical requirements for procurement of pipeline crusher: 1. Model ZXQ-F-DN200-DN200 (airtight seal); 2. The sealing form of the two end covers adopts gas sealing and is equipped with a pressure reducing valve; 3. Spray tungsten carbide on the contact area with the material, with a thickness of ≥ 0.2mm; 4. Gearbox model: KAF47-10.56-2.2KW-M1-A; 5. Motor model: YE4-100L1-4 Power: 2.2kw Voltage: 380V; 6. Interface flange DN200 PN10; 7. Material of the whole machine: 304 stainless steel; 8. Copper and zinc content: ≤ 1%.

　　Material: Lithium battery Lithium carbonate: 4.5t/h, bulk density 370kg/cm2. D90=13um. Form: Tooth crusher; Specification: DN300; Contact material material: S30408; Framework: Carbon steel painted; Design temperature: -15~60 ° C; Design pressure: -2~3kPag; Surface requirements: inner surface polished Ra0.4. outer surface Sa2; Crushed particle size: 2-5cm before crushing, 8mm after crushing; design capacity: 4.5t/h.

　　Lithium ion crushing valve, positive electrode block material crushing valve, negative electrode block material crusher, graphite electric crushing valve, nickel coated graphite crushing valve, lithium electrode sheet coating and diaphragm coating material dispersing crushing valve, boron nitride dispersing valve, electrolytic manganese sheet dispersing discharge valve, lithium battery, lithium carbonate electric crushing valve

　　Electric crushing valve, crushing valve, unloading device, crushing valve, pipeline crusher, detachable crushing valve, cleaning type crushing valve, pull rod crushing and dispersing valve, stainless steel crushing and dispersing valve, tungsten carbide crushing rotary valve, lithium battery crushing and unloading device

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening cleaning valves, anti jamming rotary valves, offset anti jamming, air delivery straight through rotary valves, high temperature and high pressure rotary valves, high temperature water-cooled, scraper self-cleaning, titanium alloy ceramic tungsten carbide PTFE nylon polyurethane, arch breaking machines, silo scraper crushers, fragmentation valves, screw conveyors and other products. Widely used in equipment for industries such as lithium batteries, food, petrochemicals, pharmaceuticals, starch, oils, chemical drying, grain, feed, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
